[Handy-Age]-Variable-Speed Bench Lathe (224BV/236BV/340BV) (MW0700-047)

Name: [Handy-Age]-Variable-Speed Bench Lathe (224BV/236BV/340BV) (MW0700-047)
Brand: Handy-Age
SKU: 139094125

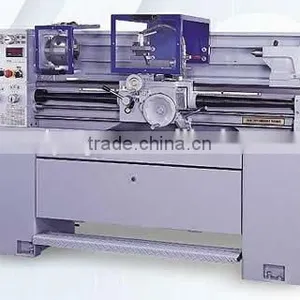

[Handy-Age]-Variable-Speed Bench Lathe (224BV/236BV/340BV) (MW0700-047) thumbnail-1

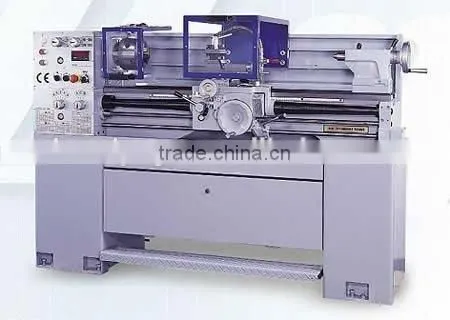

[Handy-Age]-Variable-Speed Bench Lathe (224BV/236BV/340BV) (MW0700-047) photo-1

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Turning Center

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Handy-age Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

To be advised

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Turning Center

CNC or Not Normal

Place of Origin Taiwan, China

Brand Name Handy-Age

Model Number MW0700-047

Item: Variable-Speed Bench Lathe (224BV/236BV/340BV) (MW0700-047)

Specification

MODEL : MW0700-047		224BV	236BV	340BV
Nominal Size	Swing over Bed	306mm (12in)	306mm(12")	330mm(13")
	Swing over Cross Slide	186mm(7-5/16")	186mm(7-5/16")	210mm(8-5/16")
	Height of Center	153mm(6")	153mm(6")	165mm(6-1/2")
	Distance between Center	610mm(24")	915mm(36")	1000mm(40")
Bed	Width of Bedway Gap Type	190mm(7-1/2")	190mm(7-1/2")	190mm(7-1/2")
	Total Length of Bed	1220mm(48")	1525mm(60")	1625mm(64")
	Swing over Gap	445mm(17-1/2")	445mm(17-1/2")	470mm(18-1/2")
	Length of Gap	240mm(9-1/2")	240mm(9-1/2")	240mm(9-1/2")
	Width in front of Face Plate	150mm(6")	150mm(6")	150mm(6")
Spindle	Spindle Nose Mounting	D1-4" Camlock
	Spindle Bore	40mm(1-9/16")
	Taper of Spindle Bore	M.T.#5
	Number of Spindle Speeds	2 steps for variable speed change
	Range of Spindle Speeds	40-2000RPM for variable speed change
Tail Stock	Total Travel of Tailstock Barrel	100mm(4")
	Taper in Tailstock Barrel	M.T.#3
	Diameter of Barrel	40mm(1-9/16")
Tool Slide	Total Travel of Cross Slide	170mm(6-3/4")
	Total Travel of Top Slide	90mm(3-1/2")
	Max. Size Cutting Tool	13mm(1/2")
Threads	Lead Screw Diameter & Pitch	Dia. 22mm Pitch 4mm 7/8" 8 TPI
	Metric Threads	0.5-10mm (21Nos) for metric system/0.5-12mm (33Nos) for inch system
	Inch Threads	3-24 TPI (8Nos) for metric system/ 2-56 TPI (34Nos) for inch system
Feeds	Feed Rod Diameter	Dia. 19mm(3/4")
	Range of Longitudinal Feeds	0.040-0.800mm/Rev. (21) for metric system/0.0016-0.0460"/Rev. (25) for inch system
	Range of Cross Feeds	0.020-0.0400mm/Rev. (21) for metric system/ 0.0005-0.0150"/Rev.(25) for inch system
Motor	Main Spindle Motor	2HP 1.47KW	2HP 1.47KW	3HP 2.2KW
Motor	Coolant Pump Motor	1/8HP 0.1KW	1/8HP 0.1KW	1/8HP 0.1KW
Weight & Packing Size	Machine Net Weight	500Kgs	550Kgs	600Kgs
	Gross Weight	620Kgs	670Kgs	720Kgs
	Crate Dimension (LxWxH)	59"x30"x60"	71"x30"x60"	75"x30"x61"

The feed road and hand cross automatic feeding systems
The feed road and hand-wheel for apron are equipped with adjustable safety overload slipping clutch to ensure proper cutting load
Lathe equipped with electro brakd and foot brake giving rapid braking
Tool cabinet mounted between two floor stands accompanied with lock can be put in all accessories and tools, safe and administrate conveniently
Outside shape design under entirely consideration, neat and beautiful outlook,all control knobs are located on the front of headstock, control easily
Swing over Bed: 330mm(13"), 356mm(14")
Distance between Center: 610mm(24"), 915mm(36"),1000mm (40")
Swing over Gap: 490mm(19-1/4")
Spindle Bore: 40mm(1-9/16")
The product pictures are for your reference only: final spec & accessories based on formal quotation
