automatic belt dryer
Automatic Mesh Belt Conveyor Dryer
Description of Automatic belt dryer
Automatic belt dryer is a batch, continuous production of drying equipment, mainly for better ventilation sheet, strip, dry granular materials, such as: preserved fruit, pepper, potato chips, grain straw, wood, etc., the main heating electric heating, steam heating, hot air heating.
The main principle of Mesh belt dryer is lay material even on the net, network with the using 12-60 steel mesh belt, drag from the transmission from moving in the dryer, hot air in the material flow through the inter- However, humidity and water vapor from the exhaust hole, so as to achieve the purpose of drying, box length from the combination of the standard segment, in order to save space, can be dried into a multi-layered system, a common two-compartment three, two room five-story, length 6-40m, the effective width of 0.6-3.0m.
Technical data of Automatic belt dryer
Model | HJWD6 | HJWD8 | HJWD10 | HJWD12 | HJWD16 | HJWD20 | HJWD24 | HJWD30 | |
Width of belt (mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 | |
Length of Drying (m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 | |
Length of feeding (m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | |
Length of transmission (m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | |
Drying area (m2) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 | |
Layer | 1-5 | ||||||||
Distance of each layer (mm) | 400-600 | ||||||||
Carrying capacity | 90-200 Kg/m2 | ||||||||
Working temperature | Carbon steel ≤400 C°, Stainless steel≤600 C° | ||||||||
Evaporation intensity | 5-20kg /m2.h | ||||||||
Source of heat | Hot air, electricity, steam | ||||||||
Running speed | 0.06-1m/min | ||||||||
Power of transmission (Kw) | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 | |
Corollary equipment | Belts, Air heater, Dust Collector, Blower | ||||||||

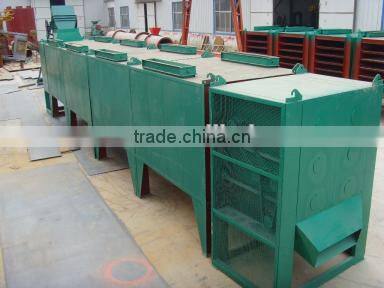

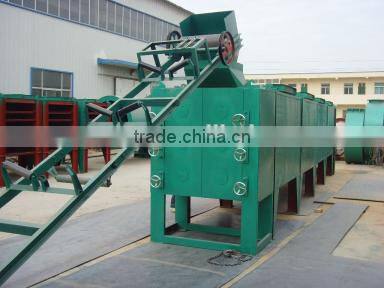

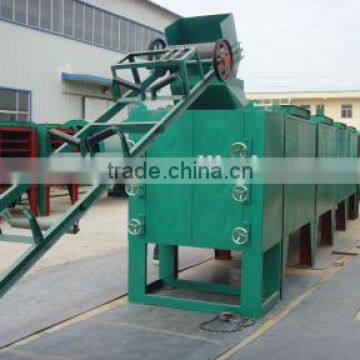

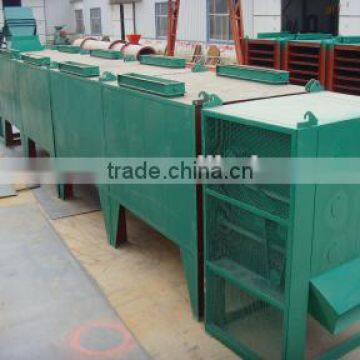

Pictures of Automatic belt dryer
| Package and Shipping | ||||||
| Delivery time | Within 5-7 days after receiving clients' payment | |||||
| Payment Terms | T/T L/C Western Union D/P D/A Escow Paypal | |||||
| Packing | wooden box free of fumigation | |||||
| Quality Gurantee: | Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers | |||||
| Our service | ||||||
| 1 Qualtiy Gurantee | 1 years guanrantees for each machine | |||||
| 2 Pre-Testing before forwarding | All machines will be pre-tested to make sure it will be received | |||||
| 3 Operation Video and instruction | We will provide you operation video and detailed instructions to install and you can make full use of the machine | |||||
| 4 Full Techinical service | Engineer is ready to provide you our full-process tracing | |||||
| 5 24hours emergency phone: | 008618638799110 WHATAPP:008618638799110 | |||||
| Our Company | ||||||
| 1 Manufacturer for Automatic belt dryer | ||||||
| 2 Alibaba Assessed Gold Supplier | ||||||
| 3 100% Quality control before forwarding | ||||||
| 4 Competitive price withe best quality and service | ||||||
FAQ:
1 Are you manufacturer ?
Yes we are the manufacturer and welcome to visit our factory
2 Can you change the machine voltage as our request?
Yes we can change the machine voltage as customers’ request
3 How about your after-sale service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4 Warranty time of your machine?
1 years warranty time except for consumable spare parts
5 How about delivery time of your machine?
Generally it needs 5-7 days, for big machines or producing line, it will be much longer but within our negotiated delivery time
