Organic Fertilizer making machien line prices--3.5t/h
Description of Organic Fertilizer making machien line prices--3.5t/h :
SN |
Name |
Model No |
Unit price |
Quantity |
1 |
Double roller |
PCG200*100 |
2630 |
1 |
2 |
Horizontal Fertilizer Mixer |
WT-8 |
2920 |
1 |
3 |
Disk pellet machine |
ZL-25 |
4230 |
2 |
4 |
Belt converyor |
8*0.5 |
1420 |
4 |
5 |
Drying Euiqpment |
1.5*15 |
31,180 |
1 |
6 |
Speration Screen |
1.2*4 |
3920 |
1 |
7 |
Packing machine |
WT-p |
5880 |
1 |
1>Double Roller crushing machine
Double roller crusher is widely used in the field of beneficiation, metallurgey ,coking chemical industry,building materials,waste metal and refractory materials . It has a superior effect than common grinding machines in producing building materials such as pisolites and pea gravels.
Model |
WT-PG200*100 |
Roller Diameter(MM) |
200 |
Roller Length(mm) |
100 |
Roller Rotary Speed(r/min) |
400 |
Charge Granularity(mm) |
<10 |
Discharge Granularity(mm) |
0-4 |
Output(t/h) |
4-8 |
Motor(kw) |
1.5 |
Weight(kg) |
150 |
2>Horizontal Fertilizer Mixer
Horizontal Fertilizer Mixing Machine has been developed recently and adapts to over of fertilizers and additive 2 kinds fertilizer. It can mix fertilizers fully and uses novelty rotor configuration that can adjust the gap to nearly zero between rotor and shell. The machine can pulverize heave matter and use conveniently.
Model |
Size |
Output(t/h) |
Motor(kw) |
WT-8 |
800×1800 |
5t |
7.5kw |
3> Disk pellet machine
This machine is suitable for the material that have 10-30% nutrient.
And have many characteristic such as: high rate, round grain, easy to operate and maintain. Stable moving on the traps of reducer and motor extend the life span of the machine.
Model |
Pan diameter |
Pan side height |
Adjustment Range of obliquity |
Volume (m3) |
Rotation speed r/m |
motor |
output |
reducer |
WT-ZL 25 |
2500 |
500 |
35-55° |
2.5 |
13.6 |
7.5kw |
1-2t/h |
BW33-23 |
4>Belt Conveyor
Strap Conveyer can convey powder granule nubbly material and bagged object ,such as coal , gravel , sand .cement , fertilizer and food supplies and so on .The temperature of conveyed objects is below 60 .According to the need of different users we produce different converyer longth and installation made ,conveying can use electricity running canister or diving equipment with driving frame .
Belt conveyer : 8000*500mm
Motor: 3KW
5> Drying and cooling machine
This drier is called rotating tube drier which is used to dry the limestone powder, slag, coal powder, husk, hay, sawdust, etc. it is composed of circumgrating body, rising flitch, gearing, supporting equipment, airproof loop, etc. most importantly. It possesses high productivity. High efficiency, convenient operation, etc.
Model |
Diameter mm |
Length m |
Gradient % |
Rotating Speed r/h |
Power kw |
1.5*15m |
1500 |
15 |
3-5 |
12 |
15 |

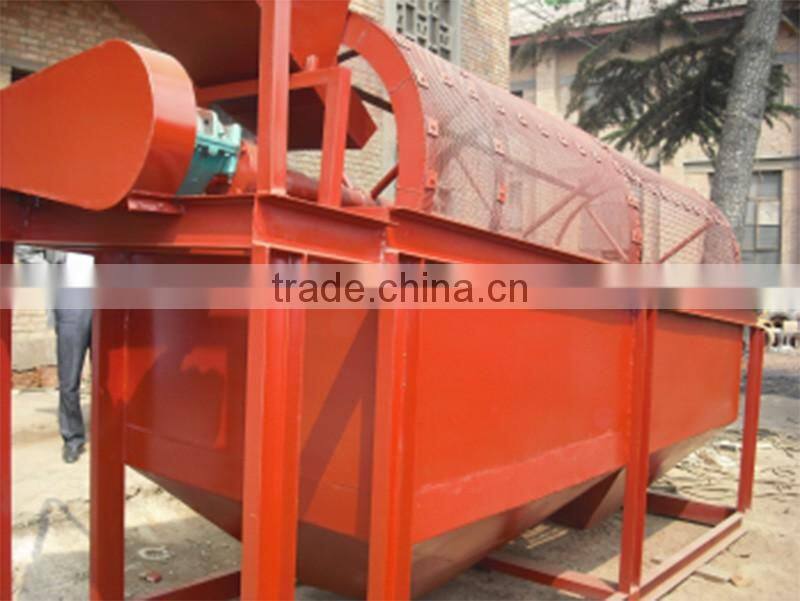

6> Separating Screen
Separating Screen Machine is commonly used fertilizer production equipment, mainly for products and materials back to the separation but also to achieve the finished grade, make the product even classification using modular screen, ease of maintenance and Replacement of the aircraft structure Is simple, convenient operation, a smooth operation.
Model |
Shell (mm) |
Rotation Speed |
Slope |
Power |
capacity |
Outsize |
|
|
Diameter |
Length |
(R/M) |
Degree |
(KW) |
(T/H) |
(MM) |
WT-GS1.2*4.0 |
1200 |
4500 |
17 |
2-2.5 |
4 |
3-5 |
5700*1600*2400 |

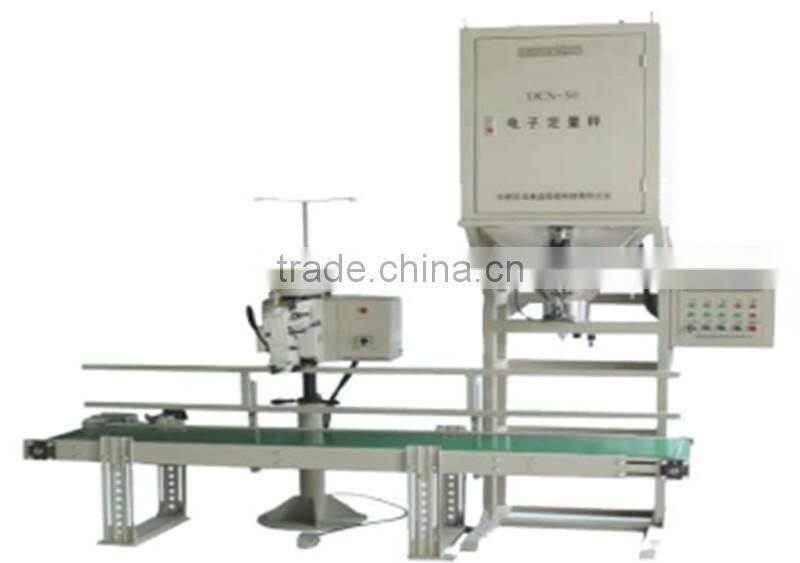

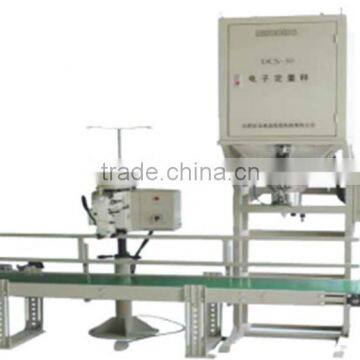

7> Electronic Packing Machine
Used imported high-precision sensor, high intelligent weighing control instrument, and measurement of high precision and stale. Automatic tracking, the procedure and alarm. simulation automatic detection, the real fault diagnosis, convenient, maintenance and P packed several automatic statistics, with RS485 serial port, printer interface, and computer communications, data printing.Pheumatic used import structure, import and export of cylinder pressure
Adjustable, more reliable, non-polluting.Used stainless steel to avoid anti-corroding. electrical overall counter sealed to prevent fertilizer dust falling into electrical to, electrical protective effects. Safety design, destructive components, electrical instrumentation has security protection to ensure the safer of equipment and body.
1.Delivery time: Within 5-7 days after receiving clients' payment
2.Payment Terms :T/T L/C Western Union D/P D/A Escow Paypal
3.Packing: Wooden box free of fumigation
4.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers
1. Qualtiy Gurantee :1 years guanrantees for each machine
2. Pre-Testing before forwarding :All machines will be pre-tested to make sure it will be received
in good condition
3. Operation Video and instruction :We will provide you operation video and detailed instructions to install and you can make full use of the machine
4. Full Techinical service :Engineer is ready to provide you our full-process tracing
and instruction "
1.Alibaba Assessed Gold Supplier
2.100% Quality control before forwarding
3.Competitive price withe best quality and service
1. Are you manufacturer ?
Yes we are the manufacturer and welcome to visit our factory
2. Can you change the machine voltage as our request?
Yes we can change the machine voltage as customers’ request
3. How about your after-sale service?
Our engineer can go outside to installand train your workers to operate the full machine line.
4. Warranty time of your machine?
1 years warranty time except for consumable spare parts
5. How about delivery time of your machine?
Generally it needs 10-15 days,for big machine or producing line,it will be much longer but wthin our negotiated delivery time
