New pattern double roller extruding granulator
Description of double roller extruding granulator squeezing granulator machine
double roller extruding granulator squeezing granulator is new generation of granulation equipment which developed by our company.Itadopt nodrying/normaltemperaturetechnology to granulating,onceforming,with smallinvestment,quick profit, good economic returns, etc.
Application of double roller extruding granulator squeezing granulator machine
@key squeezing granulator is widely used for granulation of various materials,such as compound fertilizer material, medicine, chemical industry, fodder etc.Can produce a variety of concentrations, various types compound fertilizer(including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer etc).Especially for rare earths,potash, ammonium bicarbonate series compound fertilizer.Also the promotion program of environmental projects.
Fearure of double roller extruding granulator squeezing granulator
A. small investment,quick profit,good economic returns
B. saving energy,reducing consumption,no "three wastes" discharge
C. stable operation,reliable operation,easy maintenance,wide raw material adaptability
D. granulating,molding,screening into one machine,make finished product with good appearance,easy to operate
E. main components such as roller body adopts new type metal to refine with anticorrosive, abrasion resistance, shock resistance characteristics
F. bearing bracket select excellent anticorrosion casting parts for whole body, greatly improve service life of rolling bearing and main shaft
G. transmission part adopts two-input transfer mode, not only improve input power ratio, but also ensure the lubrication and sealing performance of transmission gear
H. compact structure, good stability, good sealing, low noise, easy operation and maintenance
♦ Technical Parameters of double roller extruding granulator squeezing granulator
Model |
YK100 |
YK200 |
YK300 |
YK400 |
YKS100 |
YKS200 |
Production(t/h) |
1~1.5 |
1.5~2.5 |
2.5~3.5 |
3.5~4.5 |
1~2 |
1.5~2.5 |
Power |
15KW |
18.5KW |
30KW |
45KW |
15KW |
18.5KW |
Pressure roller spec |
Φ150×220 |
Φ150×300 |
Φ186×300 |
Φ300×300 |
Φ150×220 |
Φ150×300 |
Feed size |
0.5mm |
0.5mm |
0.5mm |
0.5mm |
0.5mm |
0.5mm |
Finished product spec |
Φ2.5~Φ10 |
Φ2.5~Φ10 |
Φ2.5~Φ20 |
Φ2.5~Φ30 |
Φ2.5~Φ10 |
Φ2.5~Φ20 |
Speed reducer model |
ZQH350 |
ZQH400 |
ZQH400 |
ZQH500 |
|
|
Material moisture content |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
2%~5% |
2%~5% |

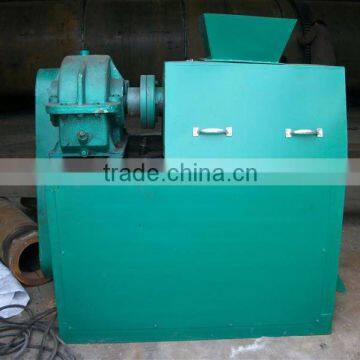

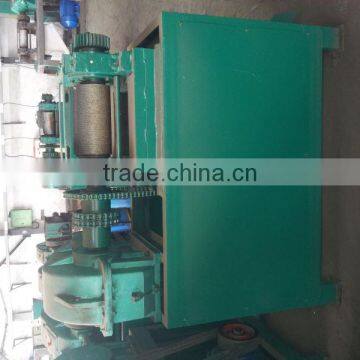

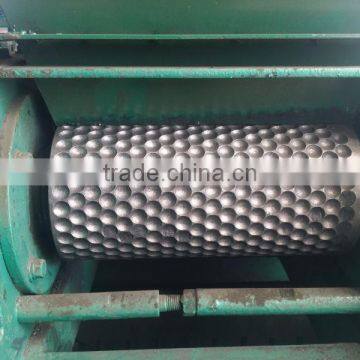

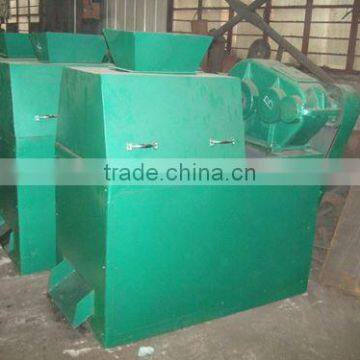

Photos of double roller extruding granulator squeezing granulator machine
Finished Product of double roller extruding granulator squeezing granulator
Choosing us is your best choice~Welcome your inquiry~
