Product Details
| Brand Name | HarshMet | Place of Origin | China | |
| Model Number | SFT Series | Material | Other, EPR Rubber | |
| Type | Insulation Tape | Application | High Voltage | |
| Rated Voltage | 35KV/mm | Tensile Strength | 3.0Mpa |
Product Description

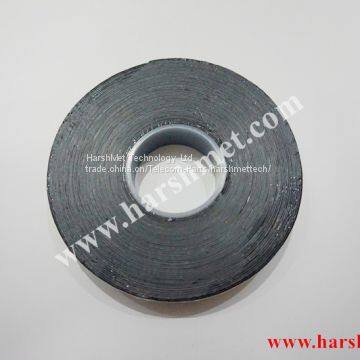

HarshMet HSA-71 self amalgamating EPR tape is designed to provide a long-term environmental seal for main feeder, jumper and antenna connections. Once installed, the self amalgamating tape provides a water tight seal around the connection eliminating the need for traditional butyl tape and mastic. HSA-71 finds wide applications in telecommunications and electrical industry and provides high reliability and work highly stable in harsh environment.
Sizes
38.1mm×4.57m×0.76mm
38.1mm×4.57m×0.99mm
Self Amalgamating Tape
Part No. | Description | Kit Qty. |
HSA-71 | Self Amalgamating Tape | Individual Roll |
38.1mm × 0.76mm× 4.57m | ||
HSA-SACK | Self Amalgamating Connector Kit | Kit of 2 Rolls |
38.1mm × 0.76mm× 4.57m | ||
HSA-71T | Self Amalgamating Connector Kit | Individual Roll |
38.1mm × 0.99mm × 4.57m | ||
Number of Connections Accommodated
Size | Per Roll | Per Kit |
1/2" to 1/2" | 3 | 6 |
1/2" to 7/8" | 2 | 4 |
1/2" to 1-1/4" | 1 | 2 |
1/2" to 1-5/8" | 1 | 2 |
Technical Data
Properties | Typical Value | Test Method |
Thickness | 0.76mm | ASTM D 4325 |
Tensile Strength | 3.0MPa | ASTM D 4325 |
Elongation at break | 800% | ASTM D 4325 |
Fusion | Pass | ASTM D4388 |
Ozone Resistance | Pass | ASTM D 4388 |
UV Resistance | Pass | ASTM D 4388 |
Dielectric Strength | 36KV/mm(Short Time Method) | ASTM D149:64 |
Dielectric Constant | 2.8 | ASTM D 150:74 |
Volume Resistivity | ≥5x1014Ω?Cm | ASTM D 150:74 |
Water Absorption | 0.05%(24Hrs) | ASTM D 570:63 |
Corrosion Liability | None | BS3924:78 |
