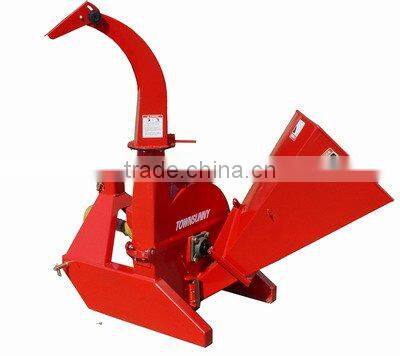

BX42S small wood chipper
1.Specification of BX42S Small wood chipper
1.Well-known In Europe
2.Certification:CE Standard
3.Low Shock And Noise
4.Change Color Upon Request
5.Match With Various Kinds Of Tractors
6.Have Hinged Feed Hoppers
7.Have 4 Double Sided, Hardened Tool Steel, Presharpened Rotor Blades and 1 Anvil Blade
8.A Diversity Of Raw Material
9.Low Power Consumption
10.Used For Cutting Logs, Branches, Slab, Bamboo, Cotton Stalk, And Other No-wood Fiber Stem Into Small Chips Which Are The Essential Material For The Production Of Particle Board, Density Board, Paper Pulp And Biomass Raw Material For New Energy Industry
11.High Welding Processes And Surface Quality
12.Four Hardened Tool Steel Knives are designed to Draw Material into the Cutting Chamber, providing the Self Feeding Feature
13.Shear Bolt Protected, Direct PTO Drive provides Maximum Torque Transfer to the Rotor
14.Chipper is suitable for 540 or 1000RPM operation
15.Wood Chipper Have BX, BXR Series And So On
Model |
BX42 |
BX62 |
Driving system |
Direct drive, pto w/shearbolt |
Direct drive, pto w/shearbolt |
Chipper capacity |
4” diameter,(takes up to10” slab) |
6” diameter,(takes up to12” slab) |
Chipper housing opening |
4"×10" |
6.5” ×10" |
Rotor size |
25" Diameter X 1/2" Thick & weighs 75lbs |
30" Diameter X 3/4" Thick & Weighs 197lbs |
Number of rotor knives |
4 |
4 |
Knife Type |
Hardened tool steel |
Hardened tool steel |
Rotor weight |
110lbs |
180lbs |
Feeding system |
mechanical |
mechanical |
Dimensions(hopper folded) |
40”L×42" ×60"H |
50”L×52" ×74"H |
Hopper opening |
20” ×20" |
25” ×25" |
Discharge hood rotation |
360 |
360 |
Discharge hood height |
60” |
74” |
Rated RPM |
540-1000 |
540-1000 |
Suitable tractor HP |
18-50 |
30-100 |
Weight |
425lbs |
770lbs |
2.Products show of small wood chipper
chipped wood by small wood chipper
3.CE of small wood chipper
4.Location of our factory
5.Factory show
6.Contact us
