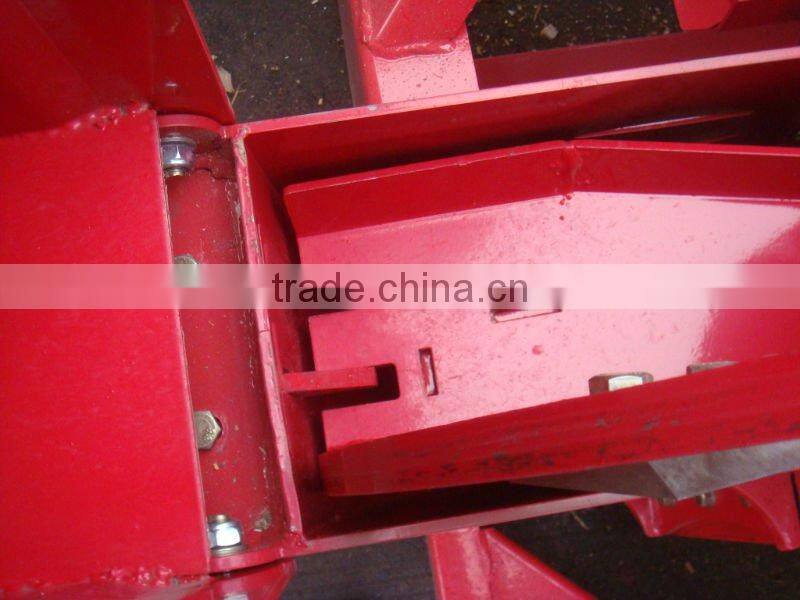

Self-feeding hydraulic wood chipper with CE
| TOWNSUNNY BX Series Wood Chipper Specifications | ||
| Model | BX42S | BX62R |
| Drive System | Direct drive, pto w/shearbolt | Direct drive, pto w/shearbolt n/a |
| HP Range | 18-50 | 30-100 |
| Engine | n/a | n/a |
| Chipper capacity | 4" Diameter, (takes up to 10" slab) | 6" Diameter, (takes upt ot 12" slab) |
| Chipper Housing Opening | 4" x 10" | 6 1/2" x 10" |
| Rotor Size | 25" | 30" |
| Number of Rotor Knives | 4 | 4 |
| Knife Type | Hardened Tool Steel | Hardened Tool Steel |
| Rotor Weight | 110 lbs | 180 lbs |
| Feeding System | Self or Hydraulic | Self or Hydraulic |
| Dimensions (hopper folded) | 40" L x 42" x 60" H | 50"L x 52" x74" H |
| Hopper Opening | 20" x 20" | 25" x 25" |
| Discharge Hood Rotation | 360 | 360 |
| Discharge Hood Height | 60" | 74" |
| Rated RPM | 540-1000 | 540-1000 |
| Weight | 425lbs | 1070lbs |

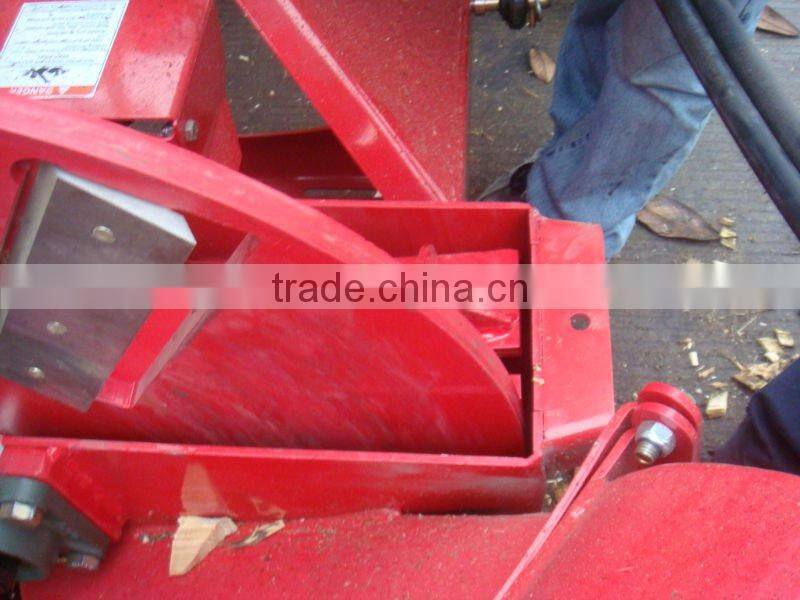

Rotor
At the heart of the Townsunny BX Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 6” diameter tree trunks.
Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper
Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.

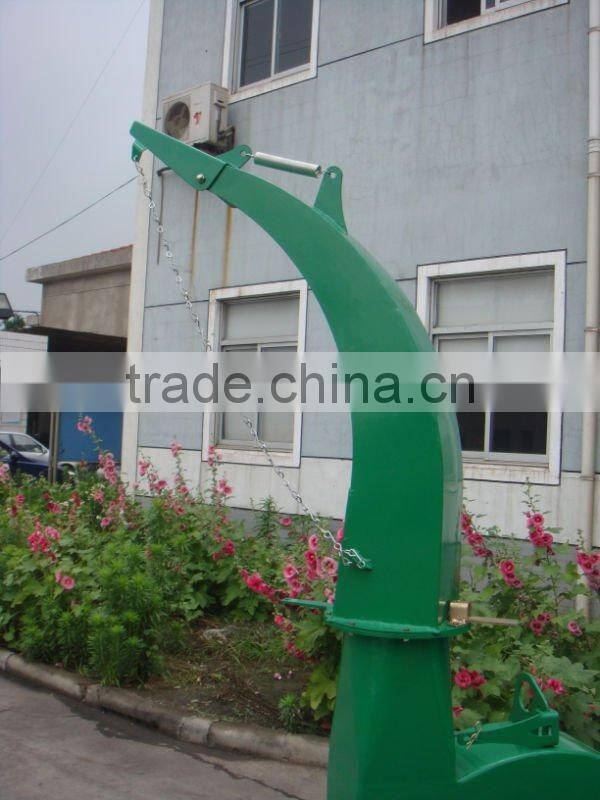

Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance

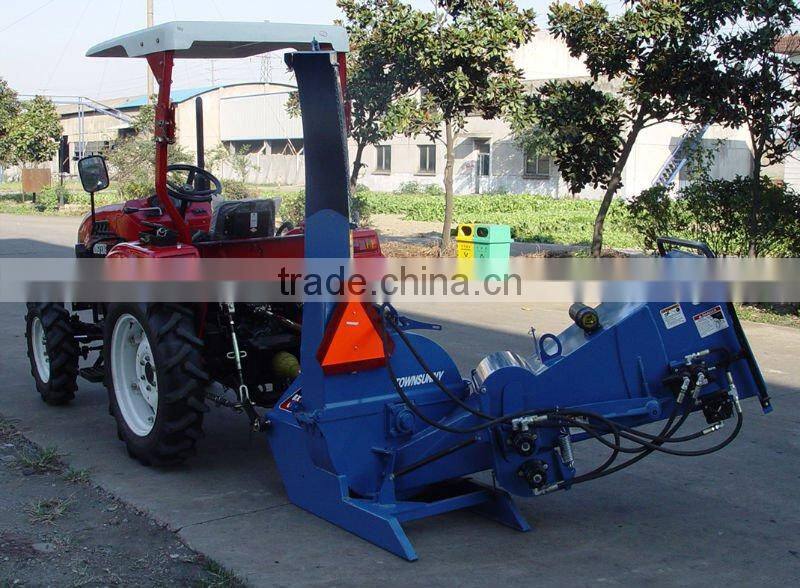

Mounting Configurations
There are three different mounting configurations available for the BX Wood Chipper; A three point hitch, skidsteer mount and trailer

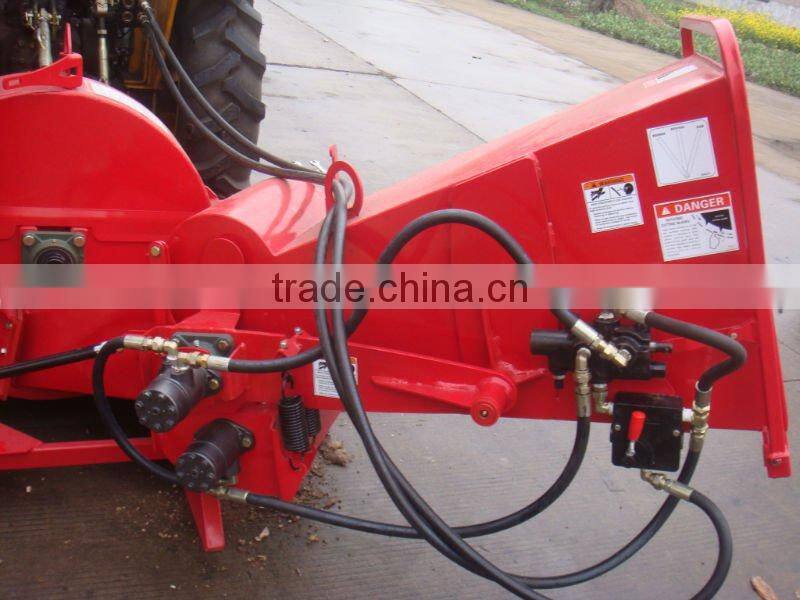

Hydraulic Feed Hopper
Maximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece.
CE of self-feeding wood chipper
Location

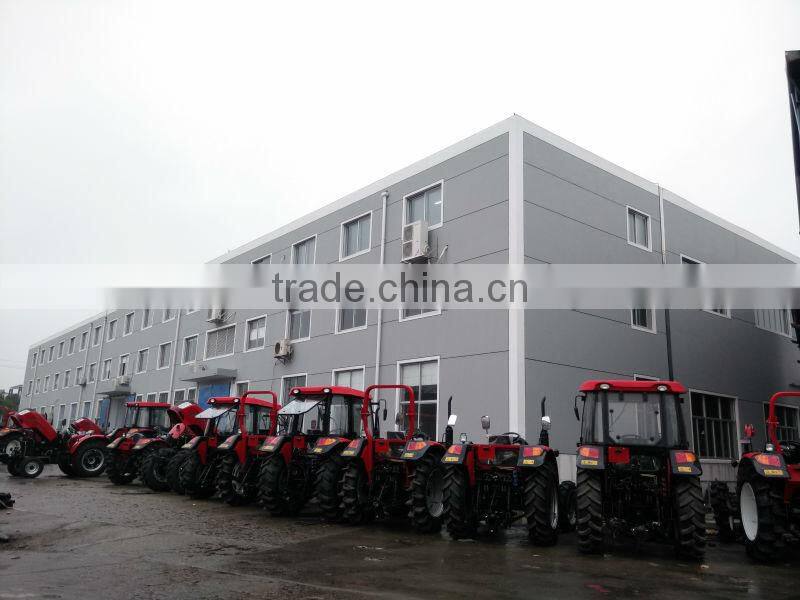

Our factory
Our laser cutting machine
