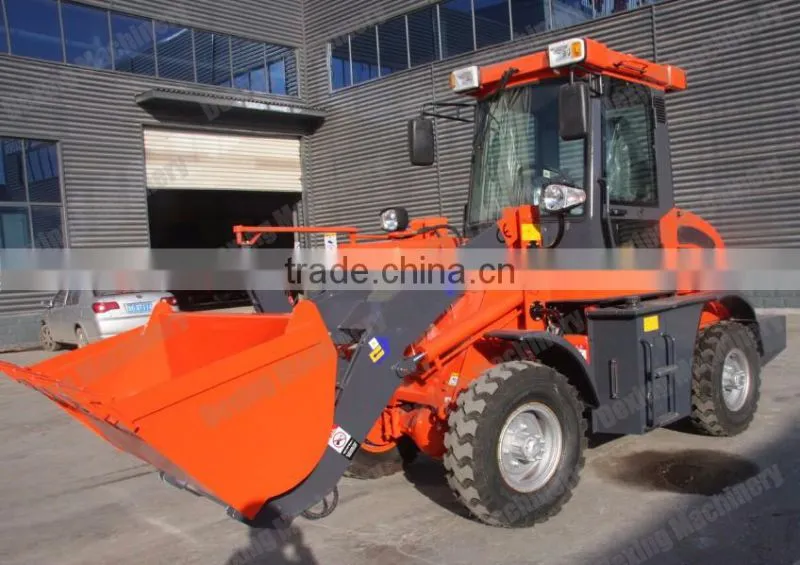

New Design Mini Wheel Loader ZL10F
Main Features and Technical parameters of Mini Wheel Loader
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6. Various working devices of attachment are available,such as wooden fork,pipe fork,grass fork,stone bucket,enlarged bucket,plow,fork etc,to meet different needs.
Specification |
overall weight(kg) |
2850 |
L×W×H(mm) |
4750x1500x2530 |
|
rated bucket capacity(m3) |
0.5 |
|
Rated load(kg) |
1000 |
|
Wheel base |
1985mm |
|
Track base |
1215mm |
|
Max.breakout force |
22KN |
|
Maximum dump height (mm) |
2300mm |
|
Reach fully raised |
850mm |
|
Bucket width |
1400mm |
|
Bucket indicator |
Yes |
|
Engine |
Model |
CHANGCHAI 490 |
Rated power(kw) |
34KW |
|
Rated speed(r/min) |
2200 |
|
type |
In-line arrangement, water cooled, three-cycle diesel Engine |
|
Engine starting mode |
electric |
|
Brake mode |
Four-wheel hydraulic spread-shoed brake |
|
Steering system |
Type |
Articulated and hydraulic steering |
Min turning radius(mm) |
4200 |
|
Min.ground clearance |
250mm |
|
Tyres |
Standard tyres |
16/90-16 |
Note: The above parameters to the company prevail in kind, subject to change without notice.

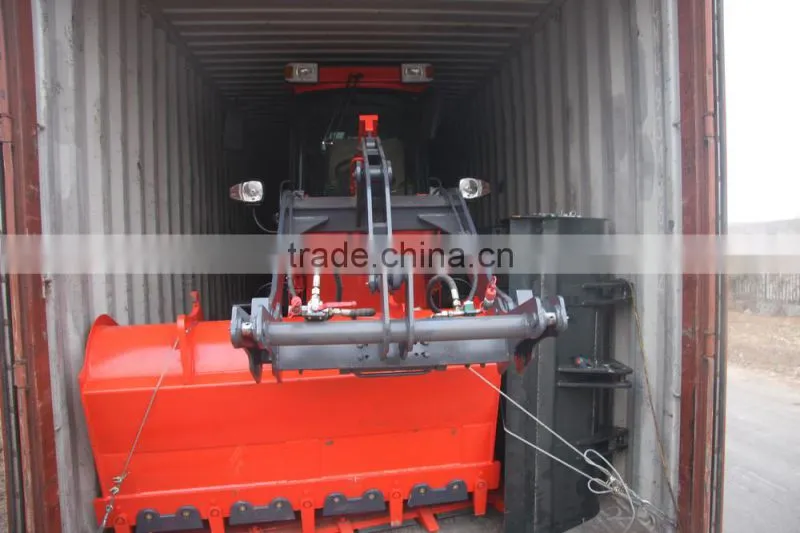

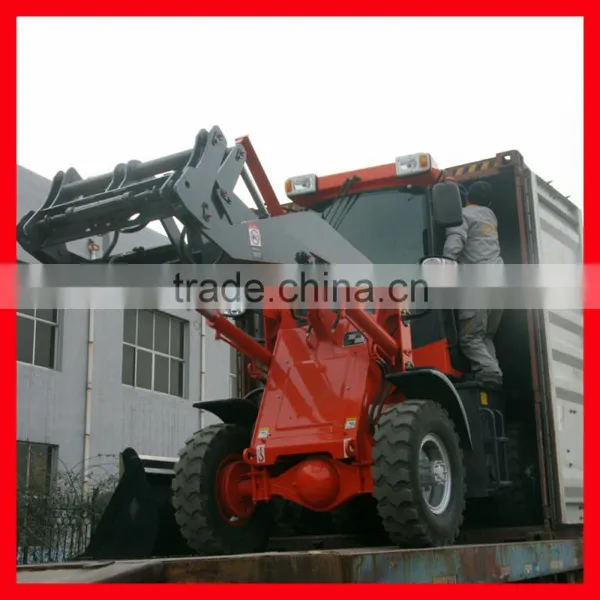

One mini wheel loader ZL10f can be shipped by one 20 ft container. One 40 HQ contianer can load three units.
