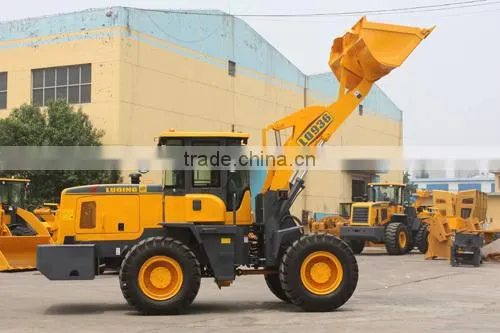

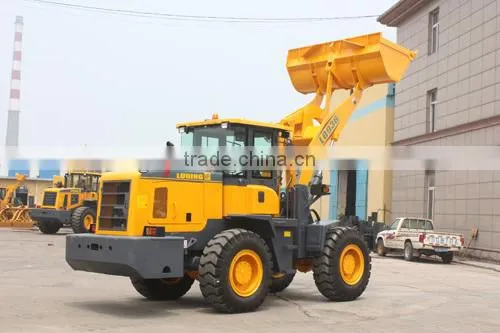

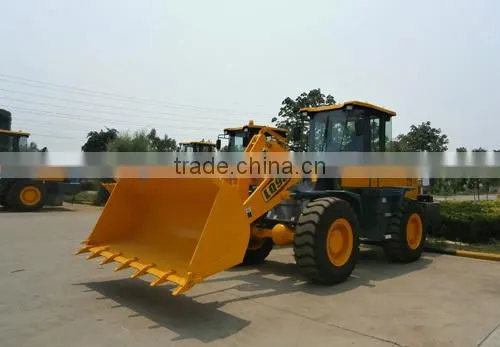

Low Price Professional 3.0T Wheel Loader ZL936 With CE

Name: Low Price Professional 3.0T Wheel Loader ZL936 With CE
Brand: Dexing
SKU: 139060393

US$ 20,000 - 25,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

Dexing

Model Number:

ZL936

Henan Dexing Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Dexing

Model Number ZL936

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7050*2430*3120mm

Rated Load 3000kg

Certification CE

Warranty one year

After-sales Service Provided Overseas service center available

Specifications

3.0T Wheel Loader with CE
1) Komatsu technology
2) DEUTZ or CUMMINS engine
3) joystick,Quick Hitch,etc
4) 3.0T and 1.7m3

Low price Professional 3.0T Wheel Loader ZL936 with CE

FEATURES

Originted from Komatsu technology,high reliability and productivity.

Torque converter and counter-shaft transmission gearbox-Komatsu tecnology.

Bucket can be leveled automatically,optimized working device.

Specifications
Rated weight	3000Kg
Rated capacity	1.70m3
Operating weight	9500kg
Dump height	3.02/3.25m
Dump distance	1200mm
Wheelbase	2760mm
Tread	1800mm
Total time	11s
Max. breakout force	138KN
Max. dumping height	5700mm
Transportation dimensions	7050×2430×3120mm
Engine
Model	DEUTZ TD226B ( YUCHAI YC6B125-T10 or WEICHAI HUAFENG R6105G20 )
Pattern	Vertical, water-cooled, 4-stroke, direct injection
Rated power/speed	92kw/2200rpm
Max. torque	860N.m
Normal fuel consumption	162g/kw.h
Total displacement	6L
Fuel	0# or -10# diesel oil
Torque converter and transmission system
Model of torque converter	YJ320B-1
Pattern	3-element single stage
Transmission type	Full-powershift, countershaft type
Number of gear	4 forware, 2 reverse
Max. travel speed	40km/h
Axle	Xiuzhou/Laiyang
Main reducer pattern	Arc taper gear, modelration of first grade
Pattern of wheelside moderation	Planet gear moderation of single
Tire
Tire size	17.5-25
Steering system
Pattern	Articulated and hydraulic steering
Min. turning radius(outside of bucket)	5700mm
Max. turning angle	37°±1
Implement hydraulic system
Implement pump	CBGV2100
Displacement	100ml/r
System working pressure	27.5mpa
Distribution device model	DF25.2C
Brake system
Brake type	Air assisted oil disc on four wheel
Parking brake type	Soft axle control, outside bunch drum type
