Supply China New price diesel forklift 2 -3.5 tons Triplex Shide-shift Freelift
Standards:
2.5Ton Diesel Forklift Truck 2stage 3M Mast, Hydraulic transmission (Automatic), 1.22M fork, China Engine 490BPG,Penumatic tyre, Maintenance Free Battery. Seat with safety belt & steady bar Warning light
♦ Side shifter is optional
♦ Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3mmast.
♦ Optional engine:EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;
YANMAR engine.
Technical Parameters
| General | Model | CPC25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 80 | |
| Turning radius | mm | 2500 | |
| Overall length | mm | 3800 | |
| Overall width | mm | 1230 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2110 | |
| Fork length | mm | 1220 | |
| Fork width | mm | 125 | |
| Fork thickness | mm | 45 | |
| Performance | Max. driving speed (with/without load) | km/h | 18/20 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15.5/10.5 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles(forward/backward) | ° | 6/12 | |
| Service weight | kg | 4320 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 39 | |
| Rated speed | rpm | 2650 | |
| Displacement | L | 2.67 | |
| No. of cylinder | 4 | ||
| Wheel | Front overhang | mm | 465 |
| Wheel base | mm | 1700 | |
| Front tread | mm | 1000 | |
| Rear tread | mm | 970 | |
| Front tire | 28x9-15 | ||
| Rear tire | 6.50-10 |

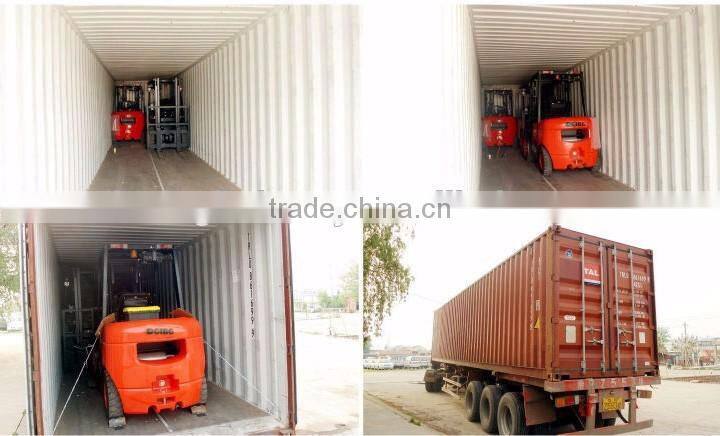

Nude Package loaded and fixed firmly in 20 gp or 40 gp container

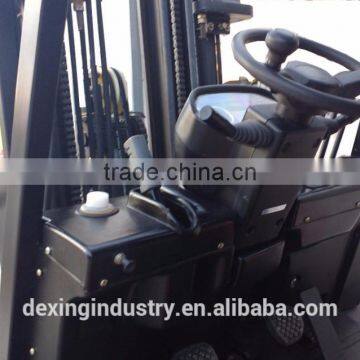

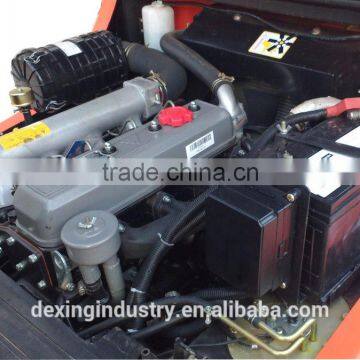

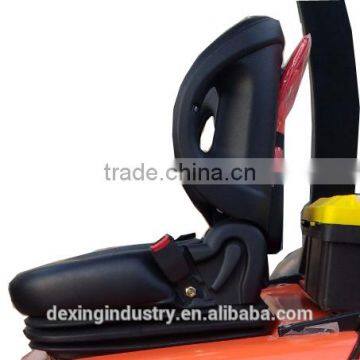

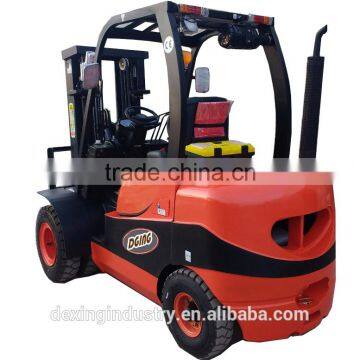

Reference Photos:
Related Products
2 tonne 3.5 tonne 5 tonne 7 tonne 10 tonne diesel forklift
Various Attachments to your needs
s
In order to offer you right products, please let us know the following information:
1. Import country
2. Requirement for the products
3. The quantity you need
4. Destination port
Send Inquiry to This Supplier
