Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine

Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine thumbnail-1
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine thumbnail-2
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine thumbnail-3
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine thumbnail-4
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine thumbnail-5
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine thumbnail-6
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine photo-1
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine photo-2
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine photo-3
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine photo-4
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine photo-5
Cost-effective 3 Ton Diesel Forklift With Japan Engine, Isuzu Engine photo-6
US$ 9,000 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
wecan
Contact Supplier Request Quote Chat Now
Henan Dexing Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or on request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name wecan
Model Number CPCD30
Type Other, Powered Pallet Truck, Sit-Down Counterbalance Forklift Trucks (IC)
Power Souce Diesel Engine
Rated Loading Capacity 3 ton
Max. Lifting Height 6000mm
Min. Lifting Height 125mm
Fork Length 1220mm
Fork Width 125mm
Overall Dimensions 3800*1230*2095mm
Certification EPA CE ISO
After-sales Service Provided Overseas service center available

Cost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu Engine



Product Description

Cost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu Engine

Feartures

♦       Powerful engine

♦       Low center of gravity, small turning radius, more stable and reliable

♦       Comfortable seat for long-time operation

♦       Safe overhead guard

♦       Rear light for working in the dark

♦       Dual air filter

♦       Streamline balance weight

♦       Side shifter is optional

♦       Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3mmast.

♦       Optional engine: EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;

         YANMAR engine.

Technical  Parameters



General Model   CPC30
Rated capacity kg 3000
Load center mm 500
Power type   Diesel
Transmission   Hydraulic
Dimensions Lifting height mm 3000
Free lifting height mm 80
Turning radius mm 2500
Overall length mm 3800
Overall width mm 1230
Overall height (mast lowered) mm 2095
Overall height (mast raised) mm 4080
Overall height (overhead guard) mm 2110
Fork length mm 1220
Fork width mm 125
Fork thickness mm 45
Performance Max. driving speed (with/without load) km/h 18/20
Max. lifting speed (with load) mm/s 400
Max. traction (with/without load) kn 15.5/10.5
Gradeability (with/without load) % 15/20
Tilting angles(forward/backward) ° 6/12
Service weight kg 4320
Engine Engine model   490BPG
Power kw 39
Rated speed rpm 2650
Displacement L 2.67
No. of cylinder   4
Wheel Front overhang mm 465
Wheel base mm 1700
Front tread mm 1000
Rear tread mm 970
Front tire   28x9-15
Rear tire   6.50-10





Packaging & Shipping

Nude Package loaded and fixed firmly in 20 gp or 40 gp container

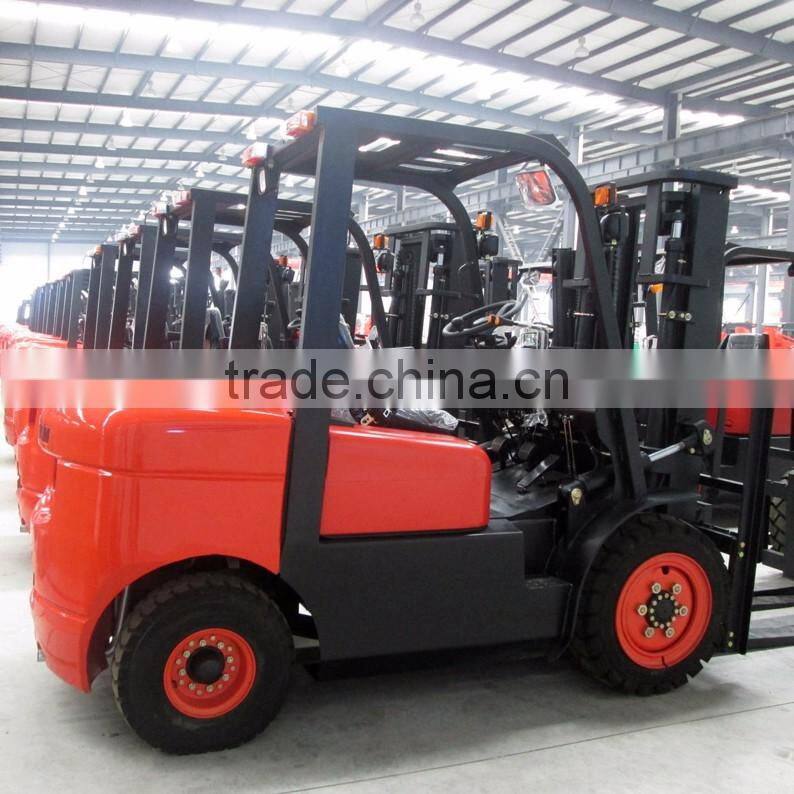

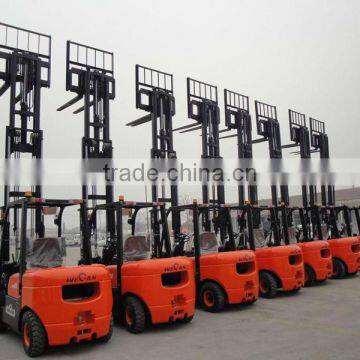

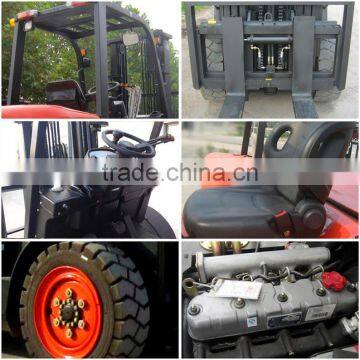

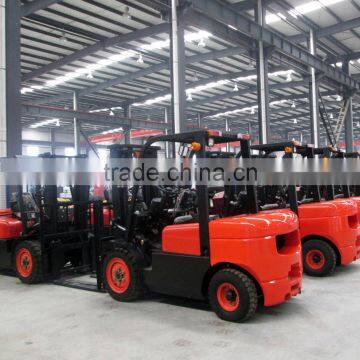

Reference Photos:

Cost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu EngineCost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu Engine



Ralated Products

2 tonne 3.5 tonne 5 tonne 7 tonne 10 tonne diesel forklift

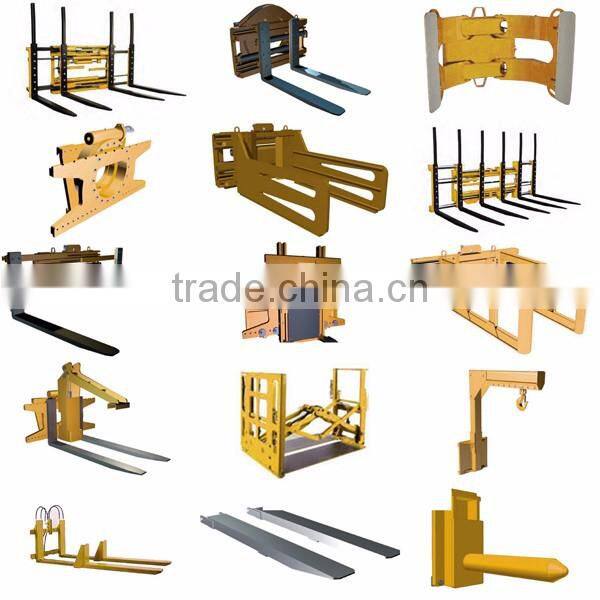

Various Attachments to your needs

sCost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu EngineCost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu Engine

Cost-effective 3 Ton Diesel Forklift with Japan Engine, Isuzu Engine
