4t/h Green Energy Material Machine Crushed Wood Pallet Branch

4t/h Green Energy Material Machine Crushed Wood Pallet Branch photo-1
4t/h Green Energy Material Machine Crushed Wood Pallet Branch photo-2
4t/h Green Energy Material Machine Crushed Wood Pallet Branch photo-3
4t/h Green Energy Material Machine Crushed Wood Pallet Branch photo-4
4t/h Green Energy Material Machine Crushed Wood Pallet Branch photo-5
4t/h Green Energy Material Machine Crushed Wood Pallet Branch photo-6
US$ 30,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ZHONG XIN NENG YUAN
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name ZHONG XIN NENG YUAN
Model Number PF4A
Voltage 380v or customization
Power(W) total 60.5kw
Dimension(L*W*H) 2800X2735X1964mm
Weight 4980Kg
Certification CE approved
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

            4t/h Green energy material machine crushed wood pallet branch

Company Information

Company Information

Jinan Xinneng Machinery Equipment Co., Ltd. located in Jinan City, the capital of Shandong Province.

It has been specialized in biomass energy’s technology development and promotion since 2006, won lots of national technical patents in the field of biomass energy’s utilization.

With professional R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of biomass energy’s utilization and all our products have got CE certificates.

Main Products:

Biomass briquette machine, Wood crusher, Vertical dryer, Biomass burner and Gasifier.

Product Description

 Product Description

PF4A disc machine crushed wood adopts rotation type activity hopper,feeder system adopts hydraulic

power transmission, stepless speed change. Rotary hopper can be automatic lifting, and easy maintenance.

Knives adopts adjustable type, each tool can be adjusted angle then using four times, fixed knife can be using both side, greatly reduces the using cost.

Feed system adopts reliable hydraulic power transmission, feed and feeding system being stepless speed regulation comes true, then PF4A can be widely used in crushing kinds of materials, like straw, plastic, rubbishwaste, plancon, wood waste, etc,

Requirement of moisture is also lower, less than 60% will use well.

Outfeed system can be tow kind of wind force transportation or belt transportation, It can be customized depending on raw material and requirement of client.

4t/h Green energy material machine crushed wood pallet branch

Technical Parameters

 Technical Parameters

disc crusher operation instruction

Total power

60.5Kw

Main power

55Kw

Spindle speed

615r/min

Quantity of knives

128

Diameter of screen mesh

20mm(can be customized)

Capacity(Woods)

4t/h

Size after crushed

below 300mm

Volume of rotary hopper

2.3m³

Rated speed of rotary hopper

0-10 r/min

Type of out feeding

wind force transportation(can choose belt transportation)

Weight of device

4980Kg

Size of device

2800X2735X1964mm



Talk with us. We will be happy to advise you.

Wide application

 Application

PF4A disc machine crushed wood can be widely used in crushing

kinds of materials, like straw, plastic, rubbish waste, plancon, wood waste, etc.

4t/h Green energy material machine crushed wood pallet branch

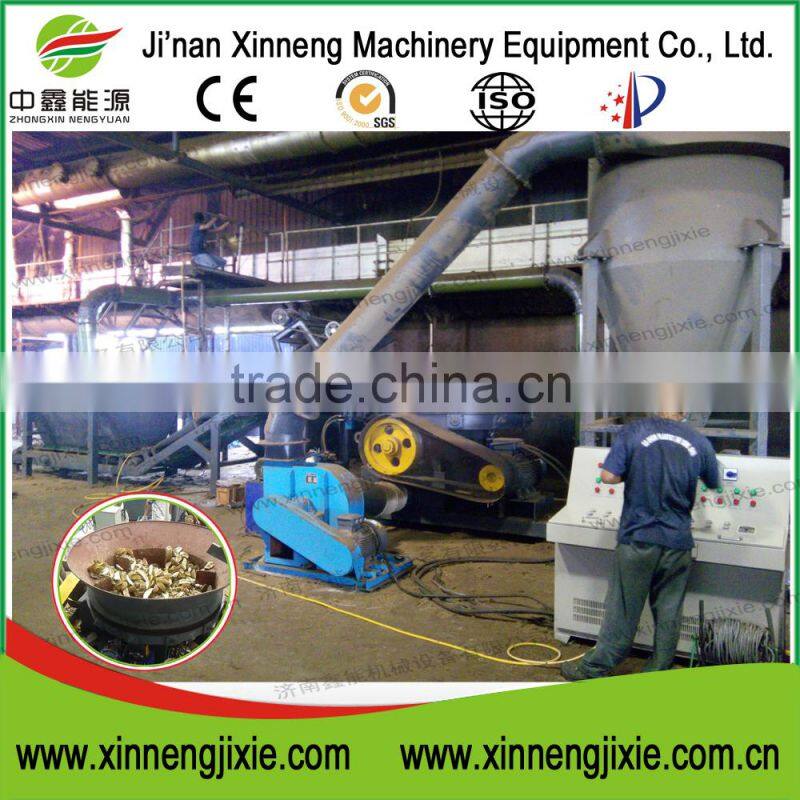

Delivery Site

 Delivery Site



Our Services

OUR SERVICES
Our services for disc machine crushed wood
1. The warranty is 12 months.
2. We provide after-sale services through the email, fax or telephone and we will definitely response within 24 hours     once we received the message or any information.
3. Our engineers could provide complete design plans based on your materials or any other equipments according       to your data and information.
4. We also provide engineers to go to your factory and train your technicians.
5. OEM Services.

Patented and CE

Patented and CE certificates

Patented and CE certificates for all our disc machine crushed wood and other machines.

4t/h Green energy material machine crushed wood pallet branch
