Tank water level indicator
1. low cost 2. high quality 3. sample to install 4. wide application for all car and truck
MR-MTX-610
Introduction
water/oil tank liquid level sensor with lots of function, such as liquid level control, heating, oil suction, oil return,
temperaturealarm, fuel filter, balance box for air pressure and safety. Mainly used for oil/water/sewage continuous indication and alarm.
Features
effectively improve the comprehensive function of the tank system, and greatly reduces the cost of fuel tank system, also reducethe potential failures in construction, such as oil leakage, box deformation, explosion and other security risks.
Applications (LEV05009,05010,05011) of FUEL sensor
mainly used in liquid level detection and oil absorbing function for oil tank of heavy-truck.
- This product uses the magnetic field control reed contacts in order to disconnect power, it has a long life,explosion-proof andseismic characteristic.
- Rated Power: 125mW
- Rated current of warning switch: 500mA
- Wire: PVC material (PA Corrugated pipe sheath optional)
- Output signal: 0~190Ω,240~33Ω or 0~20mA,4~20mA, also could custom manufacturing
- Accuracy range: 10~40mm
- Operating temperature: -40°C~+85°C
Series LEV05009 LEV05010
- The main body made with aluminum alloy material
- Applications: Main application for liquid level detection and suck the oil back of heavy truck
- Length range: 230~1000mm, or custom manufacturing
- Fuelfilter
- Equipment method: Bayonet assembly methods
- Protection level: IP67
Series LEV05011
- The main body made with SUS304 material
- Applications: Main application for liquid level detection and suck the oil back of light truck, bus or construction machinery vehicles.
- External joint could be custom made
- Length range: 230~1000mm
- Fuelfilter, balance device for fuel tank(Optional)
- Protection level: IP67

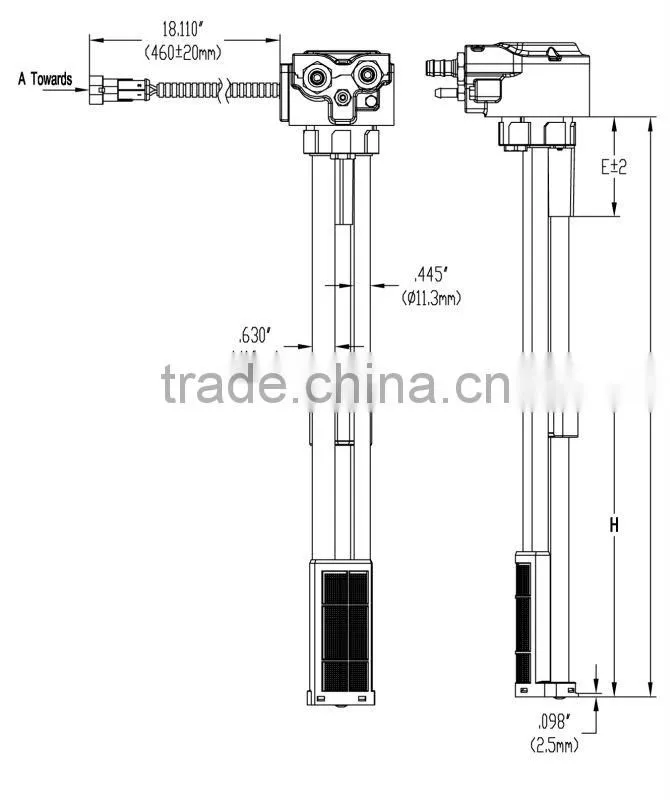

Specifications
| Model |
LEV05009 LEV05010
|
LEV05011 |
||
| STANDARD | NON-STANDARD | STANDARD | NON-STANDARD | |
| Length | 350~850mm | Customization | 350~850mm | Customization |
| Output signal | 0~190Ω | Customization | 33~240Ω | Customization |
| 240~33Ω | 240~33Ω | |||
| Joint | SAE aluminum joint | Iron thread joint | Pipe joint | Thread joint |
| Rapid rail joint | Rapid joint | |||
| Fuel sucking pipe | Ø16 | Ø16 | Ø10 | Customization |
| Fuel return pipe | Ø12 | Ø12 | Ø10 | Customization |
| Alarm | Optional | Optional | Optional | Optional |
| Connector | Optional | Optional | Optional | |
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision
of the various production processes.
