Help CenterMR-MS3-200 Oil Level Gauge Tank Level Sensor
Related Products
-
MR-MS5-500 Professional Capacitance Fuel Level SensorUS$ 15 - 40MOQ: 2 Pieces -
MR-MS3-200 Oil Level Gauge Fuel Sensor Gps TrackerUS$ 15 - 40MOQ: 2 Pieces
-
MR-MS3-150 Oil Water Magnetic Float Level SensorUS$ 15.5 - 22.5MOQ: 2 Pieces
-
MR-MS5-200 Fuel Flow SensorUS$ 15 - 22MOQ: 2 Pieces
-
MR-MS5-300 Diesel Fuel Tank Monitoring System Fuel Level SensorUS$ 15 - 23MOQ: 2 Pieces
Tank level sensor
1. low cost 2. high quality 3. sample to install 4. wide application for all car and truck
MR-MS3-200
Introduction
water/oil tank liquid level sensor with lots of function, such as liquid level control, heating, oil suction, oil return, temperaturealarm, fuel filter, balance box for air pressure and safety. Mainly used for oil/water/sewage continuous indication and alarm.
Features
effectively improve the comprehensive function of the tank system, and greatly reduces the cost of fuel tank system,also reducethe potential failures in construction, such as oil leakage, box deformation, explosion and other security risks.
Applications (LEV05001,05002......05007)of single pipe sensor

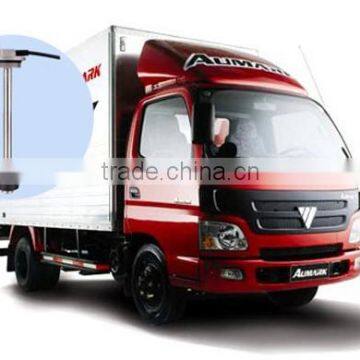

mainly used in liquid level detection and oil absorbing function for oil tank of heavy-truck.
LEV05001,05002.....05005 Series
- Main body made with SUS304 material
- Length range: 100~2000mm, or custom manufacturing
- Equipment method: SAE standard with 5 holes, or others
- This product made with 5 screws, or changed with other material of gasket by operating environment
- Protection class: IP67
LEV05006,05007 series
- Main body made with SUS304 material
- Length range: 100~2000mm, or custom manufacturing
- Equipment method: BSP1 1/4” turning thread joint or PT turning thread joint. Additionally, the type of flange and oil tank can be optional
- This product made with 38*2.6mm O-Rings, or 43*3.5mm O-Rings
- Protection level: IP67
Specifications
| Model |
LEV05006,05007
|
LEV05001,05002.....05005 |
||
| Standard | Non-standard | Standard | Non-standard | |
| Length | 100~1500mm | Customization | 100~1500mm | Customization |
| Output signal | 0~190Ω | Customization | 0~190Ω | Customization |
| 240~33Ω | 240~33Ω | |||
| Equipment | BSP1 1/4" | BSP1 1/4" | SAE standard | SAE standard 5 holes |
| method | 5 holes | holes | ||
| Seal ring | NBR | NBR | NBR | NBR |
| FPM | FPM | |||
| Alarm | Non | Optional | Non | Optional |
| Cable length | 460/280mm | Customization | 460/280mm | Customization |
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
