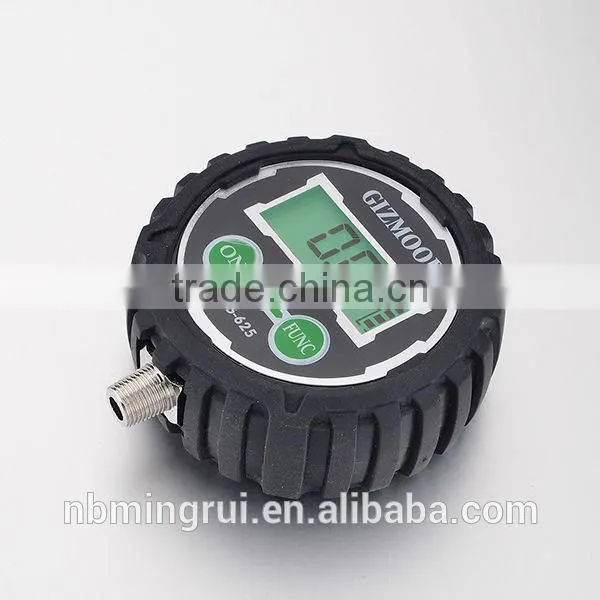

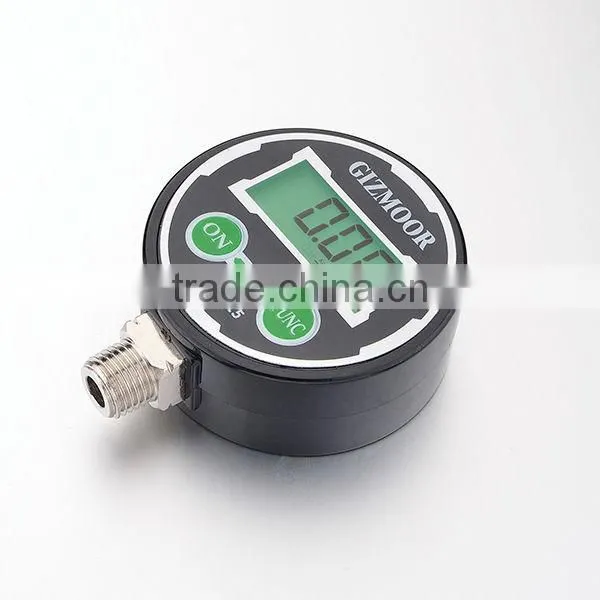

Help CenterDIG01029 Customized Digital Pressure Gauge for Car Tire Pressure Gauge
Related Products
-
Gauge Quality ManualUS$ 5.8 - 6.8MOQ: 5 Pieces -
DIG01029 5 in 1 Digital Tyre GaugeUS$ 13 - 20MOQ: 1 Piece
-
DIG01013 All Stainless Steel Plastic Coat Pressure Gauge for VehiclesUS$ 5.6 - 6.5MOQ: 5 Pieces
-
DIG01027 Precision Pressure GaugeUS$ 5.1 - 5.8MOQ: 5 Pieces
-
DIG01013 Pressure GaugeUS$ 5.8 - 6.8MOQ: 5 Pieces
Introduction
The tire pressure gauge is used in the measurement of tire pressure. The pressure of the tire is very important, and the instability of pressure will shorten the life of the tire. If the pressure is too high, it will increase the carcass deformation and the cracks in the sidewall. Additionally, it will produce flex motion, leading to overheating, and will prompt rubber aging. If the pressure is too low, the tire contact area will increase and accelerate the abrasion of the tire shoulder. Thus, the inaccuracy of tire pressure is likely to cause an internal crack and lead to the tire bursting in the event of an impact. This is very dangerous. The digital tire gauge could accurately measure tire pressure. It comes with time monitoring and is easy to read in order to ensure your driving safety.
Parameters
1. Measurement Media: gas
2. Sensor Type: silicon semiconductor sensor
3. Cover Body: ABS plastic
4. Resolution: 0.5PST
5. Meter Accuracy: ±1%. F.S @20°C
6. Repeatability: ±0.3%. F.S
7. Temperature Drift: ±2%. F.S
8. Max Operating Current: <4mA
9. Pressure Sampling Time: 0.4s
10. Auto Power Pressure: 5PSI±2PSI
11. Auto Power Response Time: <2s
12. Backlight Off Time: 25s±3s
13. Pressure Limit: 1.5 times full scale pressure
14. Operating Temperature: -10°C ~ 45°C; Storage Temperature: -20°C ~ 75°C

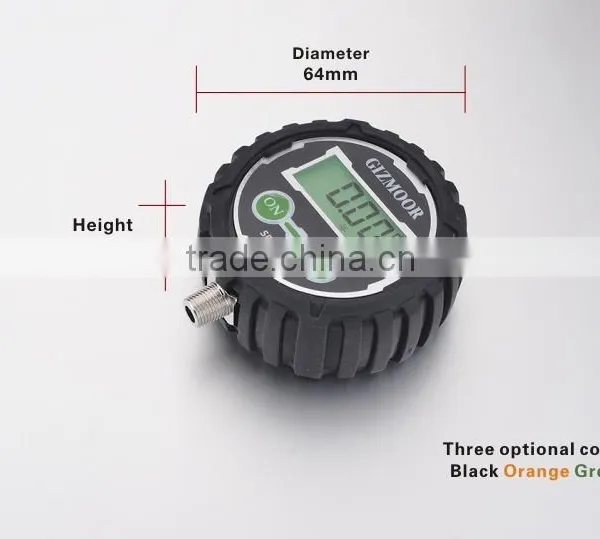

15. Dimensions: 64mm diameter, 27mm thickness (with rubber sheath: 72mm diameter, 35mm thickness)
16. Display: 2.5”4 TN type LCD display
17. Instrument Power: 3.0 VDC (2 * 1.5V, supply no.7 battery)
18. Display Unit: Psi, Bar, Kgf/cm 2, KPa
19. Pressure Measurement Range: 0-200 Psi

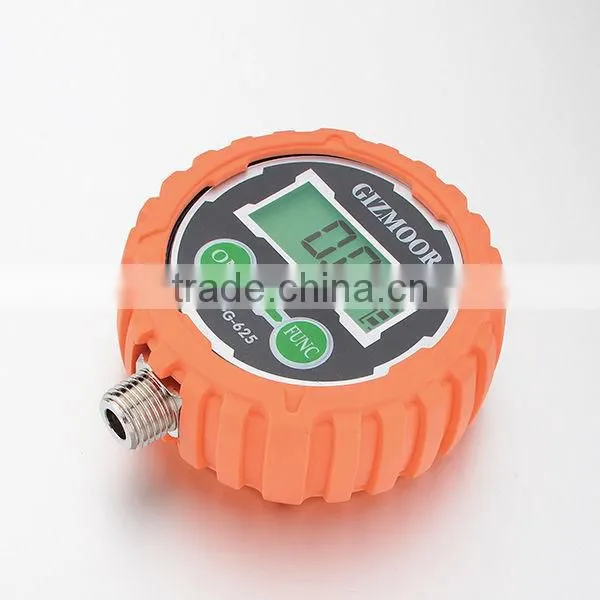

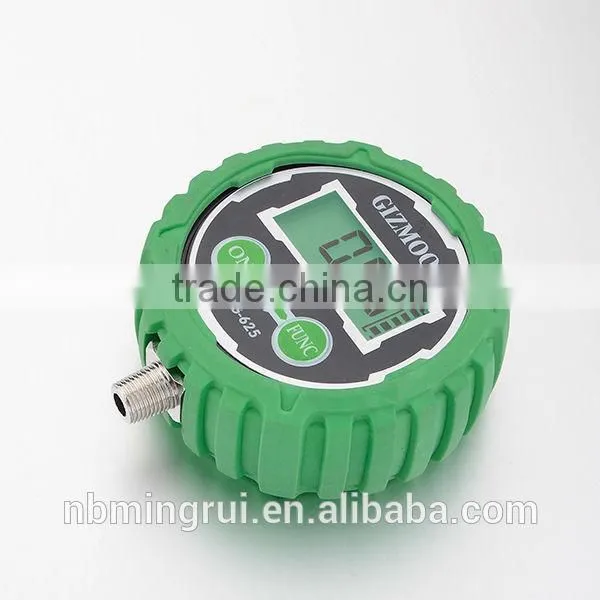

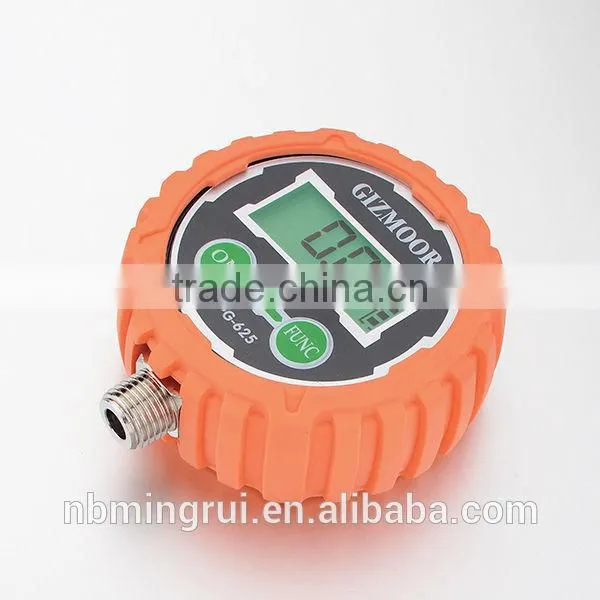

20. Color: green, orange, or black
21. Thread: 1/4NTP Universal
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
