Wood chipper and wood crusher combined in one machine
Introduction of the composite wood crusher
* The machine is new generation of wood crushing machine by our company according
to the existing wood crushing basis.
* According to the customer needs, the one of the composite machine for wood shavings
and wood broken,overcome the problem of fast feeding speed, to cause the weakness
of crushing effect is not ideal or jam crushing chamber, then machine halt.
* Compound wood crusher applicability is strong, it can be driven by the motor or
designed engine. According to the clients need, the machine can be designed for mobile
or stationary, automatic feeding and automatic discharge, realized full automation from
the log to sawdust.
Features of the composite wood crusher
* Low consumption
* Less noisy
* Reasonable design
* Big capacity
*Crushing granularity can be adjustable
Specification of the composite wood crusher
TECHINICAL PARAMETER | |||
Model |
GD1000 |
GD1200 |
GD1400 |
Motor (kw) |
75 |
90 |
110 |
Capacity (t/h) |
3-5 |
5-8 |
8-10 |
Wood chipper rotating speed (r/min) |
610 |
610 |
490 |
Wood crusher rotating speed (r/min) |
1970 |
||
Wood chipper bearing specification |
1312,7312,2312 |
1218,7218,2218 |
30222,1222,2222 |
Finished size (mm) |
1-10 |
||
Cut piece of thickness (mm) |
15-35 |
||
Wood chipper diameter (mm) |
1000 |
1200 |
1400 |
Wood crusher (mm) |
860 |
||
Wood crusher bearing specification |
Self aligning ball bearing 2218 |
Self aligning ball bearing 2222 |
Self aligning ball bearing 2222 |
Machine size (mm) |
2900×1600×1200 |
4000×1700×1700 |
4000×1900×1800 |
More pictures of composite wood crusher

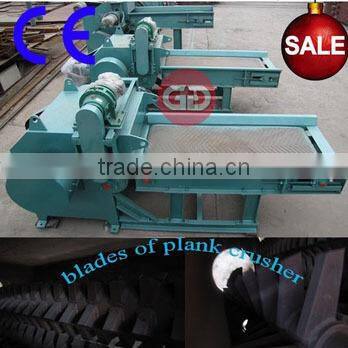

Other wood crusher (click here)
Other type of crusher (click here)
* Standard export packing: wooden case or container
* Within 15-20 working days after deposit
How to order?
1. Send a inquiry by email or Trademanager;
2. We provide you the offer;
3. Confirm delivery time and freight operation;
4. Arrange production after 30% deposit received by T/T
5. Confirm consignee and notify party information.
6. Balance payment received and book ship arranges shipping.
7. Performa invoice, packing list and copy bill of lading sent to you.
8. Product received.
After-sale service
1.Guide customers to choose the best suitable machine model, offer detailed specification
and competitive prices;
2. 12 months warranty except for wear parts;
3. CE , ISO approved, meet with European standard.
4. Broken spare parts (except for wear parts) will be sent for free due to quality problems
Henan Guangda is a professional manufacturer and supplier of farm machinery and biomass pellet production line, has been engaging in the international trading for 14 years, 12-180hp wheel tractor, agricultural implements and biomass pellet machine are our main products, widely exported to America, Europe, Africa, Southeast Asia, with high quality standard, rigorous management measures and advanced technology, we have built up very fine reputation at home and abroad.
