Specifications
Sugarcane chopper combine harvester260hp engine power
chopper harvesting, cane conveying, leaves removing, cane collecting
Sugarcane harvest machine for sale
260kw engine power
sugarcane harvesting, cane conveying,leaves defoliating, leaves removing
Sugarcane harvester
260hp engine power
sugarcane harvesting, cane conveying, leaves defoliating, leaves removing
Introduction & working principle

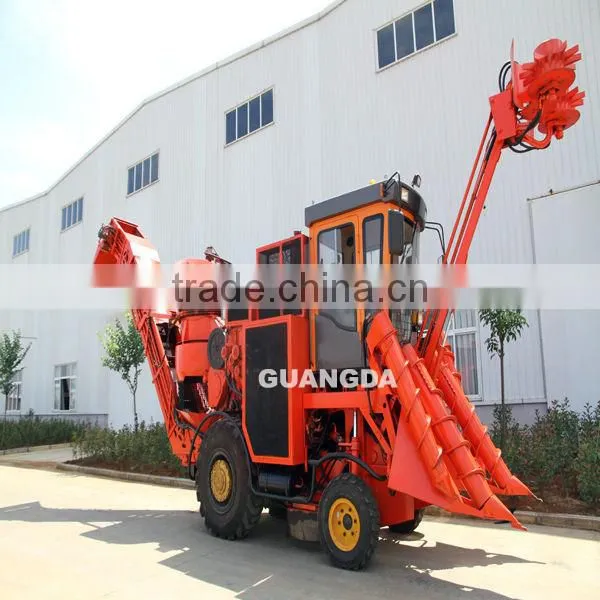

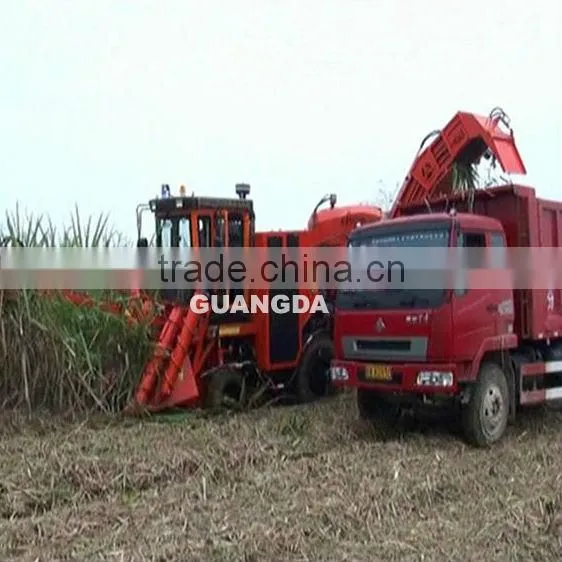

Sugar cane chopper combine harvester harvests the sugar canes in the field, and then chops them into 250-300mm length pieces. At the same time, the exhaust fan makes the sugar canes and their chopped leaves separated. So the neat and short pieces of sugar canes can be conveyed by the conveyor to a collection vehicle or a truck. At last, the sugar canes will be delivered by the truck. In this way, the process of the harvest of sugar canes will be completed.
Main Technical Features
1. The machine totally uses hydraulic driving and controlling,making for not only convenient and simple operation but also speedy maintenance.
2. Hydraulic system of the machine uses well-known brand in the world, making for its reliable performance.
3. The topper, base cutter and scroll have a wide range of adjustable height, making for different kinds of sugar canes, different conditions and appearance of soil.
4. The length of chopped sugar canes can be adjusted, making for the requirements of different consumers.
5. Rear wheel driving with infinitely variable speed adjustment makes for quick traveling speed and convenient and flexible operation.
|
|
|
|
|
|
No. |
Description |
Specification |
1 |
Type |
chopper harvesting, cane conveying, leaves removing, cane collecting, cane elevating, cane loading |
2 |
Operator |
Single Driver, with cabin equipped |
3 |
Engine power |
194kw |
4 |
Overall dimension |
13030x2580x5360mm |
5 |
Min. Turning Radius |
5220mm |
6 |
Net Weight |
11000kg |
7 |
Rows Distance |
≥1200mm |
8 |
Harvesting Number of Rows |
1row |
9 |
Wheel driven |
Hydraulic rear driving |
10 |
Cutting Height Qualification Rate |
≥90% |
11 |
Ratoon Broken Rate |
≤15% |
12 |
Impurity Rate |
≤7% |
13 |
Total Loss Rate |
≤5%(with leaves) |
14 |
Net Working Hour Productivity |
≥20 tons/h |
Pre-sale service
24hours online to ensure quick reponse to customers' inquiry or online message
guide customers to choose the best suitable machine model, offer detailed specification
and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance ducoments by DHL
Keep customers to be informed of vessel location while shipping and get them prepared
for customs clearance work
After-sale service
12 months warranty except for wear parts
broken spare parts(except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference
1. 12 months warranty since machine arrives destination port
2. T/T (Telegraphic transfer) payment: 30% as deposit, 70% balance payment shall be paid before delivery
3. delivery time: 20 working days after confirmation of deposit
4. Loading: 2*40HQ/2sets
5. Logo: can be customized and it is for free!
6. technical service offered whenever you are in need
Henan Guangda Textiles Imp. & Exp. Co., Ltd, as a state owned enterprise, has been engaged in international trading business for 14 years. With tractors and farm implements as our main products, we have exported to Europe, North America, South America, Africa, Southeast Asia etc, and gained high reputation from our customers. Once given a chance, we will return with high quality products and full services!
Other combine harvester offered
|
|
|

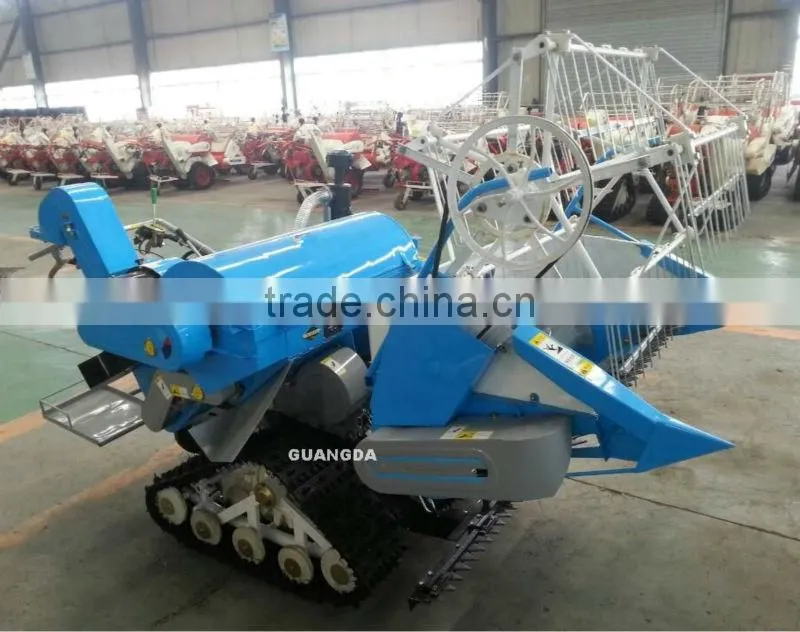

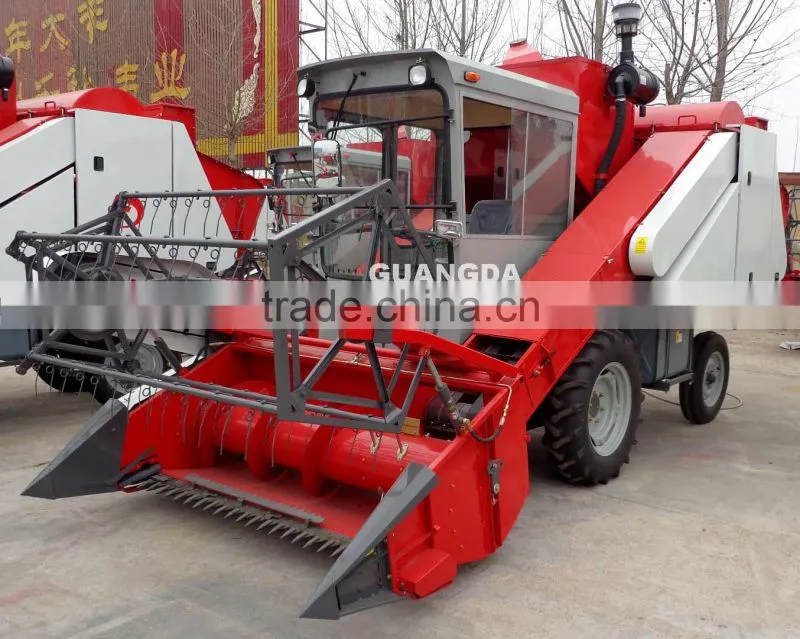

| mini rice harvester with track | wheat combine harvester(cabin) | soybean combine harvester |
