Specifications
combine rice harvester75hp/90hp engine for optional
Mechanical /auto unloading Type
2m working width
Rice combine harvester
4LZ series combine rice harvester for sale
- 75hp/90hp engine for optional
- Rice combine harvester machine for sale
- Mechanical /auto unloading Type
- Double roller and double deck shakers
- Big/ small tank capacity
- 2m working width
- Rubber track
1. 75/90 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
2. Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3. Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
4. Lower ground pressure, better for passing in paddy field.
5. Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
| Mechanical manual unloading type, small tank | Hydraulic automatic unloading type, big tank |
|
|

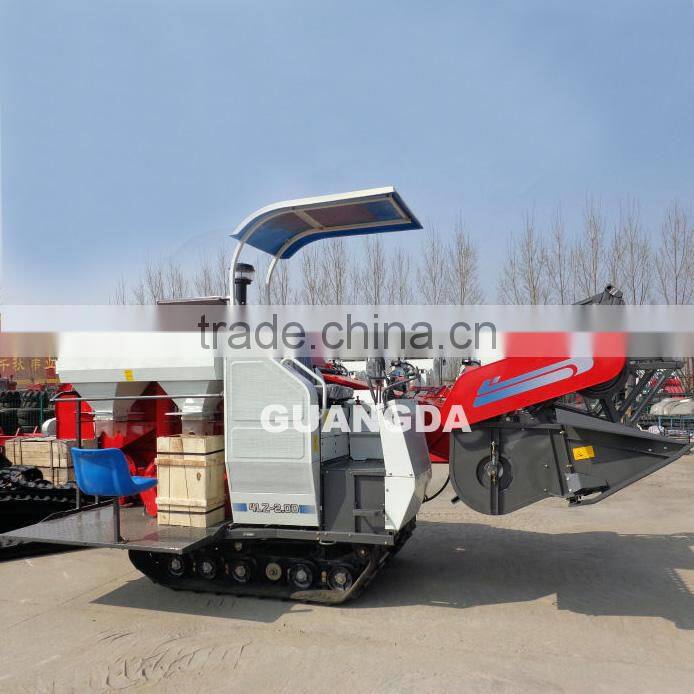

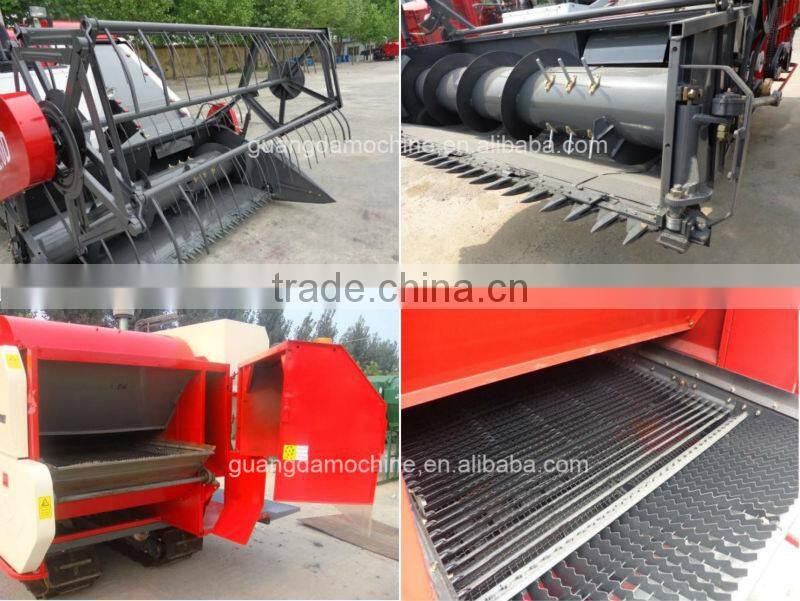

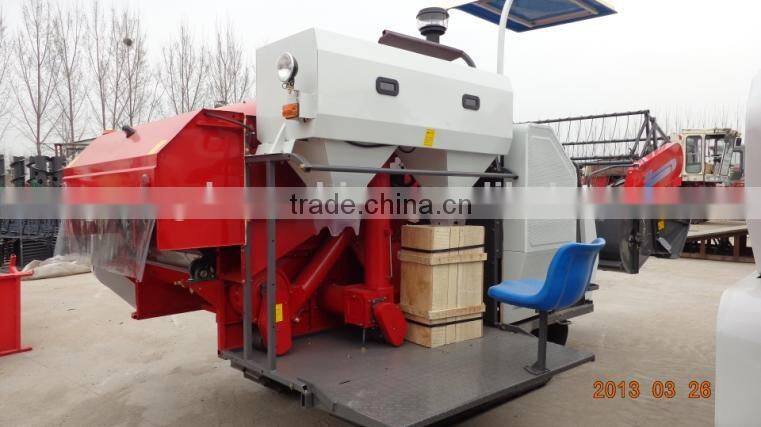

Photos for rice harvester-- Mechanical unloading type
0.3CBM (150-200Kg) small grain tank for gunny sack

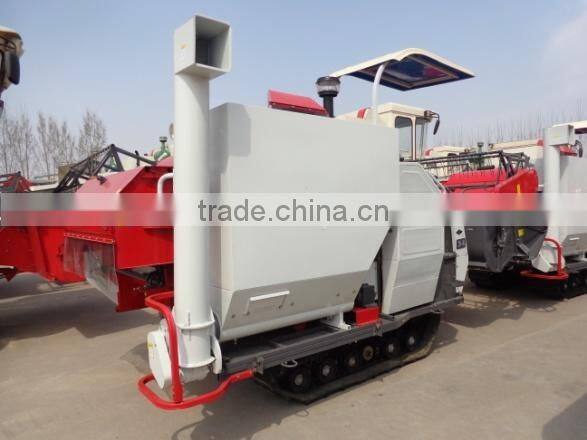

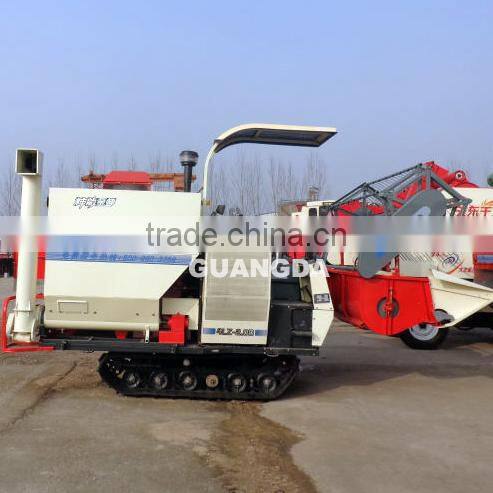

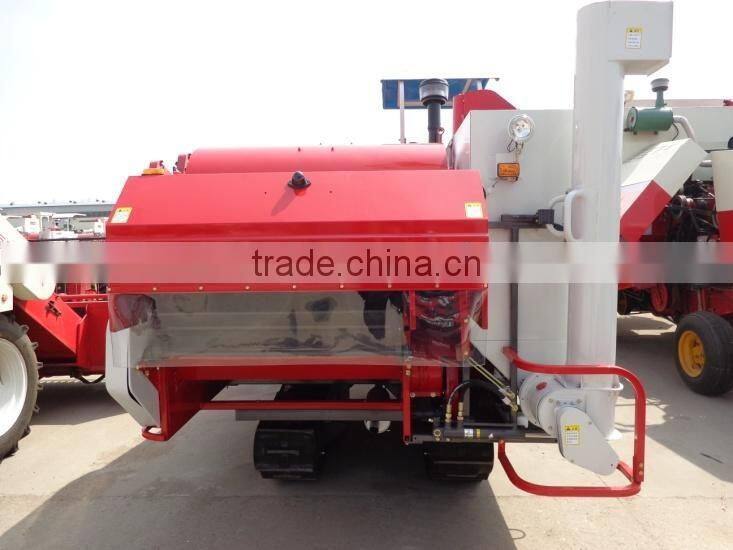

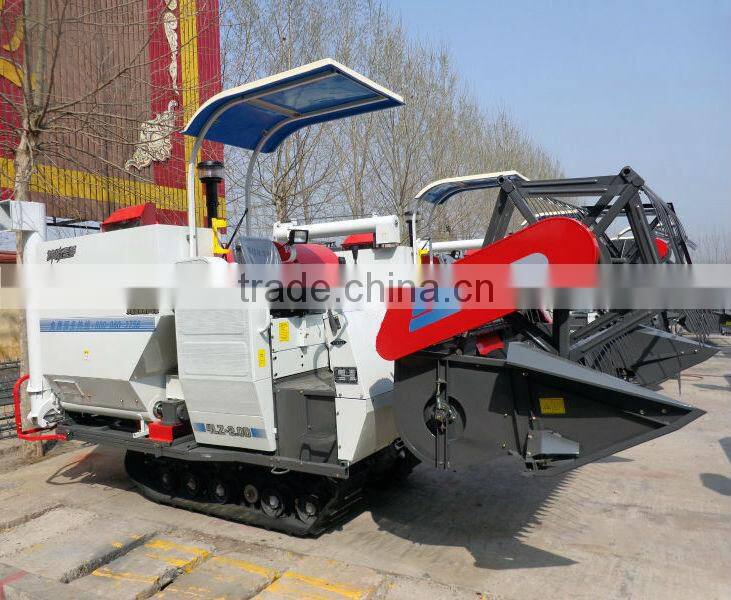

Photos for rice combine harvester-- Auto unloading Type

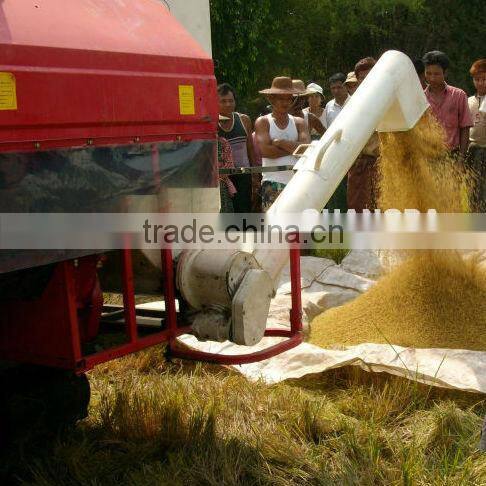

1.1CBM (500-550Kg) grain tank with hydraulic control discharger auger
Model |
4LZ-2.0D |
Working Efficiency |
0.2~0.47 hm2/h |
Overall Dimensions (L x W x H) |
4750×2350×2360 mm |
Weight |
2350 kg |
Engine |
Diesel Engine |
Model |
A498BZT / A498BZT88/24 |
Rated Power |
75 HP (55kw) / 90HP (66KW) / 2400 rpm |
Fuel consumption per hectare |
≤30 Kg/Ha. |
Chassis |
|
Rubber Track |
400x90x48mm / 450*90*48mm |
Transmission |
HST F:3 / R:3 |
Ground Pressure |
≤18 Kpa |
Min. Ground Clearance |
240 mm |
Header |
|
Cutting Width |
2000 mm |
Type of Lifting |
Hydraulic |
Lifting of Reel |
Hydraulic |
Steering |
Hydraulic |
Conveyor |
Chain rack tooth type |
Threshing Cylinder |
Tangential Flow + Axial Flow, Dual Spike-tooth type |
Cleaning |
Fan (front blowing + rear suction)+Sieving+re-thresher |
Paddy fill Method |
Grain Tank & Bag |
Grain Tank |
1.0 CBM (500-550 kg) / 0.3CBM (150-200 Kg) |
Total Loss |
|
Rice |
≤3% |
Wheat |
≤1.2% |
Breakage |
≤1.5% |
Impurity |
≤2.0% |
More details for harvesting machine
24hours online to ensure quick response to customers' inquiry or online message
guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery

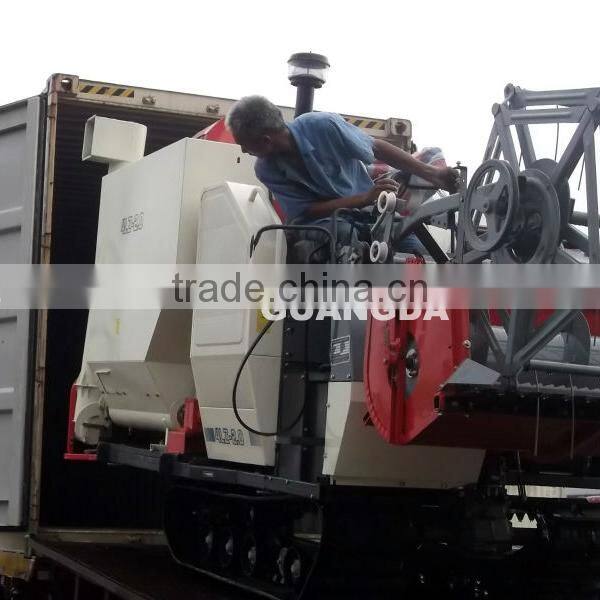

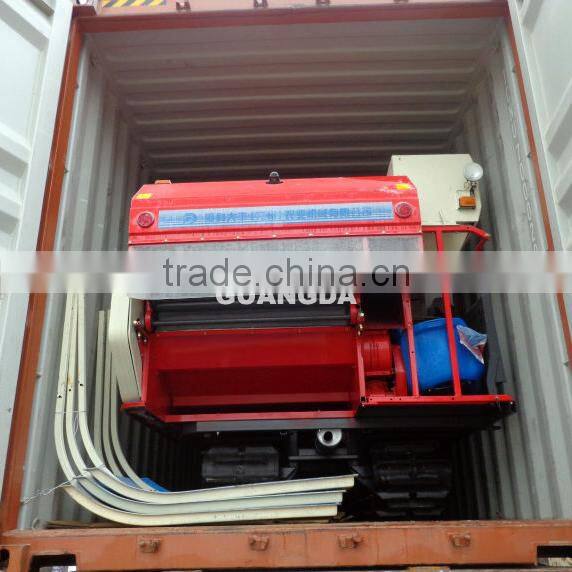

Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference
Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.
1. Delivery time: 30 days after the down payment
2. Payment term: By T/T (30% deposit in advance, 70% balance before delivery).
3. Free accessories: Easy damage parts and toolbox provided for free
4. Technical documents: Technical files, manual, documents and certificates are provided together
5. Warranty: 12 months after the goods delivery your port
6. Tractor color: As per request
7. Logo: Can stick your logos for free if needed
Related products

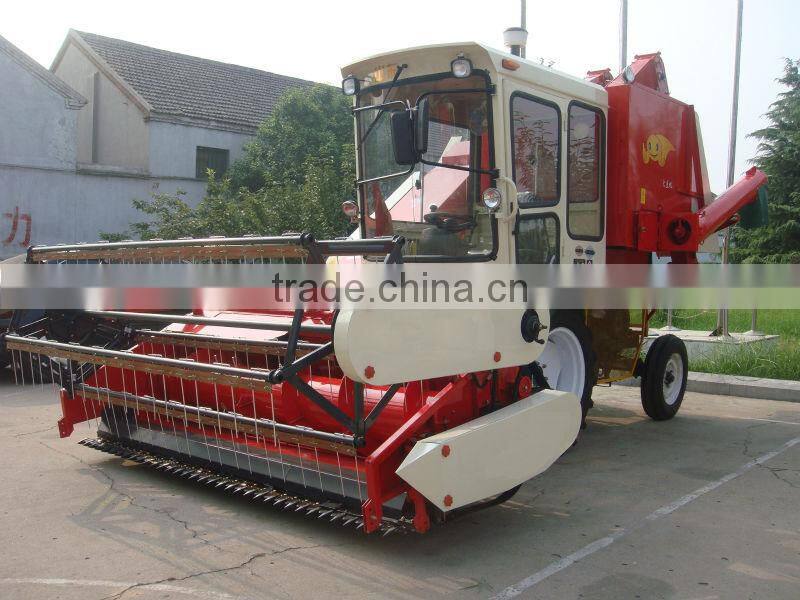

| Pea harvester/ bean harvester, please click here | Mini harvester/ reaper binder, please click here |
|
|
