Rice combine harvester with track
- 300 Set / Sets per Month
- Qingao
- Sale SEW equivalent parallel-shaft helical gearbox F Series gear box
- F series solid shaft helical gear reducer parallel shaft transmission box
- RV series mini worm gear box
- RV series low RPM turbo worm and gear reducers
- rv Worm and Worm Ger Calculation Industrial Gear Reducer
- NMRV RV 030-130 Series worm and gear wheel speed reducer
Product Details
Condition: | New | Application: | wheat and rice combine harvester, wheat and rice, dry and paddy land | Type: | Combine Harvester |
Drive Type: | Other, diesel engine | Usage: | Grain Harvester | Brand Name: | GUANGDA |
Model Number: | 4LZ-2.0D | Weight: | 2400kg | Warranty: | 12 months |
Product Description

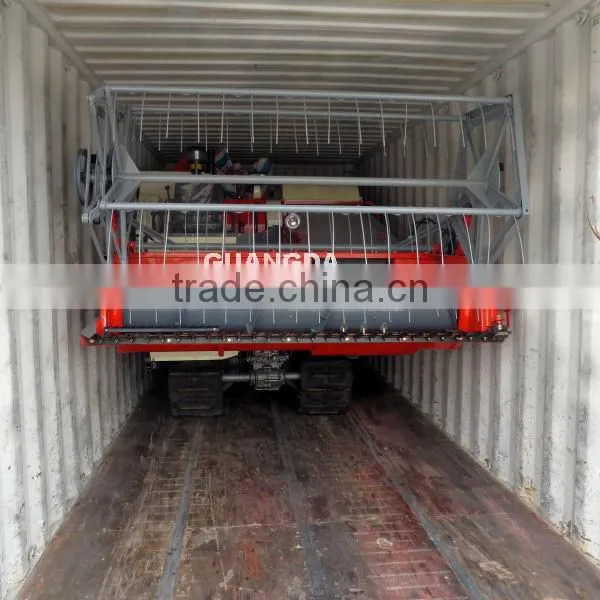

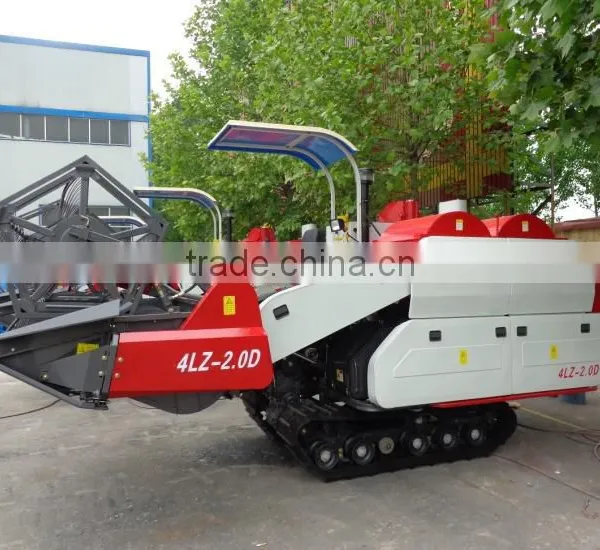

Rice combine harvester with track
Mechanical/hydraulic unloading
Working width 2m
High quality rubber track
75hp diesel engine
Suitable for wheat and rice
Combine Rice Harvester with Small Tank
Small tank capacity: 0.3CBM 150-250KG
Unloading way: because it is small tank, the grain will be put in bag directly when harvesting, there should be one people stand back of the machine to collect grain.
Combine Rice Harvester with Big Tank
Big tank capacity: 1.1 CBM 500-700KG
unloading way: there is an automatic discharging tube contact with the big tank, when the big tank is full, the alarm will ring remind collecting grain, then you need to discharge the grain into a trailer or other place.The big tank machine is controlled by hydraulic.
0.3CBM grain tank, 150-200kg--mechanical grain unloading
1.1CBM grain tank, 500-550kg--automatic hydraulic unloading
Model | 4LZ-2.0D |
Working Efficiency | 1.32-2.00 Acre/Hour |
Overall Dimension | 4700x2300x2700 mm |
Weight | 2400 kg |
Engine | 498BZT Diesel Engine |
Rated Power | 75 HP (55kw) |
Engine speed | 2400 rpm |
Fuel consumption per hectare | ≤30 Kg/Ha. |
Chassis | |
Rubber Track | 400x90x48mm (450x90x48mm optional) |
Transmission | HST F:3 / R:3 |
Ground Pressure | ≤18 Kpa |
Min. Ground Clearance | 240 mm |
Header | |
Cutting Width | 2000 mm |
Lifting method | Hydraulic |
Reel lifting | Hydraulic |
Steering | Hydraulic |
Cleaning | Fan (front blowing & rear suction), Sieving, Re-threshering |
Discharging | Mechanical discharging/Auto discharging |
Grain Tank | 0.3CBM (150-200kg)/1.1CBM(500-550kg) |
Total Loss | |
Rice | ≤3% |
Wheat | ≤1.2% |
Breakage | ≤1.5% |
Impurity | ≤2.0% |
Combine harvester working in field
Pre-sales | Service onlline for 24hours waitting fou your inquiry |
Sale-tracting | Provide specification,photos,and delivery cost for you. Answer your questions and solve your problems at any time. |
After-sale service | 12 months warranty for the machine without wearing parts. We will deliver damaged parts (except wearing parts) for free on quality problem within warranty period. Wearing parts are also sold jto match your machine if needed. |
After-sale service process | If some parts are damaged,please take some photos or short vedios firstly,and send us in tme. We will pass on your problems to our after-service department to deal with. Solution will be provided for you as soon as possible. |
Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.
1. Free accessories :free tool box and easy damage parts
2. Warranty: warranty time is 12 months after the goods delivery your port.
3. Color: according to your requirement
4. Logo: can stick your logos free if you need
5. Delivery time: 25 days after the down payment
6. Payment: The payment term is T/T (30% deposit in advance, 70%T/T as balance before delivery)
7. Various attachments and implements are supplied too for the tractors
8. Technical documents: technical service offered whenever you are in need
