Specifications
1T log loader with trailerMax. crane lifting height 3.5m
Sharing tractor hydraulic power
PTO/diesel/gasoline engine optional

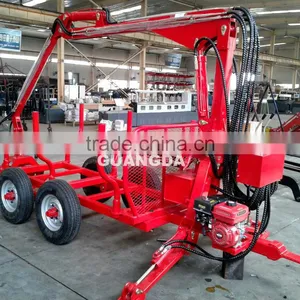

1T log loader with trailer
Max. crane lifting height 3.5m
Sharing tractor hydraulic power
PTO/diesel/gasoline engine optional
CE certificated
1T log loader with trailer
Max. crane lifting height 3.5m
Sharing tractor hydraulic power
PTO/diesel/gasoline engine optional
CE certificated
Features of Log loader with trailer:
1.ZM Series Log Loading Trailer for tractor is used in loading, unloading, transporting, stacking or unstacking of wood, grass and reed, bamboo etc.
2.Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation, quick mounting and dismounting.
3.used hydraulic oil commonly with tractor. The hydraulic elements are highly standardized, convenient for operation and maintenance.
Application of log loader with trailer:
1. ZM series timber trailer with crane can be combined with YTO,Foton,Lovol,Jinma,Chery,Foison,LT,QL,John Deere,Kubota, and etc.All these tractors can be matched 80-140hp with ZM8006 timber trailer.
2. ZM series timber trailer with CE Certificate,and ZM12006 timber trailer can combined with different kinds tractors home and abroad.Such asYTO,Foton,most our equipments be sold to Europe,Austalia,America and so on
Optional power: PTO set/diesel engine/gasoline engine
ZM1002 log loader with trailer
Specification of log loader with trailer
Model |
ZM1002 |
Matching Tractor or ATV |
10-25hp |
Net Weight |
1010kg |
Trailer spec. | |
Trailer Model |
TR10 |
Structure weight of trailer |
420kg |
Loading Capacity |
1000kg |
Loading Area |
0.85m2 |
Total Length |
3.6m |
Trailer Loading Length |
2.0m |
Total Width |
1.4m |
Frame tube dimension |
80x80x6mm |
Traction hole diameter |
33mm |
Tire size |
6.00-13 |
Crane spec. | |
Crane Model |
CR02 |
Structure weight of crane |
590kg |
Grapping area |
0.20 m2 |
Max. arm reach |
3.5m |
Lifting capacity/outreach(kg/m) |
400/2, 300/3, 200/3.5 |
Control Valve |
Multi-Lever |
Rotator |
CLB10 |
Recommended pump capacity |
50 l/min |
Rotating angle |
370° |
Grapple spec | |
Grab model |
TG019 |
Structure weight of grab |
90kg |
Max. grab opening width |
1140mm |
Max. grabbing log dia. |
80-420mm |
|
|
|
|
Other log loader with trailer offered
|
|
| 3T log trailer with crane | 5T log trailer with crane |
|
|
| 8T log trailer with crane | 8T log trailer with crane |
