Log splitter electric powered for sale
Wood splitting machine is an important auxiliary equipment in wood processing industry, mainly has vertical, horizontal two series. Its function is to use hydraulic works cut stump, large tree branches, large logs of wood segments and split the harder to reach chipper feed size requirements, or to split into raw material for other purposes. General specifications are 1000 mm, 1100 mm, 1200 mm, nominal pressure of 30 tons, 35 tons, 50 tons and so on, relatively horizontal models are easy to use, and traction mobile production machine can be produced according to user needs.

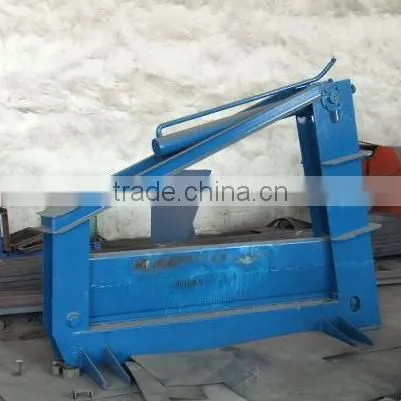

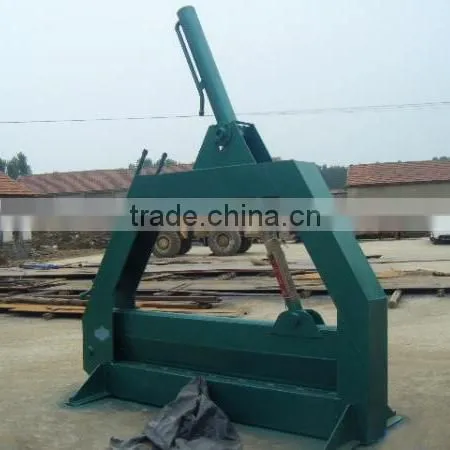

Guillotine shears type log splitter
Specification
Motor Power(kw) |
15 |
Flux of High pressure Gear Pump |
80ml/r |
Pressure of High pressure Gear Pump (Mpa) |
16 |
Cylinder Inside Diameter (mm) |
125 |
Piston cylinder diameter |
80mm, stroke 1600mm |
Forward Speed(mm/s) |
180 |
Backward Speed(mm/s) |
220 |
Max. Thrust(ton) (@pressure 16Mpa) |
45 |
Weight |
2 ton |
Overall size |
3200*1200*2300 |

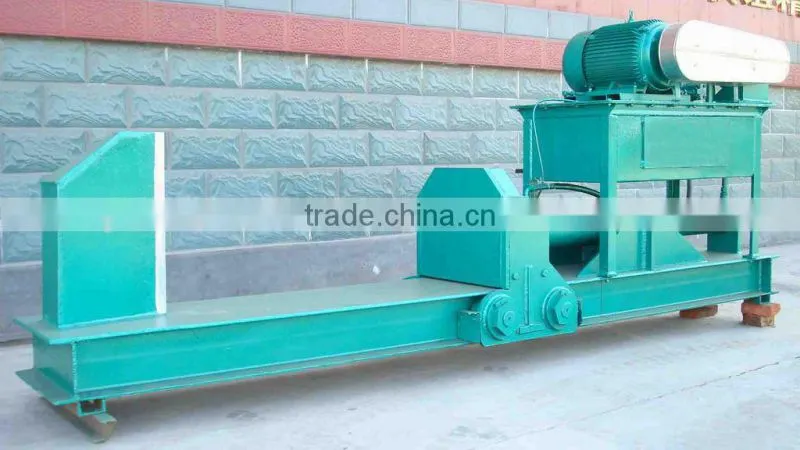

Two cylinder log splitter
Specification
Motor Power(kw) |
18.5 |
Flux of High pressure Gear Pump |
80ml/r |
Pressure of High pressure Gear Pump (Mpa) |
25 |
Cylinder Inside Diameter (mm) |
125 |
Piston cylinder diameter |
80mm, stroke 1300mm |
Forward Speed(mm/s) |
180 |
Backward Speed(mm/s) |
220 |
Max. Thrust(ton) (@pressure 16Mpa) |
55 |
Weight |
2.8 ton |
Overall size |
2600*1200*2300 |
Motor Power(kw) |
15 |
Flux of High pressure Gear Pump |
80ml/r |
Pressure of High pressure Gear Pump (Mpa) |
20 |
Cylinder Inside Diameter (mm) |
140 |
Piston cylinder diameter |
90mm |
Stroke(mm) |
1200 |
Forward Speed(mm/s) |
180 |
Backward Speed(mm/s) |
220 |
Max. Thrust(ton) (@pressure 16Mpa) |
45 |
Weight |
2.4 ton |
Overall size |
3200*2300*1200 |
Motor Power(kw) |
7.5 |
Flux of High pressure Gear Pump |
40ml/r |
Pressure of High pressure Gear Pump (Mpa) |
20 |
Cylinder Inside Diameter (mm) |
100 |
Piston cylinder diameter |
60mm |
Stroke(mm) |
60 |
Forward Speed(mm/s) |
180 |
Backward Speed(mm/s) |
220 |
Max. Thrust(ton) (@pressure 16Mpa) |
45 |
Weight |
0.8ton |
Overall size |
2200*800*1200 |

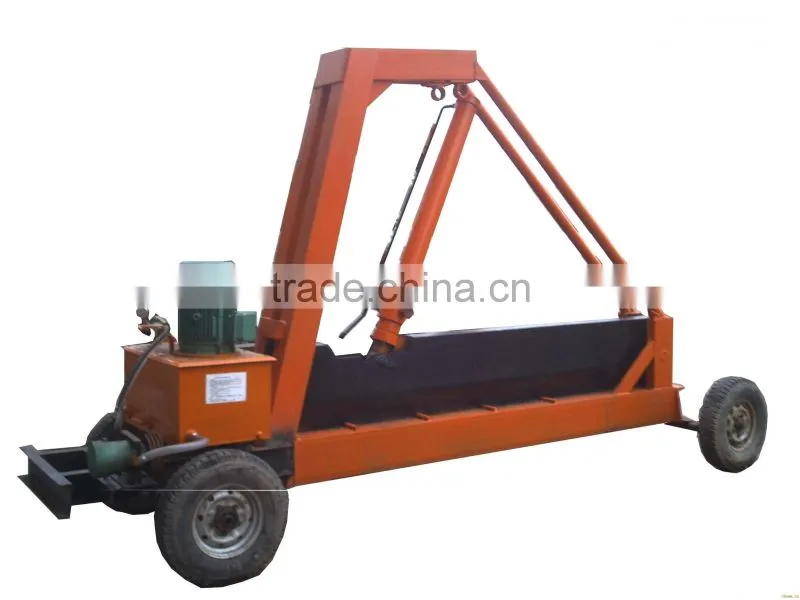

Movable Log splitter with wheels
Max. dia.(mm) |
1200 |
Productivity(ton) |
5-10 |
Motor Power(kw) |
15 |
Weight(ton) |
2.3 |
Overall size(mm) |
3200*1100*2640 |
Main shaft speed(r) |
1450 |
Blade no. |
1 |
Oil pump model |
YCYR14-1B-40 |
