Mini Feed Pelletizer for Livestock Food Processing Machinery Price

Mini Feed Pelletizer for Livestock Food Processing Machinery Price photo-1
Mini Feed Pelletizer for Livestock Food Processing Machinery Price photo-2
Mini Feed Pelletizer for Livestock Food Processing Machinery Price photo-3
US$ 200,000 - 400,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Guangda
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Tianjing; Qingdao;Ningbo;Dalian;Alataw Pass;
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Guangda
Model Number HKJ35
Type Feed Pellet Machine
Voltage 380V
Power(W) 55
Dimension(L*W*H) 1000*800*900MM
Weight 980 kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Mini feed pelletizer for livestock food processing machinery price:



1.The working principle of mini feed pelletizer:
1).it consists of the feeder, the conditioner, the flat die and the motor;

2).firstly, the material go through the feeder from which the mateial can flow into mini feed pelletizer at the best speed to make sure the ful load working of the pelletizer.

3).then the hot dry steam mix with the material and soften, steam the material for easier pelletizing, and this design can also extend its life.

4).finally,the softened and steamed material go through the flat die to be maked into pellet, we can adjust the flat die to get different size of pellets.



3. Technical parameters:



pellet making

machine

Type

Power of

main

motor
(KW)

Capacity
(t/h)

Power of

feeding

motor
(KW)

Power of

conditioner
(KW)

Diameter

of ring
(mm)

Size of

finished

pellets
(mm)

HKJ 25

11*2

0.2-0.3

0.75+0.55

2.2

250

6-10

HKJ32

37

0.3-0.6

0.75+0.55

2.2

320

6-10

HKJ35

55

0.5-0.8

0.75+0.75

2.2

350

6-10

HKJ40

75

0.7-1.1

1.5+0.75

2.2

400

6-10

HKJ42

110

1.0-1.5

1.5+0.75

5.5

420

6-10

HKJ508

132/160

2.0-3.0

1.5+0.75

7.5

508

6-10




3. How to Choose A Perfect mini feed pelletizer :
Pellet making machine mini feed pelletizer takes the circular motion as the principle. The press roller, main shaft and die mould are of high quality alloy steel. There are common two design of mini feed pelletizer: rotating rollers with stationary die or running die with stationary rollers.



Though the two kinds of mini feed pelletizer can both make wood pellets and feed pellets, there is slightly difference. Roller driven pelletizer is more suitable for making biomass pellets, especially for making hardwood pellets; die driven pellet making has good performance in making feed pellets and soft wood pellets.



Then, let us talk about the engine of pellet press. There are two choices, flat die mini feed pelletizer with electric motor and diesel engine. Electric mini feed pelletizer is more energy-saving and environmental protection, while you must make sure there is enough electricity in your pellet making sites .

Picture:

Mini feed pelletizer for livestock food processing machinery price

Structure:

Mini feed pelletizer for livestock food processing machinery price

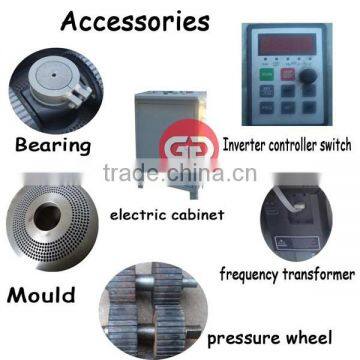

Spare parts:

Mini feed pelletizer for livestock food processing machinery price



Mini feed pelletizer for livestock food processing machinery price



Raw materials:

Mini feed pelletizer for livestock food processing machinery price

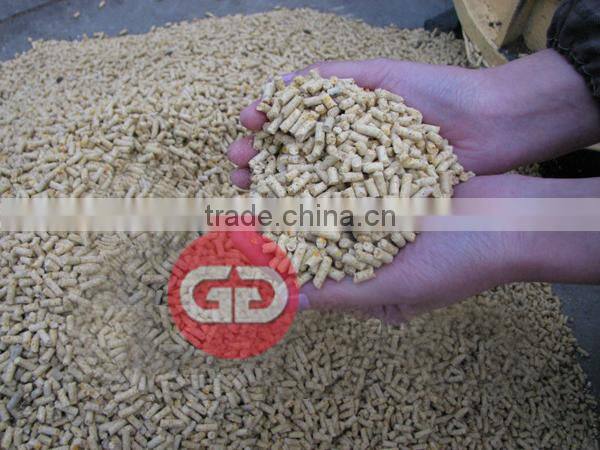

Finished pellet samples:



Mini feed pelletizer for livestock food processing machinery price



Factory processing site:

Mini feed pelletizer for livestock food processing machinery price



Delivery and package:

Mini feed pelletizer for livestock food processing machinery price



Mini feed pelletizer for livestock food processing machinery price



Pre-Sales Service:

 1)  Offering comprehensive technical and business consultation services;

2)  Proposing the most suitable scheme and rabbit food pellet making machine for our clients;

3)  Designing and fabricating targeted products according to the special requirements of clients;

4)  Training periodically high qualified service technician.

After-sales Service:

1)  Highly inspecting equipments in every working procedure, quality comes first;

2)   Fast & Safe Delivery for rabbit food pellet making machine with standard exporting packages;

3)  Assisting our clients for foundation construction of equipments;

4)  Dispatching engineers to install and debug equipments;

5)  Training the first-line operators on site;

6)  Regularly visit clients to solve production problems

7)  Providing life-long maintenance service;

8)  Providing technical exchanging;
