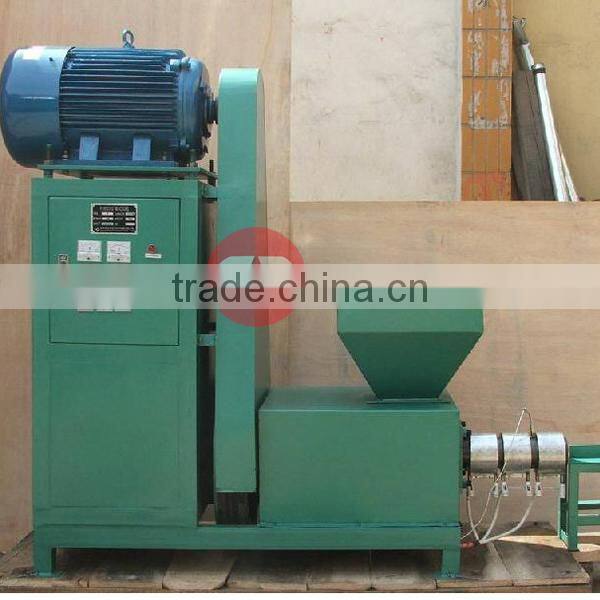

Rice husk/ sawdust / wood charcoal making machine plant:
Indruction for charcoal briquette:
Briquettes are made by grinding Biomass and sawdust through charcoal making machine plant into a homogeneous pulp and forming this into a briquette under very high pressure. High pressure & pressing releases one of the natural components of wood - lignin which has the property of becoming liquid at high pressure (temperature) and, as it subsequently cools, it binds the wood together in its new form Briquettes.
After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body of charcoal making machine plant. The bio-fuel carbon maintains the cleanliness and hygiene, and is suitable for family heating and barbecuing.
The characteristics of the wood charcoal making machine plant:
♦. This small and cheap wood charcoal making machine's design is reasonable, manufacturing quality and reliable, has a simple structure, convenient operation, small volume, covers an area of less, save work and save electricity.
♦. Design of automatic control electric heating device, can randomly adjust the dry humidity of materials, guarantee the stability of the material forming, improve the wood charcoal making machine plant work efficiency.
♦. This product's main parts adopt wear-resisting material through special processing, so can suppress the production continuously, and durable.
♦. Suitable for all kinds of biomass raw material and forming, and low energy consumption, high production efficiency
♦. Changing the three bearings for four of the old wood charcoal making machine plant heart, increase the stability and durability of the machine.
♦. Reforming the old oil lubrication for oil-immersed lubrication, as long as no shortage of oil, can be used for many years.
♦. Increasing pitch increasing feed rate, thus greatly increased the production.
♦. Improved the structure of molding drum, reduced the mechanical and the friction of the raw materials, increase the density of the mandrel.
The working principle of the wood charcoal making machine plant:
Sawdust /wood charcoal making machine plant uses a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature.In the briquetting process when using wood charcoal making machine plant lignin serves as the glue and combines the particles of wood together,thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal,quadrangular, square,etc. As your requirement, we can also change the shape to order. And the diameter of briquettes are from 50-80 mm. Moreover non-binder needs to be used during this process.
Brief Introduction of wood Charcoal Making Machine Plant:
Our high working efficiency wood charcoal making machine plant is mainly used for pressing sawdust, wood, branches, leaves, etc the organic powdery material into biomass briquettes under high pressure. It is a kind of enviroment protect and energy-saving product which can turn "organic waste" into "wealth".
According to thesize of moulds, our machines can be devided into 50, 60, 70, 80, etc,
several different types.
The small size and high working efficiency wood charcoal making machine plant adopts various types of biomass powdery material, under the action of screw propeller and heating rings, to press the biomass materials into solid stick types of briquettes with or without a hole in the core section.
Applicable Raw Material of wood Charcoal Making Machine Plant:
Any types of Agro-forestry waste and forest waste can be used by this charcoal making machine plant for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, cocon
Requirements of Raw Materials:
1. The inlet size of raw materials must be less than 3mm. If the raw materials size are bigger, you must crush them with wood crusher firstly. And then comes the wood charcoal making machine plant with high efficiency. The smaller the raw material, the smoothly the briquettes surface, and the better the hardness and strength.
2. The moisture of raw material for briquetting, must be less than 12%, and the moderate is 8%-12%, otherwise, the outlet briquettes are easily broken and have crevice. So before briquetting, you shall check the moisture content, if too wet, please drying them with sawdust dryer or under shunshine.
Small wood charcoal making machine plant spare parts:
Technical Parameters of small wood charcoal making machine plant :
| Type | GD-50 | GD-60 |
| Capacity | 180-200kg/h | 200-250kg/h |
| Motor power | 15KW | 15-18.5KW |
| Diameter of briquettes | 40mm, 45mm, 50mm | 50mm, 60mm |
| Dimension | 1.7x0.66x1.5m | 1.7x0.66x1.6m |
Production Line Equipments for Wood Charcoal Making Machine Plant:

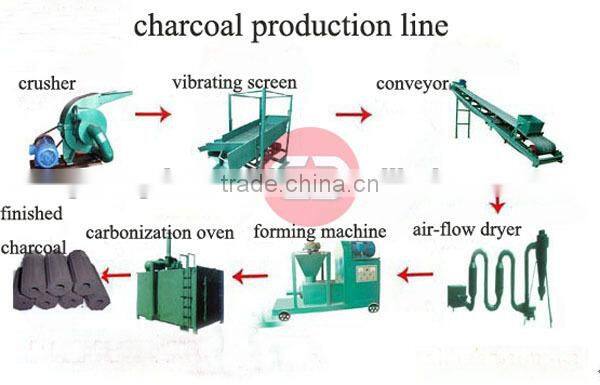

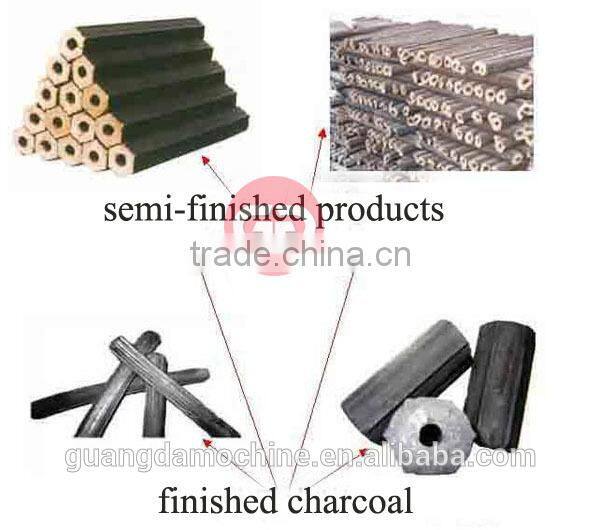

We can not only provide the briquette wood charcoal making machine plant, but also the whole production line equipments such as:Crusher (crusher the raw material into powdery material which less than 3m) → Dryer (drying the powdery material so that the moisture less than 12%) → Briquette Machine (making briquettes from biomass powdery material) → Carbonization (Furnace) Cave (carbonize the biomass material into charcoal briquettes)
Charcoal making machine plant production line:
Factory processing site:
Delivery and package:
Pre-sale service
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and wood charcoal making machine plant for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
After-sales Service:
1) Highly inspecting equipment in every working procedure, quality comes first;
2) Fast & Safe Delivery;
3) Assisting our clients for foundation construction of equipment;
4) Dispatching engineers to install and debug wood charcoal making machine plant for our customers;
5) Training the first-line operators on site;
6) Regularly visit clients to solve production problems;
7) Providing life-long maintenance service;
8) Providing technical exchanging;
If you have any need or question, please contact me freely.
Skype: Didofu1107 E-mail:xltxc @gdbloc.com
Tel:+86-371-56668520 Fax:+86-371-55989982
Mob:+86-13073797095
Or visit our company website:
Looking forward to building the long term business relations with
you.
