Specifications
1.Mesh belt dryer for dehydration vegetable & fruit
2.Belt drier can reach a good product quality
3.Easy use for belt dryer
2014 Hot Selling & High Quality Mesh Belt Drying machine

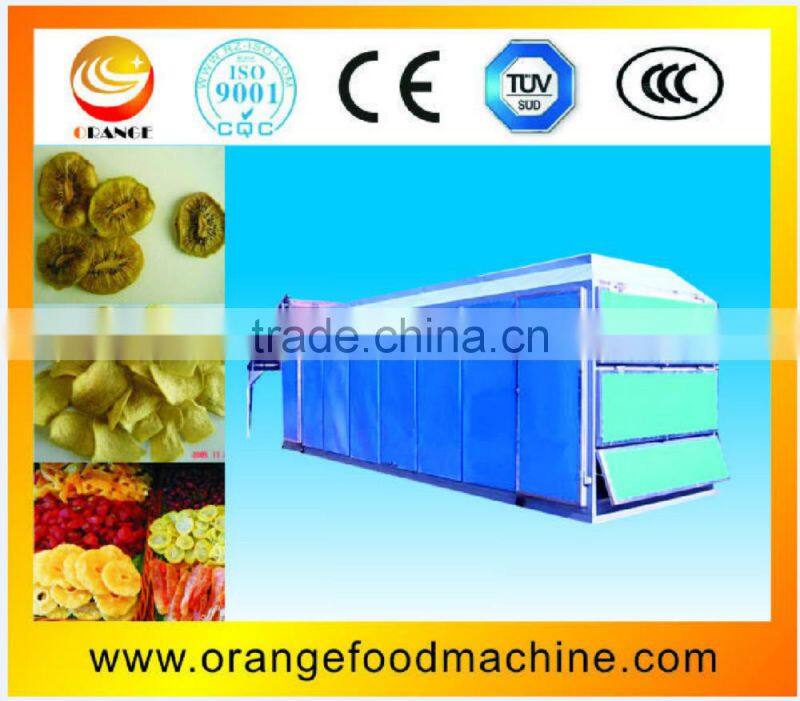

Good quality mesh belt dryer for fruit and vegetable

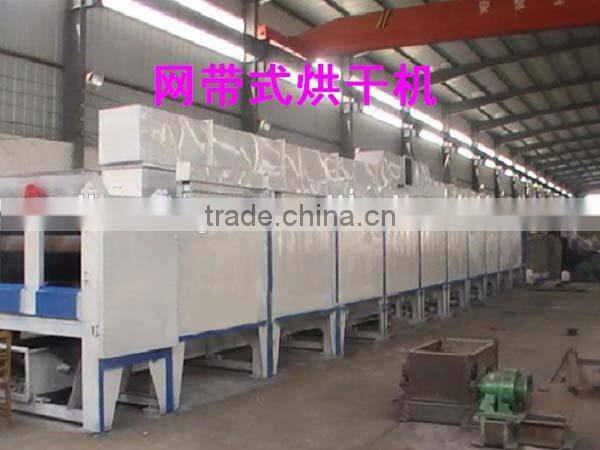

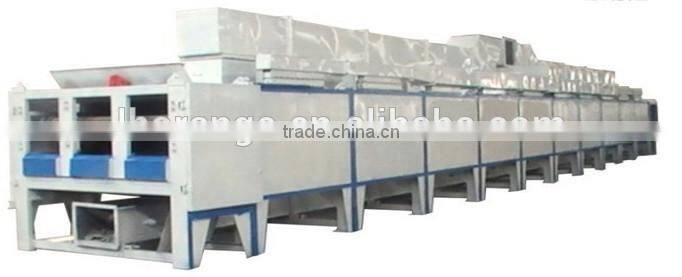

Introduction of mesh belt dryer:
Vegetable dryer can meet to dry different vegetables, such as root, leaf, halm, tuberous root, big granule in batch. Meanwhile it can maintain content of nutrition, color, ect of vegetable in most extent.
The type raw materials are garlic, cushaw, giantarum, white turnip, yam, bamboo shoot, capsicum, onion, apple, when operation, air will be entered into the dryer and heated through heat exchanger, Being adapted scientific a cycle method, the hot air will pass though raw materials to be dried on the bed and carry out uniform heat exchange action of cycle fan, the hot air stream inside each unit of the dryer will carry out hot air cycle, Final air with low temperature high damp will be out, The whole drying process with stably and high effect will be finished.
Technical Parameter of mesh belt dryer:
| Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | |
| Unit No. | 4 | 5 | 4 | 5 | 4 | 5 | |
| Belt width (m) | 1.2 | 1.6 | 2 | ||||
| Drying section length (m) | 8 | 10 | 8 | 10 | 8 | 10 | |
| thickness of the material to be covered (mm) | 10-80 | ||||||
| Temperature °C | 50-120 | ||||||
| steam pressure (Mpa) | 0.2-0.6 | ||||||
| steam consumption (Kg/h) | 120-130 | 150-375 | 150-375 | 170-470 | 180-500 | 250-800 | |
| heat exchange area (m2) | 272 | 340 | 352 | 440 | 448 | 560 | |
| Drying time (h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.2-1.5 | |
| drying strength (KgH20/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | |
| Fan No. | 5 | 6 | 5 | 6 | 5 | 6 | |
| Total Power(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 19.7 | 23.7 | |
| Demension (m) | length | 10.05 | 12.05 | 10.05 | 12.05 | 10.05 | 12.05 |
| width | 1.5 | 1.5 | 1.91 | 1.91 | 2.33 | 2.33 | |
| height | 3.15 | 3.15 | 3.15 | 3.15 | 3.65 | 3.65 | |
| N.W (Kg) | 4800 | 5780 | 5400 | 6550 | 6350 | 7800 | |
More information, please contact:
