Coffee Corn Processing Line

Coffee Corn Processing Line photo-1
US$ 9,999 - 9,999.9 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ORANGE
Model Number:
OR-QP50A
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name ORANGE
Model Number OR-QP50A
Type Other, coffee corn processing line
After-sales Service Provided Engineers available to service machinery overseas

Most Popular High Quality Coffee Corn Processing Line

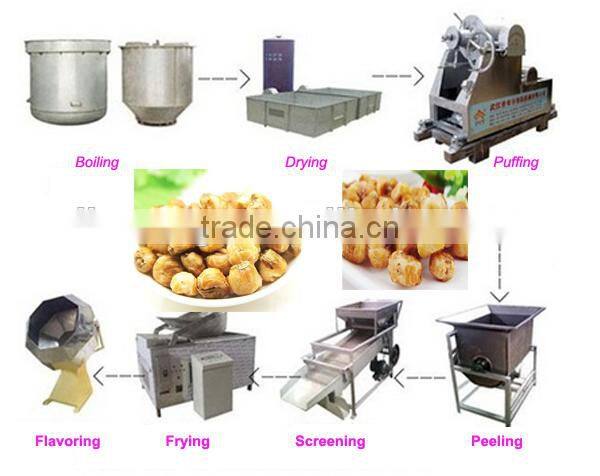

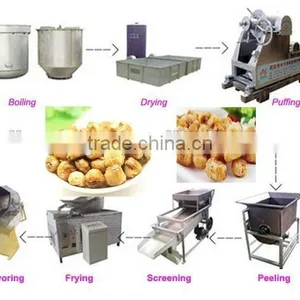

Process flow:

Waxy-corn--boiling---drying---air stream puffing-----peeling---screened----frying----flavoring machine--package

The characters and technical parameter of coffee corn



Main characters

1.Large output:Coffee  corn:13kg/time Wheat:15kg/time Rice:16kg/time

2.Energy saving:Expanded equivalent material than small extruder 1/3 of energy conservation

3.Safe and reliable: the whole body with a thick wall steel structure of casting and become, each device installed

with safety valve, relief valve, outside the shield, the tank mouth and a sealing gasket, reaches a certain pressure,

automatic discharge gas, the use of absolute security;

4.Extrusion rate, puffed rice white: traditional small extruder extrusion wheat puffing rates low, puffed rice

whiteness insufficient, yellow.

5.simple operation, low labor intensity: a simultaneous operation of two, even if the workers can also be operated;



Applicable range:

Suitable for rice, millet, corn, sorghum, buckwheat, peanuts and beans and other grains.



Technical Parameter:

1)Boiling pot

Technical Parameter:

 Power:15/kw

 Voltage:380V/50Hz    220V/60Hz

 Contour dimension:1600*1500*1000mm

2) Drying Machine



3) Puffing machine





Model

Energy

Power

Weight

Dimension

Voltage

OR-JJK

Natural gas,liquid gas,coal and biogas

0.75kw

480kg

1720*880*1350mm

380V/220V

OR-QPD

Natural gas,liquid gas,coal and biogas

0.75kw

460kg

1720*800*1320mm

380V/220V

4) Peeling machine

Voltage:220/380v

Power:1.5kw

Capacity:150kg/h

Dimension:800*600*900mm

5) Screening Machine

Voltage:220V

Power:2.2kw

Capacity:280kg/h

Dimension:2500*850*1250mm

6) Frying Machine



Voltage:380v

Oil volume:400-450L

Temperature range:0-350℃

Coal consumption:7.5-15kg/h

Capacity: 300kg/batch

Dimension:2550*1700*1500mm

7) Flavoring Machine

Voltage:380v

Power: 750W

Weight:200kg

Volume Diameter:900mm
