Electro Hydraulic Brake for Crane,Hoisit
Product Description:
YWZ4B series hydraulic drum brake ,crane brake,industybrake main swaying hinged points are equipped with high efficient long life
OPERATING CONDITIONS
Ambient temperature:- 20C --- + 50C
Circumferential working environment must be free of combustible, explosive and corrosive gas(es).
Air relative humidity should not be more than 90%.
Sea level altitude for application accords with GB755-2000 standard.
The anticorrosive products should be adopted if such products are eroded by rain and snow in the open air or where there is corrosive gas or medium
Voltage:380V 50HZ
Main features
Main swaying hinged points are equipped with self lubricated bearings with high efficiency of transmission and long service life.
Brake torque is shown directly.
Manual release is equipped which is convenient for maintenance.
Automatic compensation device can realize the automatic compensation when the brake linings are worn.
The interlocking equal clearance device can avoid adherence of the brake lining on the brake drum.

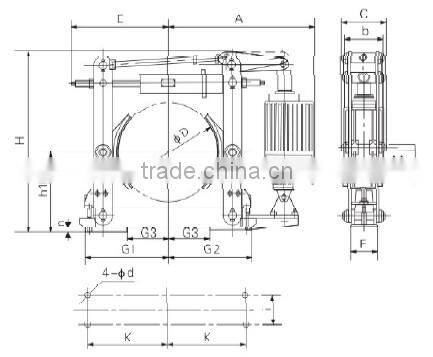

Drawings:
Technical parameters:
