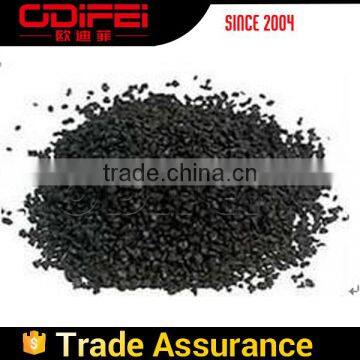

1-6mm Rubber Granules Made by Waste Tire Rubber Crumb Plant
- 50 Set / Sets per Month
- Qingdao Dalian Tianjin Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Rubber Cutting Machine | Place of Origin: | Hainan, China |
Brand Name: | ODF | Model Number: | XKP- 400 450 560 | Voltage: | 380V |
Power(W): | 70KW | Dimension(L*W*H): | 2.3*3*4.5 | Weight: | 9.5T--17T |
Certification: | CE ISO9001 | Warranty: | 3 years warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1-6mm Rubber Granules Made by Waste Tire Rubber Crumb Plant
Our whole production line is used to make waste tires and rubber into rubber crumb and rubber powder.

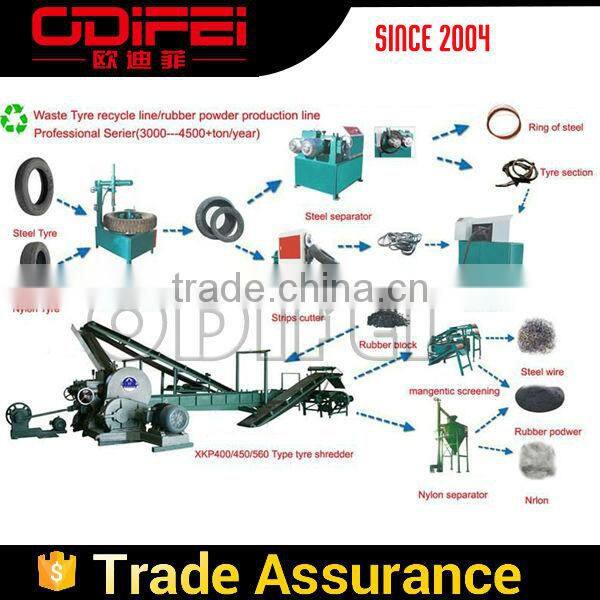

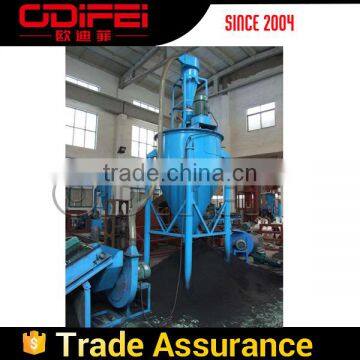

Major flow: Waste tires-circle cutting-strip cutting-block cutting-grind into powder-magnetic separating-separation-packing-put in storage.
Your benefit and Profit
Short response time and expert support in emergencies
1.Service hotline
2.Highly qualified and experienced service engineers
3.General overhauls on site and at the RTE Service Centre

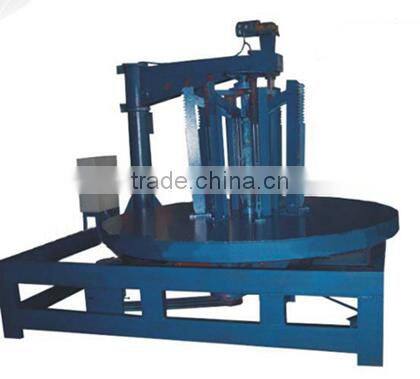

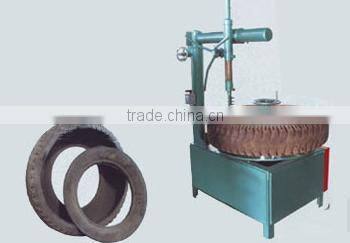

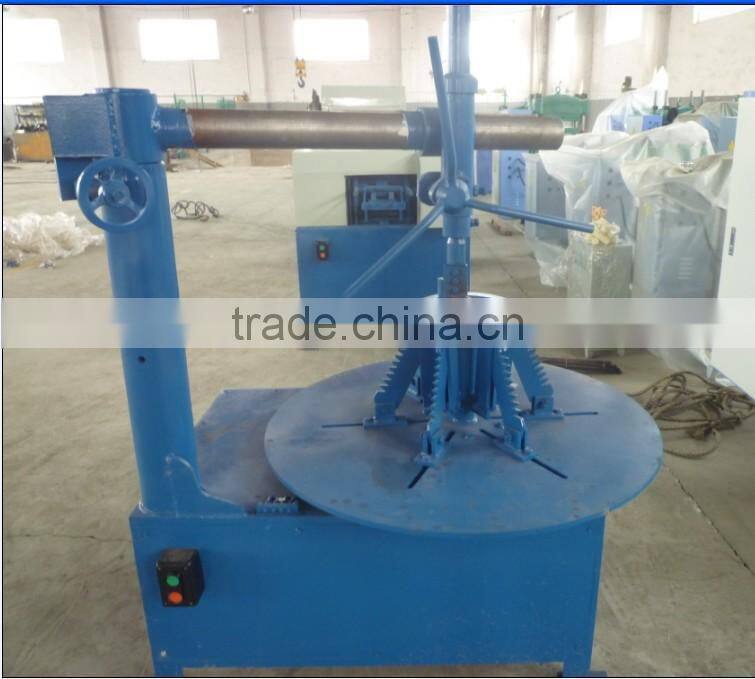

1,Tire circle cutter
( to cut and open the joint of tire's side and top )
Dimension(L×W×H) | 1300×900×1200(L×W×H) |
Production efficiency(tire/h) | 40(tire/h) |
Motor power(KW) | 3KW |
Motor rotating speed (r/min) | 1440(r /min) |
Voltage(V) | 380V |
Frequency (HZ) | 50HZ |
Machine weight (kg) | 300kg |
Size of applicable tyre | 650 -1200 |
2, Rims separator
it is used to separate the steel rims around the tire to avoid the harm to the machine.
Dimension(L×W×H) | 1300×900×1200(L×W×H) |
Production efficiency(tire/h) | 40(tire/h) |
Motor power(KW) | 3KW |
Motor rotating speed (r/min) | 1440(r /min) |
Voltage(V) | 380V |
Frequency (HZ) | 50HZ |
Machine weight (kg) | 300kg |
Size of applicable tyre | 650 -1200 |
3,Tire strip cutter
: it is used to cut the tire cirlce into strips 5x8 cm .
Dimension(L×W×H) | 1300×900×1200(L×W×H) |
Production efficiency(tire/h) | 40(tire/h) |
Motor power(KW) | 3KW |
Motor rotating speed (r/min) | 1440(r /min) |
Voltage(V) | 380V |
Frequency (HZ) | 50HZ |
Machine weight (kg) | 300kg |
Size of applicable tyre | 650 -1200 |
4,Tire slice cutter
: it is used to cut the strips into small chunks about 3.5 cubic centimeter.
Dimension(L×W×H) | 1300×900×1200(L×W×H) |
Production efficiency(tire/h) | 40(tire/h) |
Motor power(KW) | 3KW |
Motor rotating speed (r/min) | 1440(r /min) |
Voltage(V) | 380V |
Frequency (HZ) | 50HZ |
Machine weight (kg) | 300kg |
Size of applicable tyre | 650 -1200 |
5, XKP Tire Crusher (With 5Cr6MnMo rollers)
Application:It’s used for grinding the slice into smaller mesh powder through the vibrating screen as you need.
Model No. | XKP-400-BB | XKP-450-BB | XKP-560-BB | XKP-560L-BB |
Diameter of front roll | 400 mm (groove) | 450 mm (groove) | 560 mm (groove) | 560 mm (groove) |
Diameter of back roll | 400 mm (groove) | 450 mm (groove) | 510 mm (groove) | 560 mm (groove) |
Drum working length | 600mm | 760mm | 800mm | 800mm |
Front roll liner speed | 34.5 m/min | 38.0 m/min | 40.6m/min | 44m/min |
Roll ratio | 1:2.5 | 1:2.5 | 1:2.5 | 1:2.5 |
Max roller spacing | 10 mm | 10 mm | 10 mm | 10mm |
Motor power | 30KW/45KW | 45KW /55KW | 75KW | 110 KW/132KW |
Motor revolution speed | 980 r/min | 980 r/min | 980 r/min | 760 r/min |
Weight | 8 T | 12 T | 13 T | 25T |
Professional services
1.5 years experience in this filed
2.Credible quality ,durable
3.Customizable
4.Delivery in time
5. After tested this machine then shipping
why choose Odifei ?
1.Package:
Free-fumigation Safe Export Wood Case.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3.OEM and ODM:
Changing on design or color: acceptable(welcome)
Develop on artwork and sketch : acceptable,could paste your own logo for your location markets
4.QC:
Third party inspection:acceptable
1 year guarantee for quality problems.
5.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
Welcome:
Welcome to visite our factory at any time .
