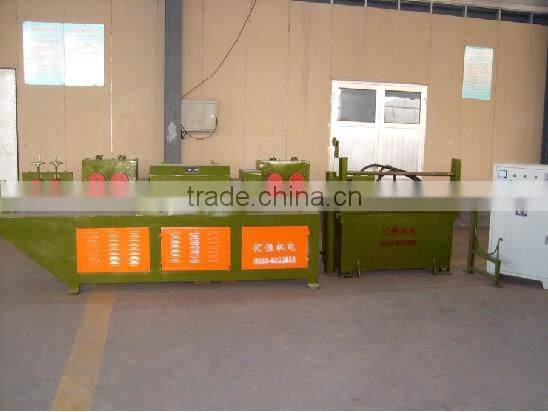

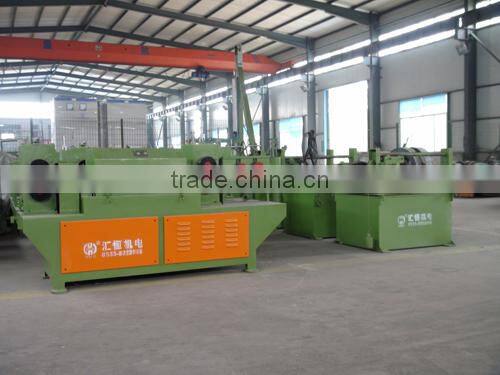

Model-GTJ8-16/128

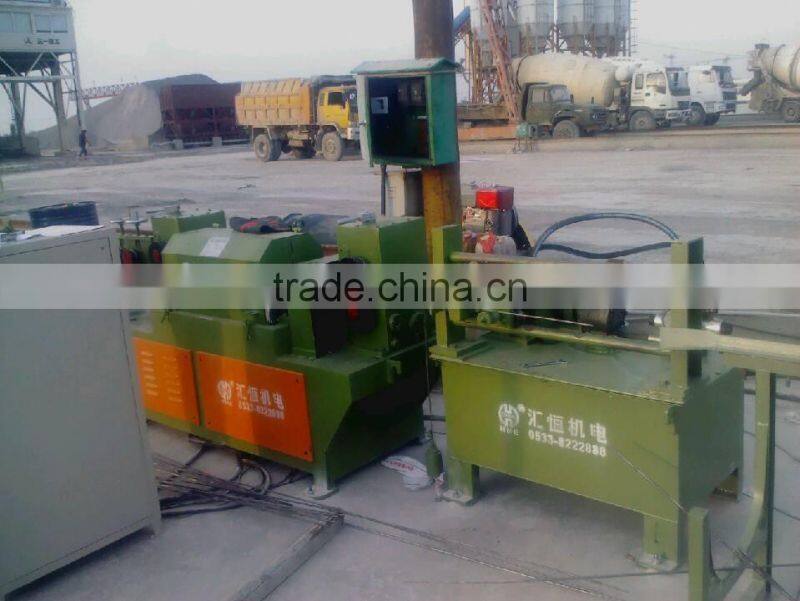

Intallation and adjust for our customer
Introduction:
GTJ8-16/128 CNC steel bar straightening and cutting machine ,is a application of multiple roll press straightening with flying shear to cu-off , CNC counting system,frequency control and two-way reverse discharge frame . It can be used in 8——16mm steel bar high precision straightening, and applied widely in cold-rolled ribbed bars, hot-rolled ribbed bars 400,spiral reinforcement, cold-drawing round steel of low-carbon or medium carbon with 130m/min working speed . The advantage is CNC counting with high precision and long service time . Meanwhile ,The equipment is known for it’s low-cost, no damage rib ,once-time cutting ,small noise and tremor ,and equipped with protective and automatic counting device . All the features no matter in appearance or quality are the leader manufacturer in China .
Technical parameters
Specification |
Parameters |
Straightening diameters(mm) |
Φ8-Φ16 |
Specified (cut) length (mm) |
2000-9000 (Can be prolonged ) |
Total power (KW) |
37-44 |
Cutting system mode |
CNC servo cutting |
Working speed (m/min) |
90-130 |
Cutting tolerance (mm/m) |
±2 |
Discharge mode |
Turning type |
Configuration :
GTJ8-16/128 steel bar straightening machine (1 set )
CNC servo cutting system (1 set)
Feeding framework (1 set)
CNC counting system device (1 set )
Full-automatic control cabinet (1 set )
Fittings including (some sets)
[ Notice ]
- All the equipments above are the standard specifications with practical and high-productive features . No model you need, we accept customized .
- All the drawings are designed by R&D department and manufactured by our factory, so we could promise the quality and delivery time .
- We devote ourselves into building long-term business relationship.
- You are welcomed to visite our manufacturing base at any time .
Certificate and patent
