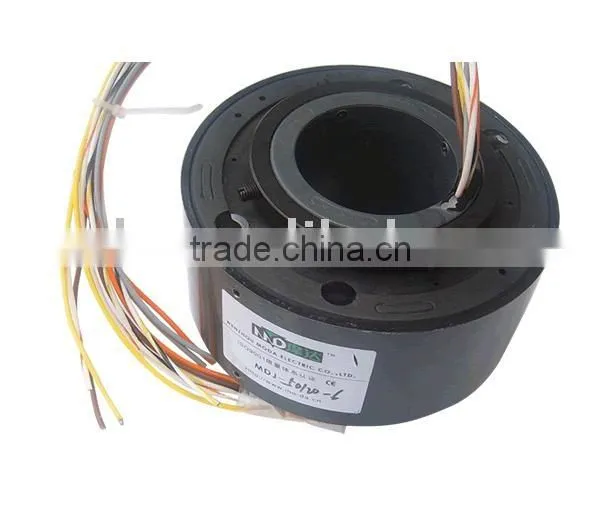

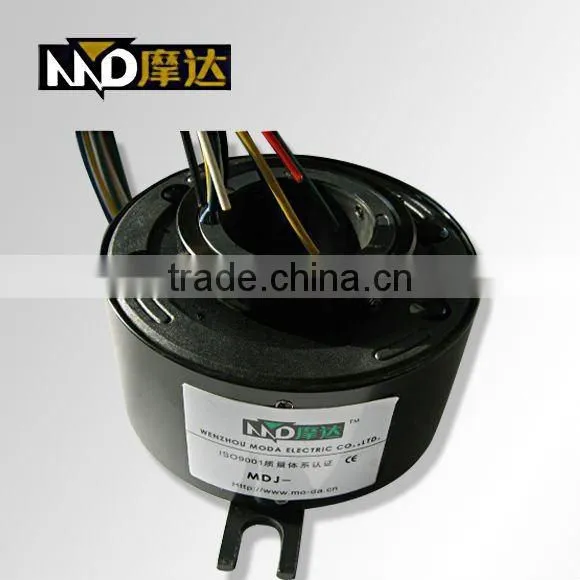

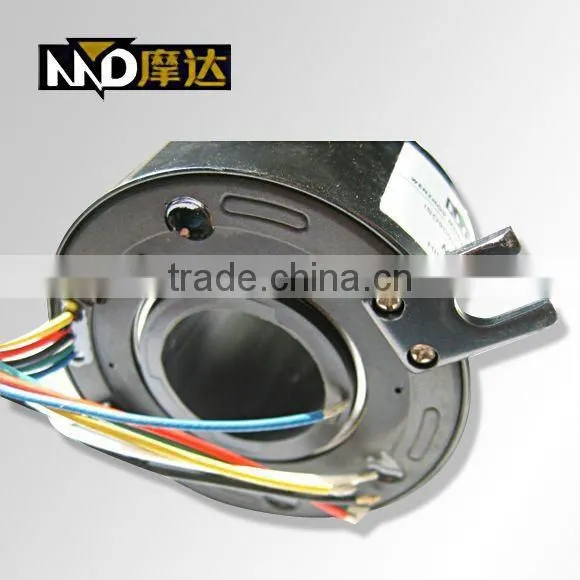

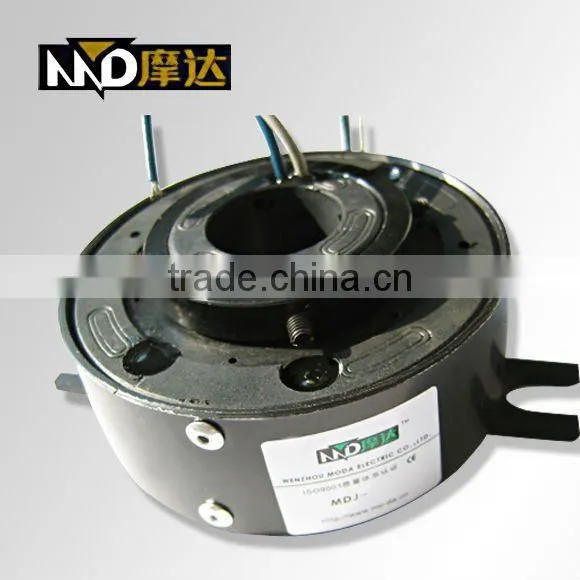

Through Bore 50MM Slip Ring/ Electric Swivel Slip Ring
US$ 40 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
moda
Model Number:
MDH50120
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port OR Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MDH 0317 Through Bore Slip RingUS$ 10 - 50MOQ: 1 Piece -
MDH60180 Slip Ring )Conductive / Slip Ring/Rotary JointUS$ 50 - 300MOQ: 1 Piece
-
Through 50mm Bore Slip RingUS$ 50 - 300MOQ: 1 Piece
-
MDJ Non-standard Electric( Slip Rings)US$ 10 - 200MOQ: 1 Piece
-
MDH 1052 Through Bore Slip RingUS$ 90 - 100MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
moda
Model Number
MDH50120
THROUGH BORE SLIP RING & electric swivel slip ring
Electrical Data:
| Lead | AWG14,16 and AWG22,color Tinning wires,PTEE insulated | ||||||||
| Standard Lead lengths | 300mm(other length on request | ||||||||
| Voltage | 600VAC | ||||||||
| Insulation Resistance | ≥1000MΩ/500VDC | ||||||||
| Dynamic contact Resistance | 0.01Ω | ||||||||
Mechanical Data:
| Operate Speed | 0-250rpm continuous | ||||||||
| Contact material surface | Brush:silver alloy,Ring:silver-gift copper | ||||||||
| Bearing | Steel ball bearings | ||||||||
| Housing | Enginerring Plastics | ||||||||
| Temperature Range | -40Degree to 80 Degree | ||||||||
MDH50120 Series( Through-bore slip ring) dia.50mm :
| Make use of advance sheaf brush technology to design and manufacture | ||||||
| Suffice 360°unrestrained continuous rotation to transmitting power and / or data. | ||||||
| Product modularize | ||||||
| Long life and maintenance-free operation |
Description:
| A( slip ring )can be used in any electro-mechanical system that requires unrestrained,continuous rotation while transmitting power and / or datefrom a stationaryto a rotating structure. A slip ringis also called a rotaryelectrical interface,collector,swivel,or a rotary joint. A slip ring can improve system performance by simiplying operations and eliminating damage-prone wires dangling from movable joints. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A slip ring are metal rings that provides a continuous electrical connection through brushes on stationary contacts. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| It's configuration is cloumn type. Each ring lies along the drum axis,like threads on a bolt. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The MDJF1052 uses a sheaf brush technology which offers several davantages over conventional slip ring contacts,including multiple points of contact per brush bundle,low contact force per brush,low noise and low contact wear rates.In addition,sheaf brushes do not require lubrication and produce virtually no wear debris.
Appliancation:
|
