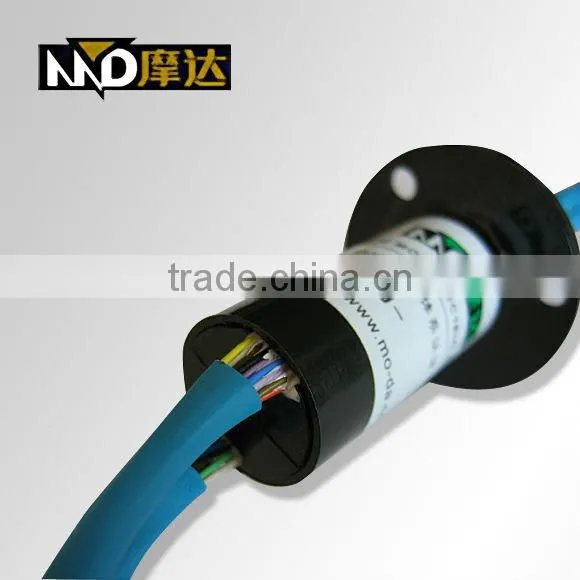

Slip rotary electrical connectors
capsule slip ring
* 6 &12 &15&18 rings
* 12.5mm dia
* various type of flange available
* gold to gold contact material
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring.It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SRC Series find typical applications in
1. CCTV pan/tilt cameras and pedestals
2. Robots and downhole inspection equipment
3. Test and measuring equipment
4. Manufacturing and process control equipment
5. Computer peripherals
6. Display equipment Medical equipment
Electrical data:
Voltage |
240VDC-240VAC |
Continous Curent(amps) |
2A/ring |
Lead size |
AWG28 silver plated,PTFE insulated |
Standard Lead lengths |
250mm (other lengths on request) |
High pot |
500VAC@60Hz |
Insulation Resistance |
200MΩ/500VDC |
Dynamic contact Resistance |
less than 0.01Ω |
Mechanical data:
Operate Speed |
250rpm |
Temperature range |
-20°Cto+80°C |
Contact material surface |
Gold-gold |
The stainless steel bearings |
The little ball double density seals bearing |
