Miniature Slip Ring

Miniature Slip Ring thumbnail-1
Miniature Slip Ring photo-1
US$ 10 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MODA
Model Number:
MDC-6
Contact Supplier Request Quote Chat Now
Zhejiang Hoda Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name MODA
Model Number MDC-6

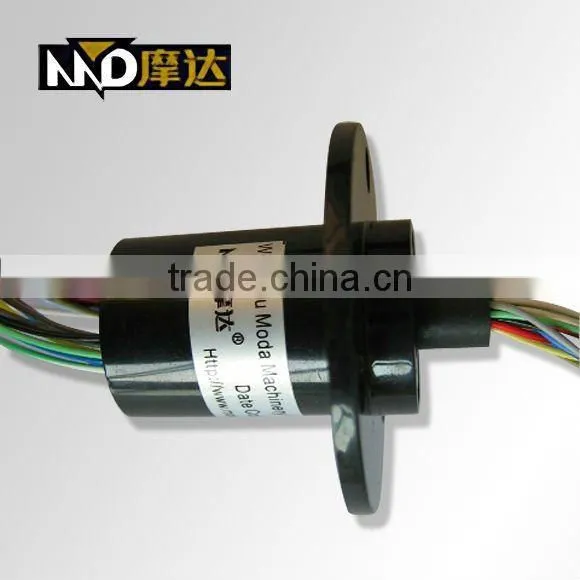

miniature slip ringminiature slip ringminiature slip ringOD 22mm, 6circuits
Low torque
Compact dimemsions
Quick shippments

The MDC22-6, with 6 wires and compact 12.5mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.



MDC22-6 Specifications

  • Contact Material

    Gold alloy brush,Gold plated rings

  • Current Rating

    2A, per ring, maximum

  • Number of Circuits

    12

  • Operating Speed

    250 rpm* continuous

  • Housing Material

    Engineering Plastics

  • Lead Wire

    UL Teflon® Awg28,color-coded, silver-plated

  • Lead Lengths

    250mm

  • Voltage

    210 VDC / 240 VAC

  • Operating Temp.

    -40°C to 80°C

  • Torque

    Approx. ≤0.35 g·m (for reference )

  • Dielectric Strength

    ≥600V@50Hz between each circuit

  • Insulation Resistance

    600MΩ@ 300VDC

  • Noise

    15 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm

  • Resistance to pull

    Radial 2KG,Axial 0.5KG

  • Protection

    IP51

  • Features
    • 12 circuits
    • Compact size: 12.5mm(diamter)*25.5mm(L)
    • Gold-on-gold contacts
    • Compatible with data bus protocols
    • Transfers analog and digital signals
    • Speeds up to 250 rpm continuous
    • Precision ball bearings meet or exceed life requirements for most commercial applications
    Benefits
    • Smooth running
    • Low torque
    • Compact dimemsions
    • Quick shippments
    Lead Wire Color Code

    Circuit No. 1 2 3 4 5 5
    Color BLK BRN RED ORN YEL GRN
    Circuit No. 7 8 9 10 11 12
    Color BLU PURPLE GRY WHT RMK AZURY
    6 circuits/per group, groups with tags
    Type Application

    CCTV pan / tilt camera mounts Electrical test equipment
    Manufacturing and process control equipment Medical equipment
    Robotics rotary index tables
    Miniature cable reels Laboratory equipment
