Help CenterHigh Quality Best Price PX-800 Disc Wood Chipper Machine/disc Wood Crusher
Related Products
-
Hot Sale 8-10t/h Disc Wood Chipper Machine/disc Wood CrusherUS$ 1,000 - 2,000MOQ: 1 Set -
CE Approved High Quality High Capacity Disc Wood Chipper Machine/disc Wood CrusherUS$ 2,000 - 5,000MOQ: 1 Set
-
Factory Manufacture Wood Chipper/Wood Crusher MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
Disk Wood Chipper for Sale +86 13526426352US$ 2,000 - 5,000MOQ: 1 Set
-
Wood Chipper for Sale Wood Chipping Machine +8613633838680US$ 2,000 - 5,000MOQ: 1 Set
Specifications
1.Model:PX-8002.Power:30KW
3.Capacity:5-6t/h
4.Blade diameter(mm):800
5.Main shaft speed:480
Application
1.It is one special equipment for making wood chips.
2.It is widely used in stock workshop section of industrial manufacture, for example,papermaking, the flakeboard,fibre board, building board, straw power plant.
3.Its raw materials are mainly logs, leaving thing of wood cutting(branchs ,wattle) and process leaving thing of the wood raw materials(board skin, board bar, log core,waste veneer) and so on.
4.It also can cut the non-wood materias, like sugar cane, bulrush,gross bamboo and so on.
5.The wood chipper has high quality, and the length can be adjusted according to need .
Features
1.Compact structure, reasonable design, easy operation and maintain;
2. Big capacity, wood chips length can be adjustable freely;
3.Optional converying system and feeding style
4.Wear-resisting materials for mat, high quality steels for dead knife and blades.
Products size
Length 20~50mm,thickness 2~5mm, and the width is less than 20mm.
Main data
Model |
Capacity(t/h) |
power(kw) |
Weight(kg) |
Main shaft rotate speed(r/m) |
Blade diameter(mm) |
PX420 |
1-2 |
7.5 |
120 |
600 |
420 |
PX600 |
2-3 |
15 |
380 |
650 |
600 |
PX700 |
3-5 |
22 |
480 |
600 |
700 |
PX800 |
5-6 |
30 |
550 |
480 |
800 |
PX950 |
6-8 |
37 |
800 |
550 |
950 |
PX1100 |
8-10 |
45 |
1650 |
600 |
1100 |
PX1210 |
10-12 |
55 |
2100 |
600 |
1210 |
PX1410 |
12-15 |
75 |
2800 |
600 |
1410 |

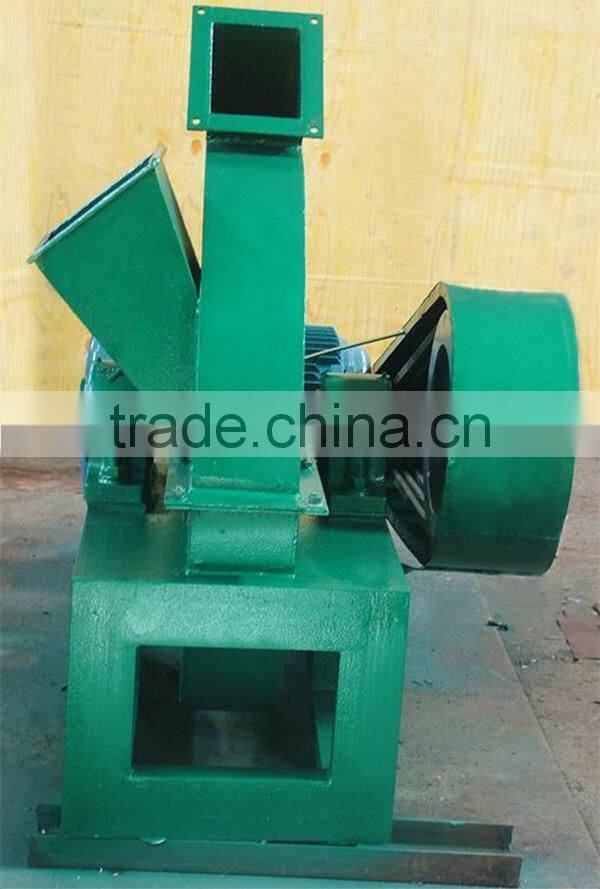

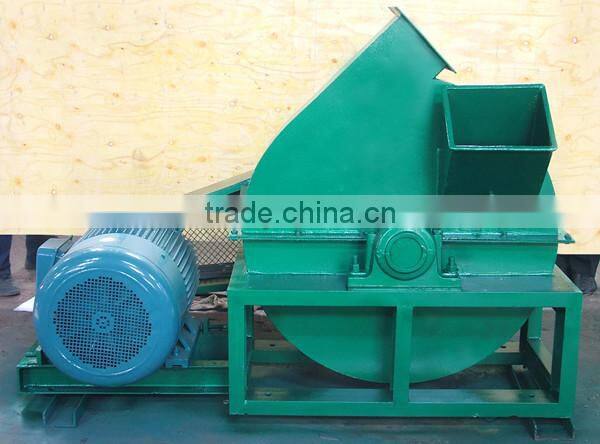

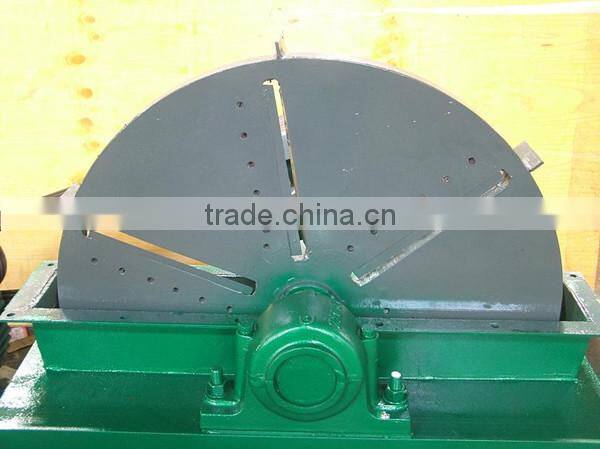

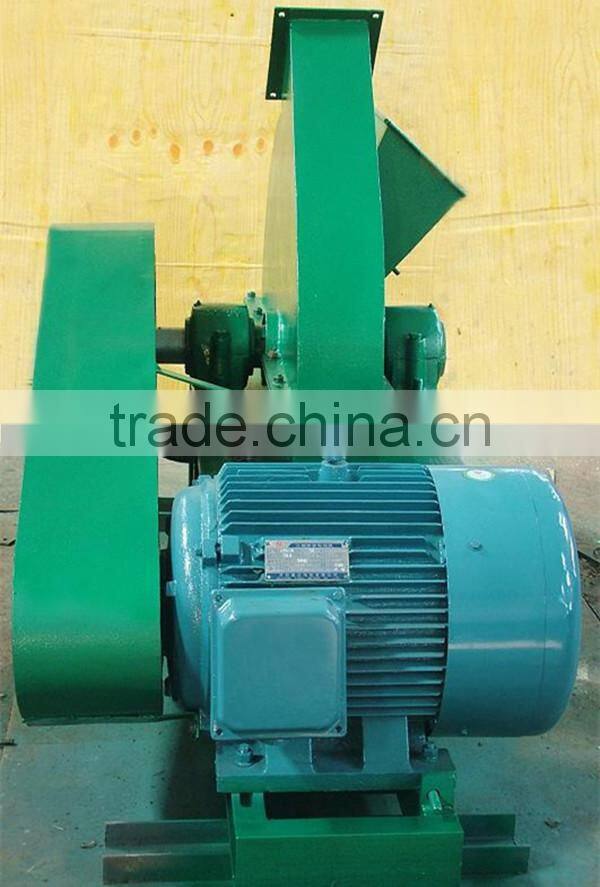

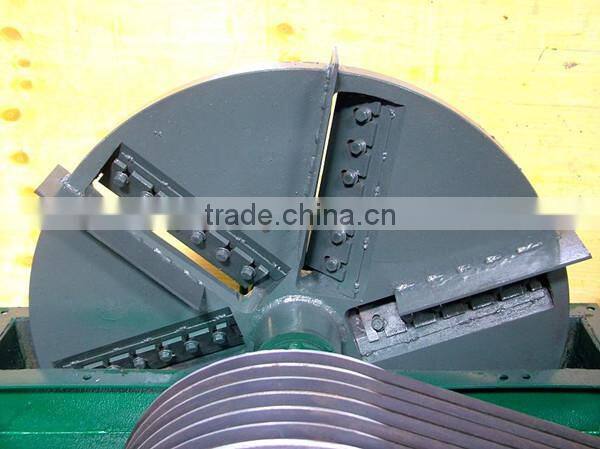

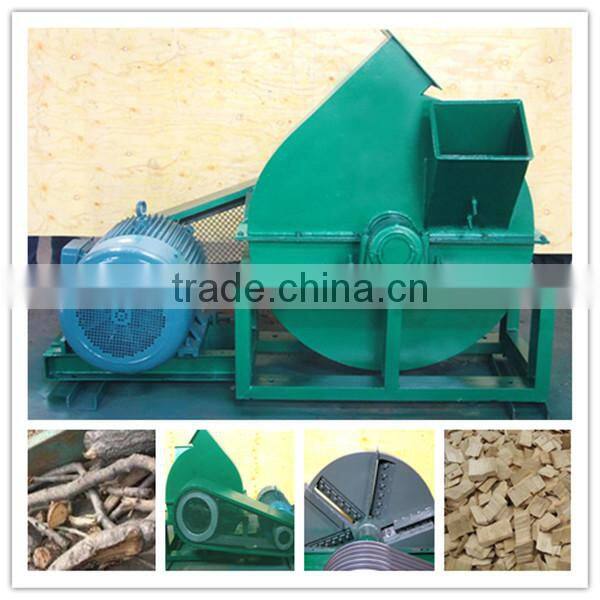

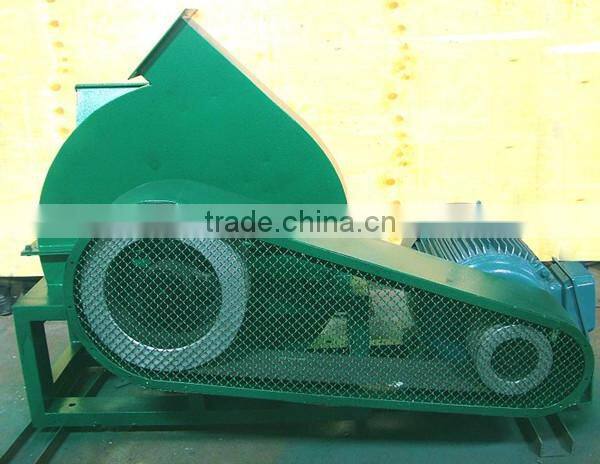

Machine details
Raw material

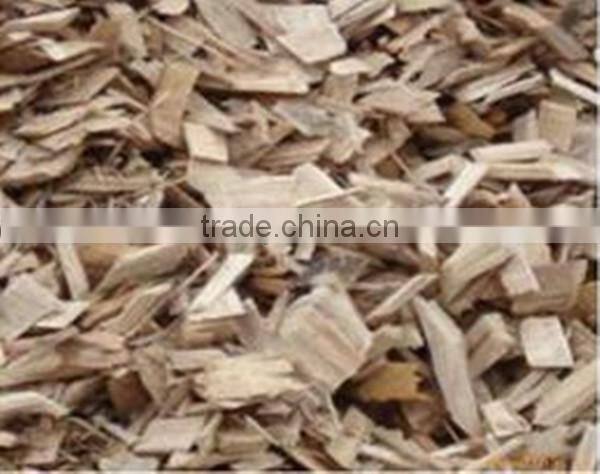

Wood sample
Packaging sample
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Shipping:
Machine usually transport by sea,we also can transport it by air and railway.
Delivery time: Within 15 workdays after receipt of the pre-payment.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
