Help CenterHot Sale 304 Stainless Steel Oil Filter Press FP-150
Related Products
-
6GT Seeds Roaster With High EffiencyUS$ 600 - 1,500MOQ: 1 Set -
Hot Sale Family Use Small Coffee RoasterUS$ 500 - 600MOQ: 1 Set
-
CE Approved Integrated Oil Press With Vacuum Filter 6YL-120AUS$ 2,000 - 3,000MOQ: 1 Set
-
Diesel Engine Palm Kernel Oil Pressing Machine Palm Oil Making MachineUS$ 1,000 - 2,000MOQ: 1 Set
-
New Type 6YL-165 Automatic Screw Oil Press With Top QualityUS$ 4200 - 4250MOQ: 1 Set
Product Description
Application and advantage:
1. This filter press can be widely used in the solid-liquid separation of different kinds of suspension; it can be applied in medicine, chemical, environment protection, water treatment etc.
2. Adopt flat screw thread mesh type with advanced structure, non-deforming and easy cleaning, can increase different filter membrane life effectively and reduce production cost.
3. All sealed parts installed (milky silicon rubber seal ring without poison and high temperature resistance) no leakage, which is on both face of the filter frame installed round seal ring.
4. Afferent canal part sealed strongly by double twist clasp, easy to discharge and clean.
5. This filter press can add or reduce filter materials according to different production capacity and different production technology ((first filter, semi-fine filter, fine filter)
6. When filtering, pressing strongly seal ring, and no consumption of liquid, the liquid cleanness is good.
7. Filtering media are: filter membrane, filter paper, filter cloth .
Main data:

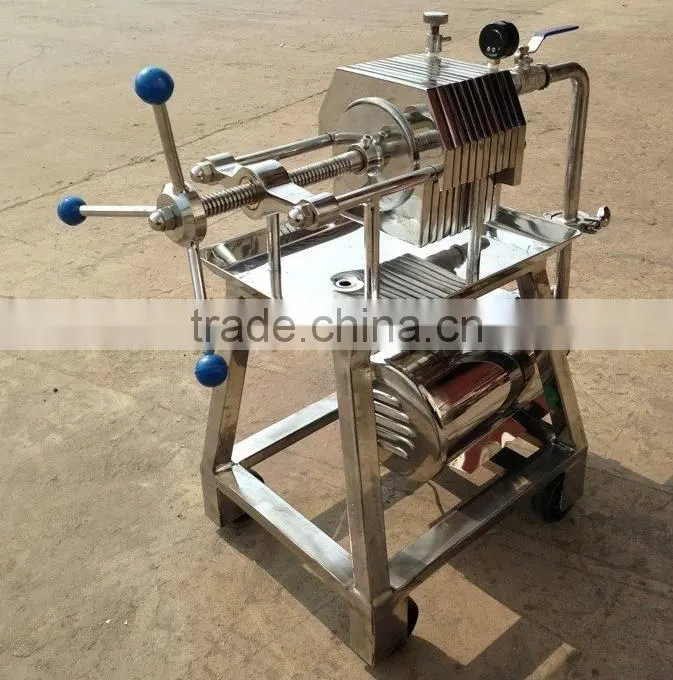

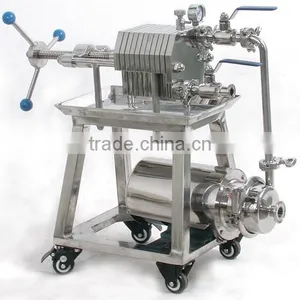

Model: FP-150 stainless filter press (304 stainless steel)
Layer: 10 pcs
Filtering area: 0.170m2
Filter plate size: 150mm
Filter membrane hole dia: 0.8um
Filter pressure: 0.15mpa
Water flow capacity: 1.5T/H
Power: 0.55kw
Size: 650x380x650mm

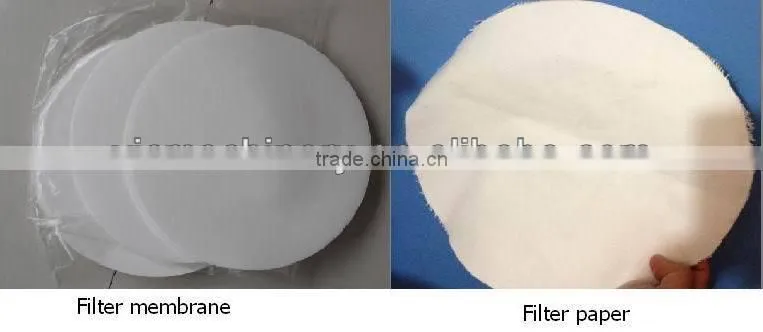

Filtering media:

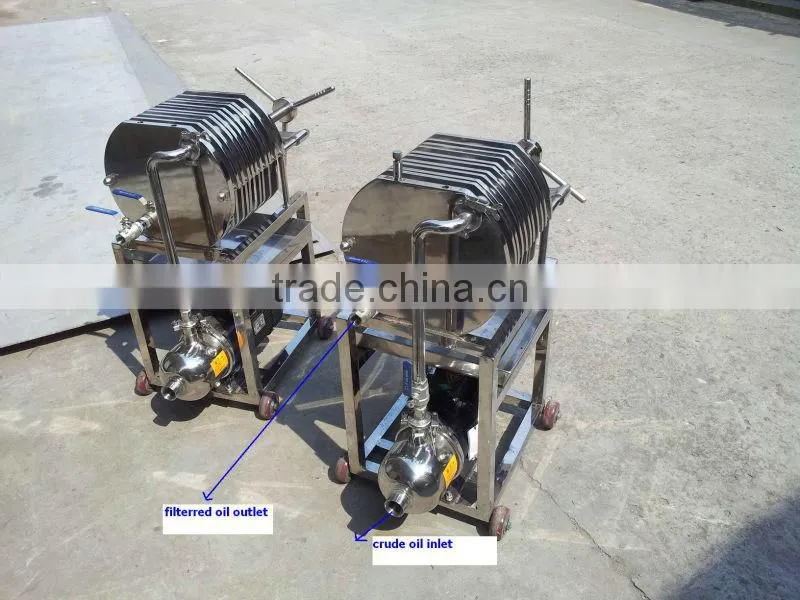

Filter plate:

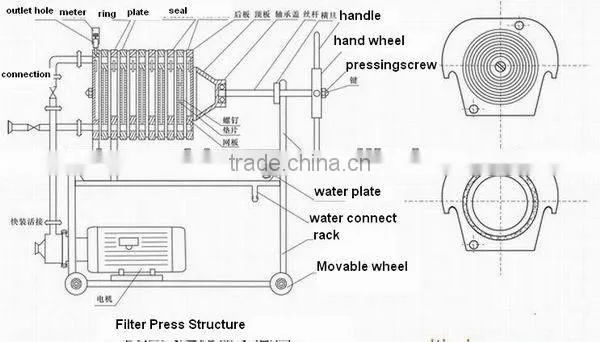

Main structure:
Different models FP system filter press
Model |
Layer |
Filter area(m2) |
Filter plate size |
Filter media(um) |
Water flow (T/H) |
Power (kw) |
Size (m) |
FP-100 |
10 |
0.078 |
100 |
0.8 |
0.8 |
0.55 |
0.6x0.3x0.6 |
FP-150 |
10 |
0.17 |
150 |
0.8 |
1.5 |
0.55 |
0.65x0.38x0.65 |
FP-200 |
10 |
0.34 |
200 |
0.8 |
2.0 |
0.55 |
0.65x0.5x0.8 |
FP-300 |
10 |
0.7 |
300 |
0.8 |
4 |
0.75 |
0.7x0.3x0.6 |
FP-400 |
10 |
1.25 |
400 |
0.8 |
6 |
0.75 |
0.6x0.3x0.6 |
FP-400 |
16 |
2.0 |
400 |
0.8 |
9 |
0.75 |
0.6x0.3x0.6 |

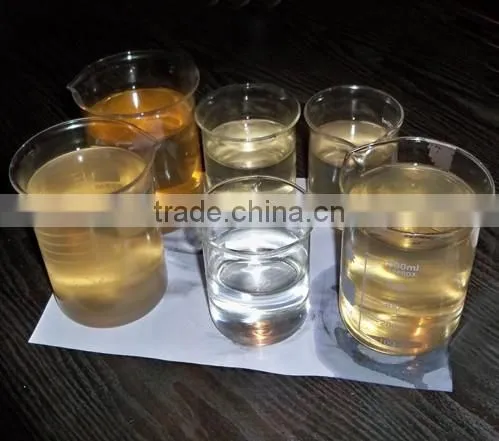

Final filtered oil quality:

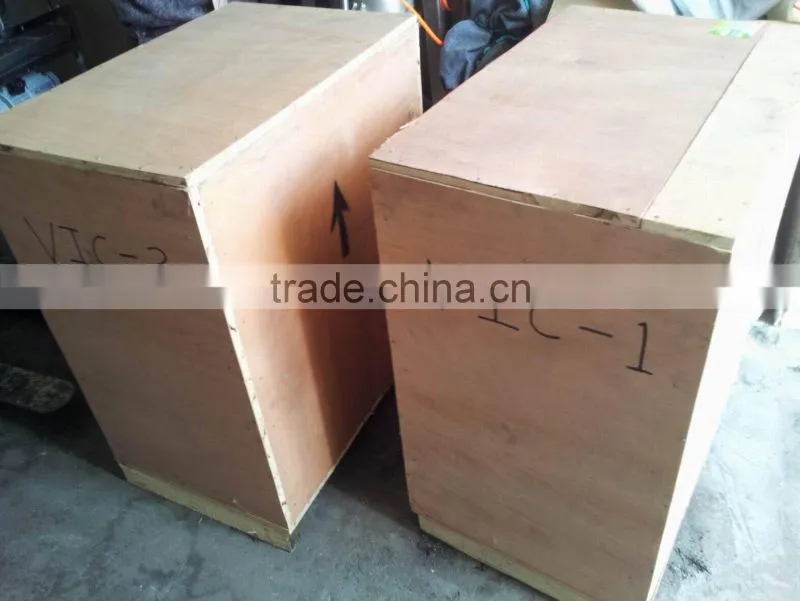

Packaging & Shipping

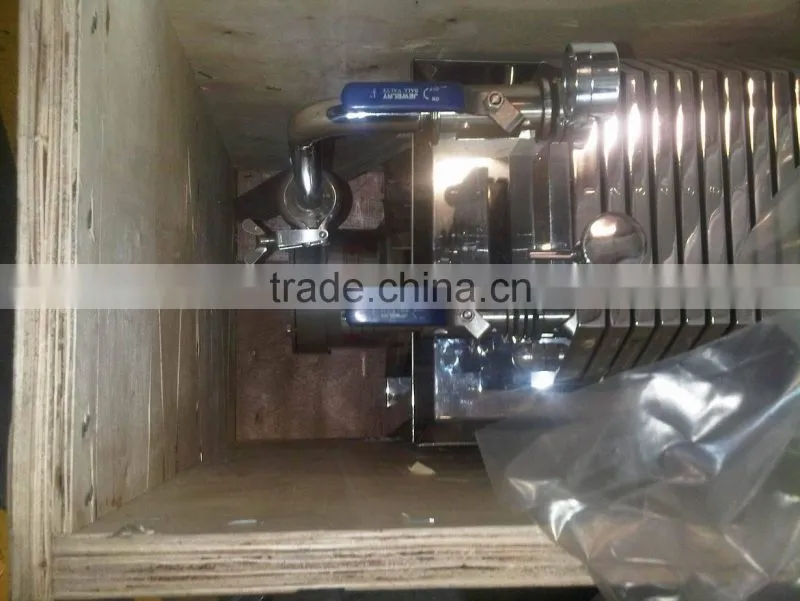

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Our Services
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.

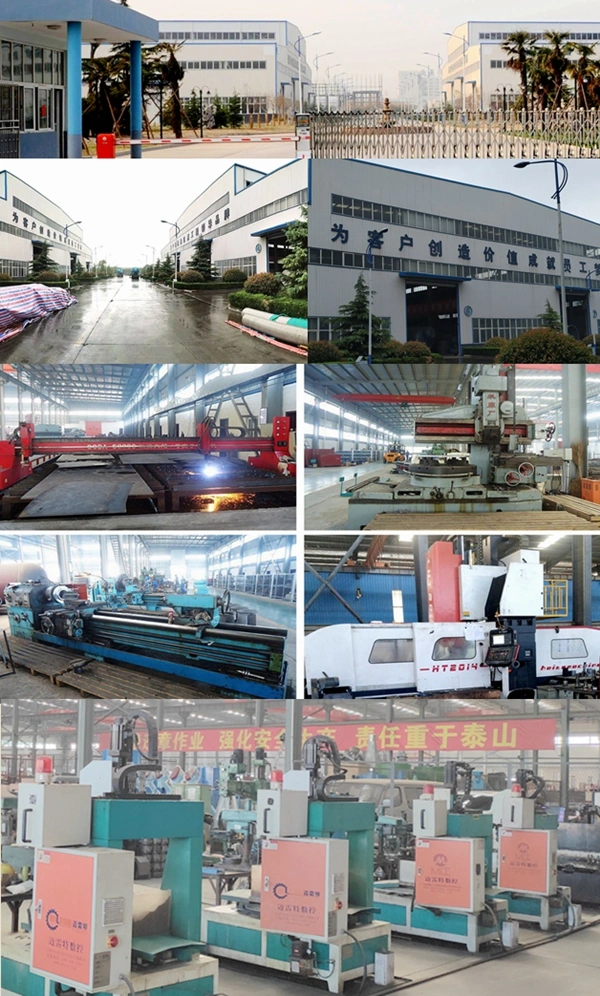

Company Information
