50L Essential Oil Distillation Equipment

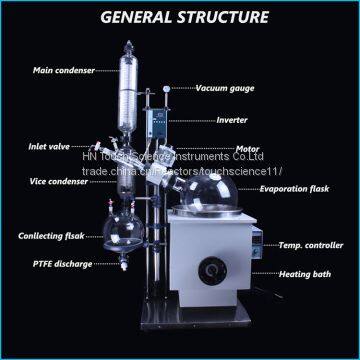

50L Essential Oil Distillation Equipment photo-1

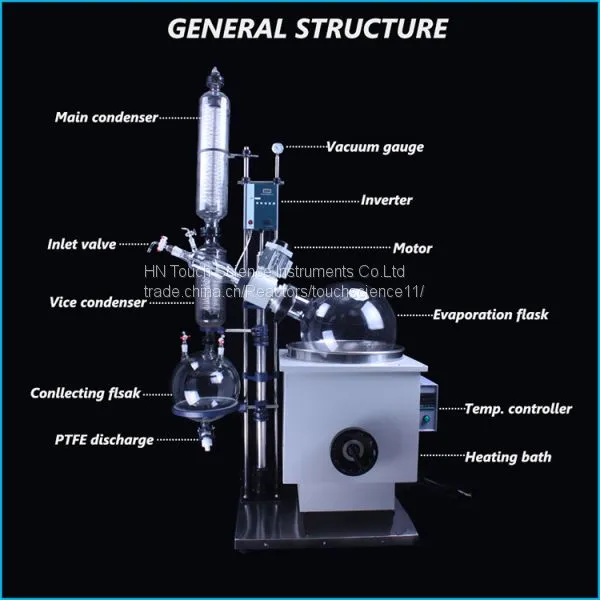

50L Essential Oil Distillation Equipment photo-2
US$ 1600 - 2600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Touch Science
Place of Origin:
China
Model Number:
RE-5002
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou,Beijing,Shanghai
Delivery Detail:
5 days
Brand Name Touch Science
Place of Origin China
Model Number RE-5002
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Weight 170Kg
Dimension(L*W*H) 1520*620*2470
Condition New
Voltage 220V/50Hz or 110V/60Hz
Application Distillation
Power(W) 180W
Power Source Electric
Process Vacuum Distillation
Introduction:

     50L Essential Oil Distillation Equipment is a specially designed instrument for the evaporation of solvent to form a thin film under vacuum condition. The evaporation rate is regulated by the heating bath temperature, the size of flask, the pressure of distillation and the speed of rotation. It is an important instrument for scientific research, pilot, production, biological pharmacy, chemical engineering and food industries etc.

 Features:

1. AC motor, stepless speed regulation, no brushes, no sparks, long life;
2. Easy and safe operation
3. High borosilicate glass, good physical and chemical properties;
4. Stepless speed control and digital speed display screen;
5. PTFE sealing parts, tight sealing, high vacuum degree, high evaporation rate and recovery rate;
6. Teflon heating bath, even temperature, fully enclosed design.

Parameters
Model
RE-1002
RE-2002
RE-5002
Evaporating Flask(L)
10
20
50
Receiving Flask(L)
5
10
20
Rotating Motor(W)
180
Rotating Speed(R/MIN)
0~120
0~120
0~90
Evaporation Rate(H2O)
>3L/h
>5L/h
>9L/h
Lifting Mode
Water(Oil) Bath Mannal Lifting
Lifing Height(mm)
0~220
Voltage
220V 50/60Hz
380V50Hz

Tips: All the rotary evaporator below can be make in 110~120 voltage.


Product Tags: Rotary Evaporator , Essential Oil , Essential Oil Distillation Equipment
