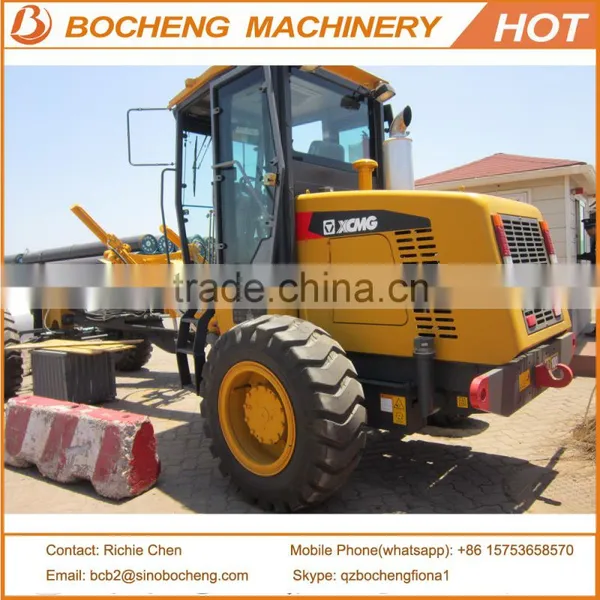

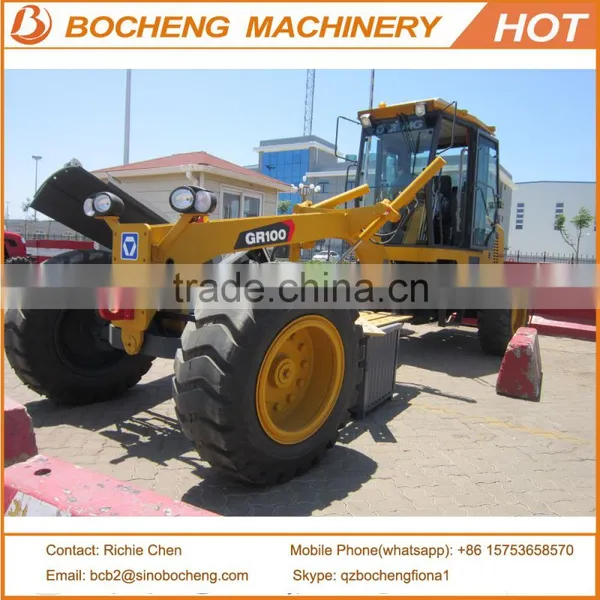

Mini Road Grader XCMG GR100 100HP Mini New Motor Grader
- 100 Set / Sets per Month
- Lianyungang Port Shanghai Port
- T/T Credit Card
You May Like
-
XCMG Machinery Mini Motor Grader GR100 For Sale
-
China Mini Motor Grader For Sale XCMG Brand with Lower Price
-
2016 XCMG China New GR100 Mini Motor Grader For Sale
-
China Famous Brand XCMG Mini Motor Grader GR100 with Good Quality
-
Chinese Motor Grader GR100 100HP XCMG Motor Grader
-
Chinese Small Motor Grader 100HP XCMG GR100 For Sale
Product Details
| Condition | New | Forward Speed(km/h) | 25 | |
| Reverse Speed(km/h) | 39 | Place of Origin | Jiangsu, China | |
| Brand Name | XCMG | Model Number | GR100 | |
| Weight | 7000kg | Dimension(L*W*H) | 6880*2375*3150mm | |
| Certification | ISO | After-sales Service Provided | Overseas service center available |
Product Description

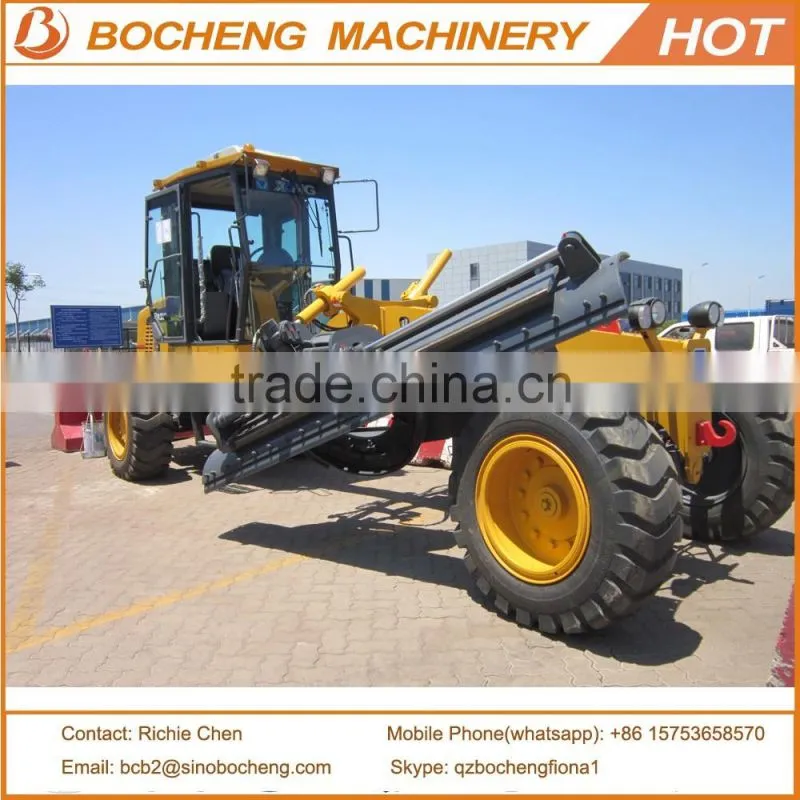

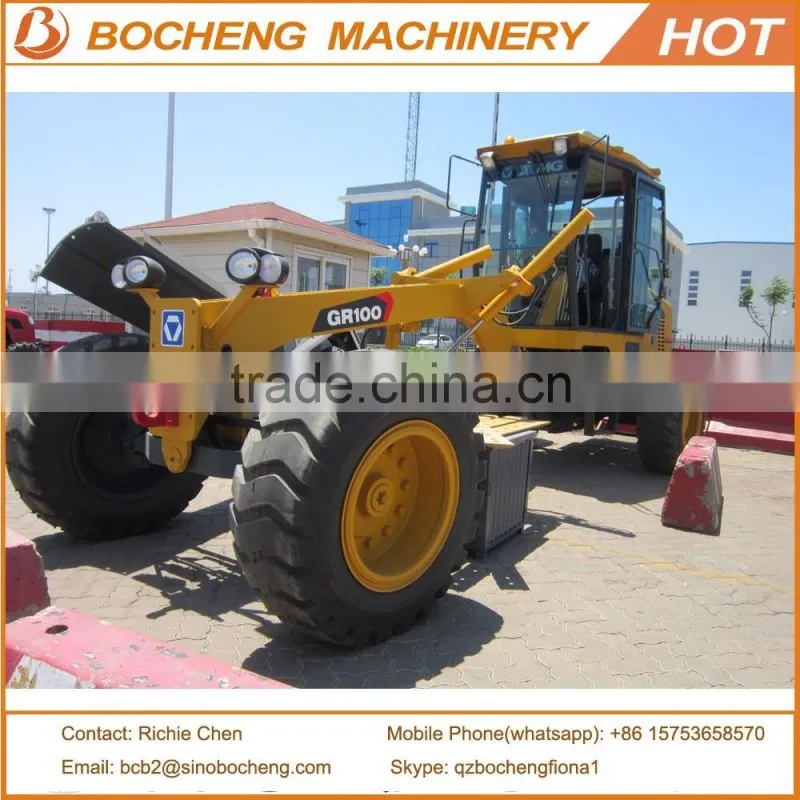

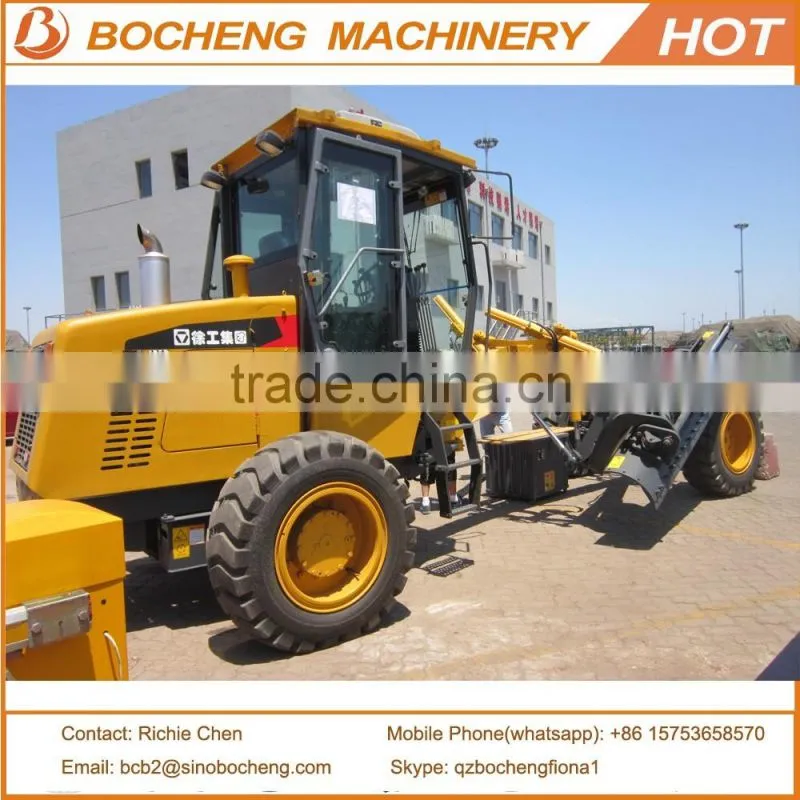

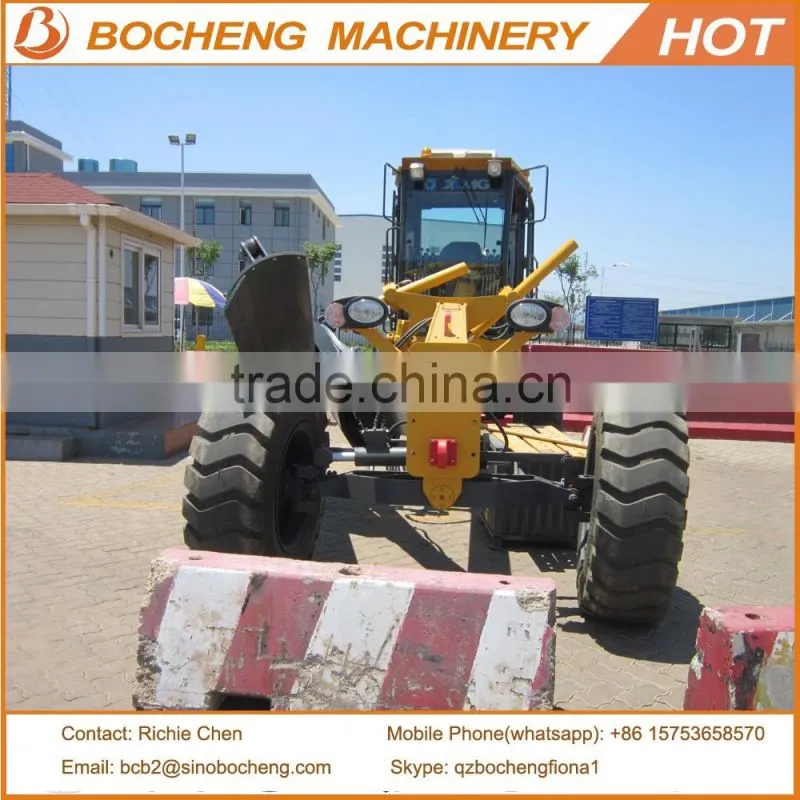

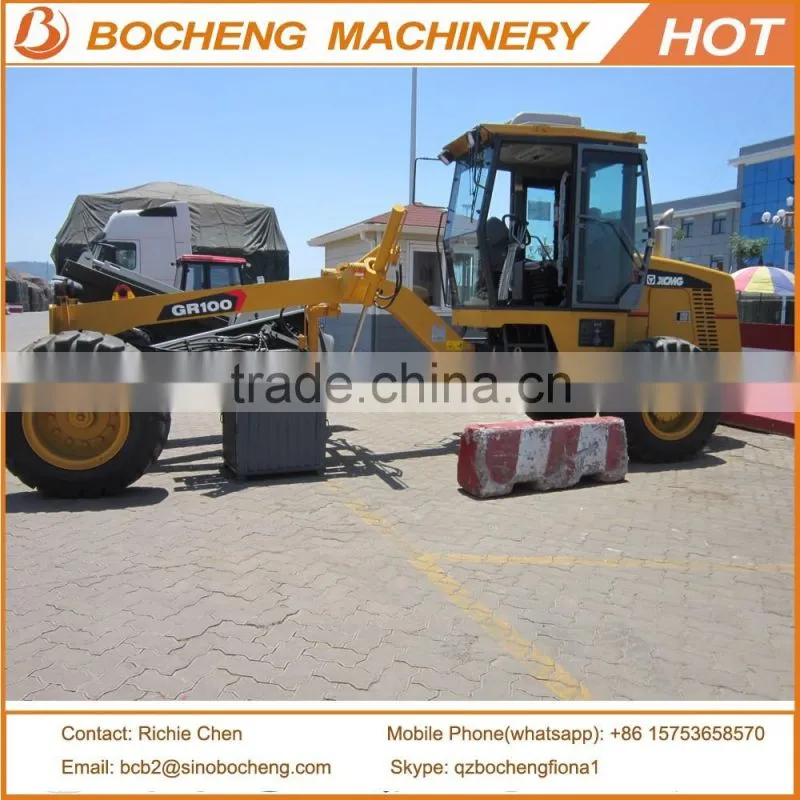

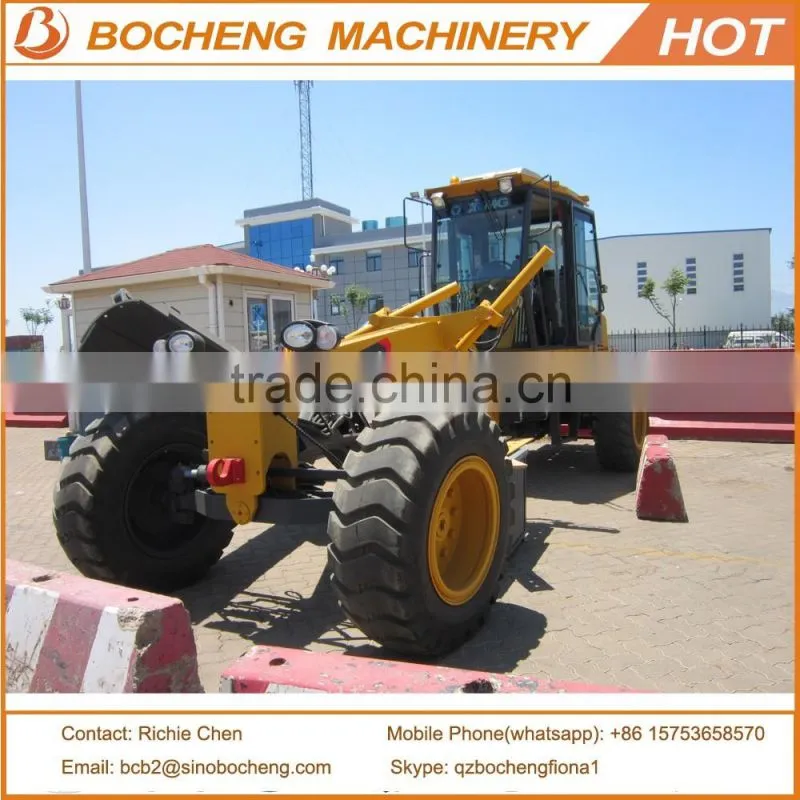

Mini Road Grader XCMG GR100 100HP Mini New Motor Grader
GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement
Parameter:
Basic specification | |
Engine model | 4BT3.9 |
Rated power/speed | 75/2400kw/rpm |
Dimension(LxWxH) | 6880×2375×3150mm |
Operating weight(Standard) | 7000kg |
Performance specification | |
Travelling speed ,forward | 5,10,20,39km/h |
Travelling speed ,reverse | 8,25km/h |
Tractive force(f=0.75) | 41.6KN |
Max. gradeability | 20% |
Tire inflation pressure | 350KPa |
Working hydraulic pressure | 16MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | 17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 5.9m |
Biade | |
Maximum lift above ground | 300mm |
Maximum depth of cutting | 350mm |
Maximum blade position angle | 45° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 120° |
Moldboard width X height | 3048×500mm |

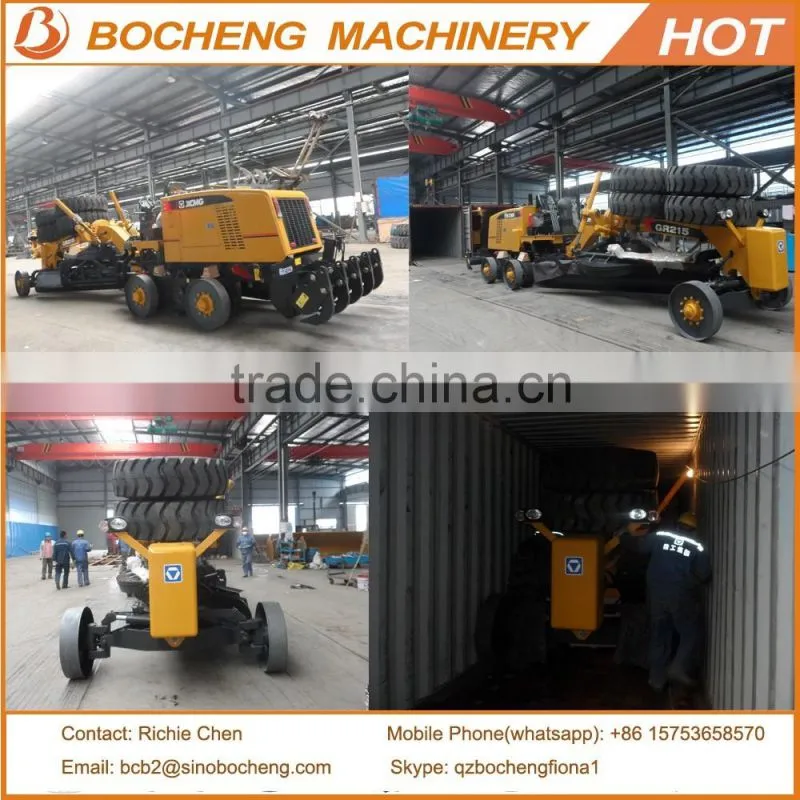

Nude package in 40HQ container, or by customer's request.
One year warranty, original xcmg spare parts, oversea service center, technical support.
Customer Visiting:
Foreign Fair:
As the honest supplier of XCMG Machines, we supply xcmg wheel loader, backhoe loader, motor grader, road roller, excavator, milling machines, truck crane,etc.
Our main market: Aisa, Africa, EU, America,etc.
Our Goal: Handler right machine to right customer, help them successful.
Welcome you contact and visiting.
