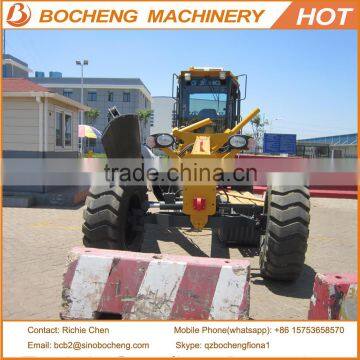

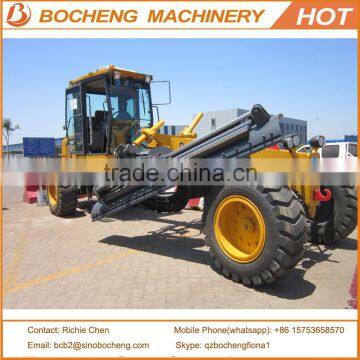

China Good Quality XCMG Small 100HP Motor Grader GR100
GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement
Parameter:
Basic specification | |
Engine model | 4BT3.9 |
Rated power/speed | 75/2400kw/rpm |
Dimension(LxWxH) | 6880×2375×3150mm |
Operating weight(Standard) | 7000kg |
Performance specification | |
Travelling speed ,forward | 5,10,20,39km/h |
Travelling speed ,reverse | 8,25km/h |
Tractive force(f=0.75) | 41.6KN |
Max. gradeability | 20% |
Tire inflation pressure | 350KPa |
Working hydraulic pressure | 16MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | 17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 5.9m |
Biade | |
Maximum lift above ground | 300mm |
Maximum depth of cutting | 350mm |
Maximum blade position angle | 45° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 120° |
Moldboard width X height | 3048×500mm |
Nude package in 40Hc container, or by Ro-Ro ship,
regards to customer's request.
One year warranty, original xcmg spare parts, oversea service center, technical support.
Customer Visiting:
Foreign Fair:
As professional supplier of XCMG Machines, over 10 years' experience,
we supply xcmg wheel loader, backhoe loader, motor grader, road roller, excavator, milling machines, truck crane,etc.
Our main market: Aisa, Africa, EU, America,etc.
Our Goal: Handler right machine to right customer, help them successful.
We will give what you want, if you trust us.
