XCMG Motor Grader
GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.

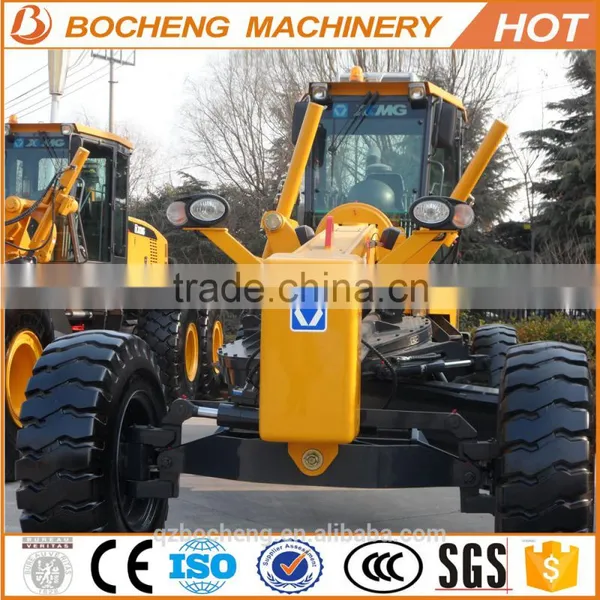

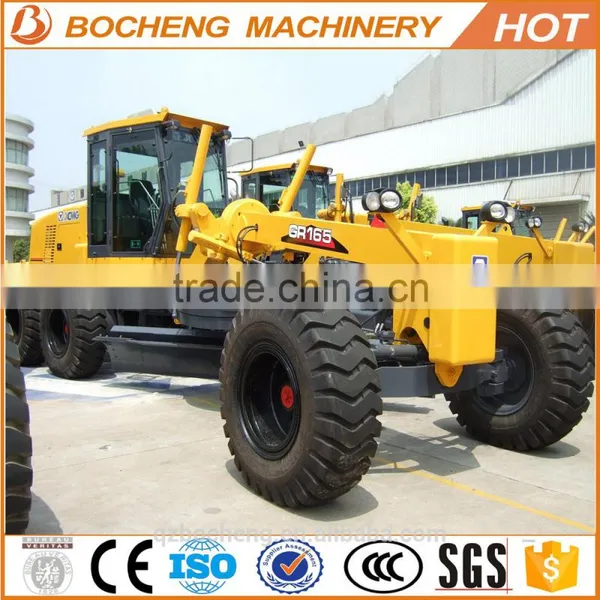

XCMG GR165
Motor Grader main technical parameters
Basic specification | |
|---|---|
| Engine model | D6114 |
| Rated power/speed | 125kW/2300rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15000kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 77KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |

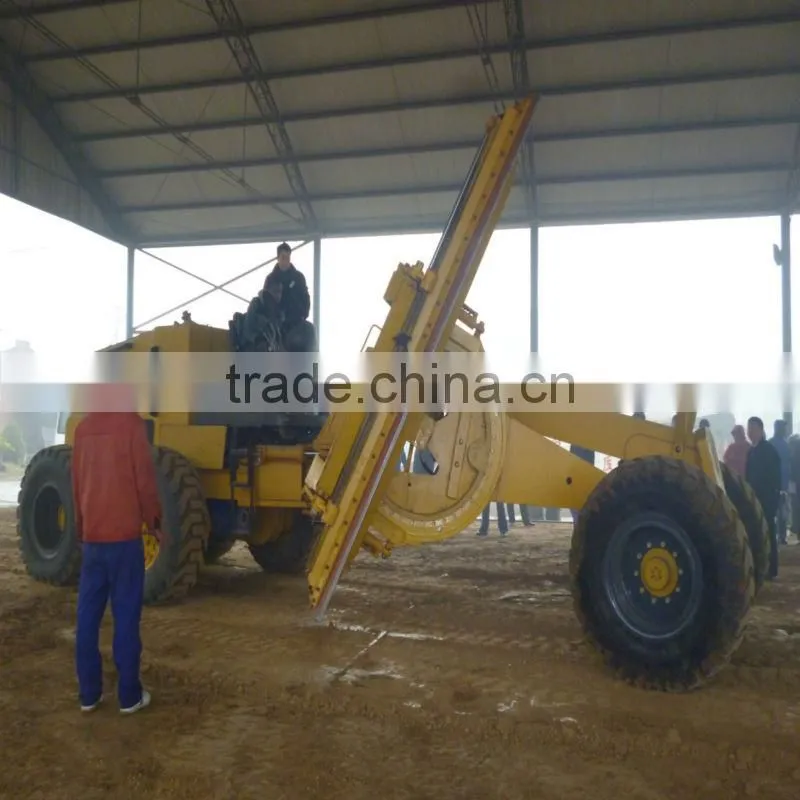

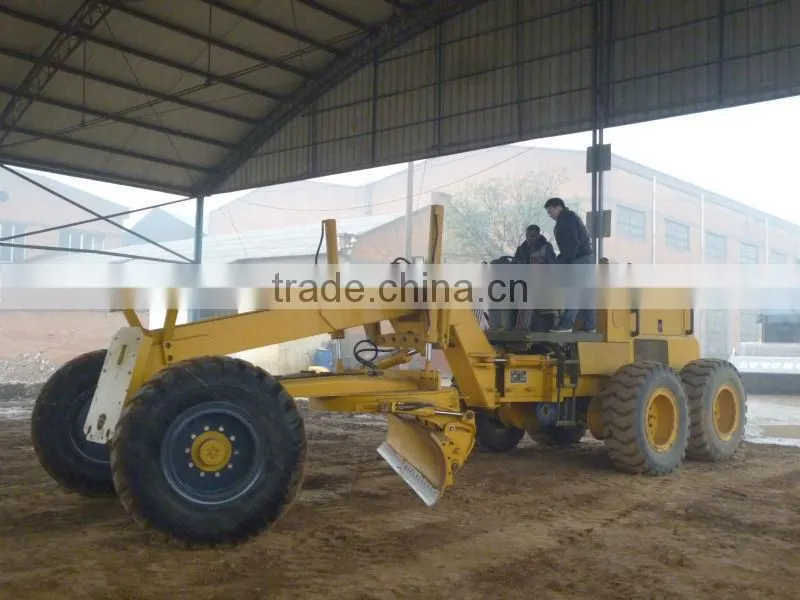

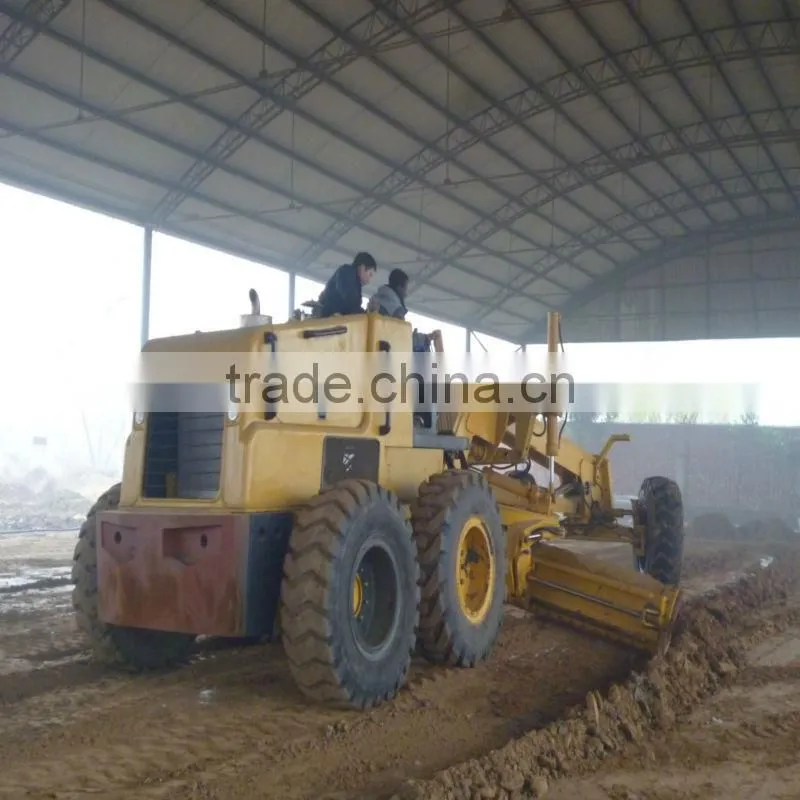

workshop performance testing

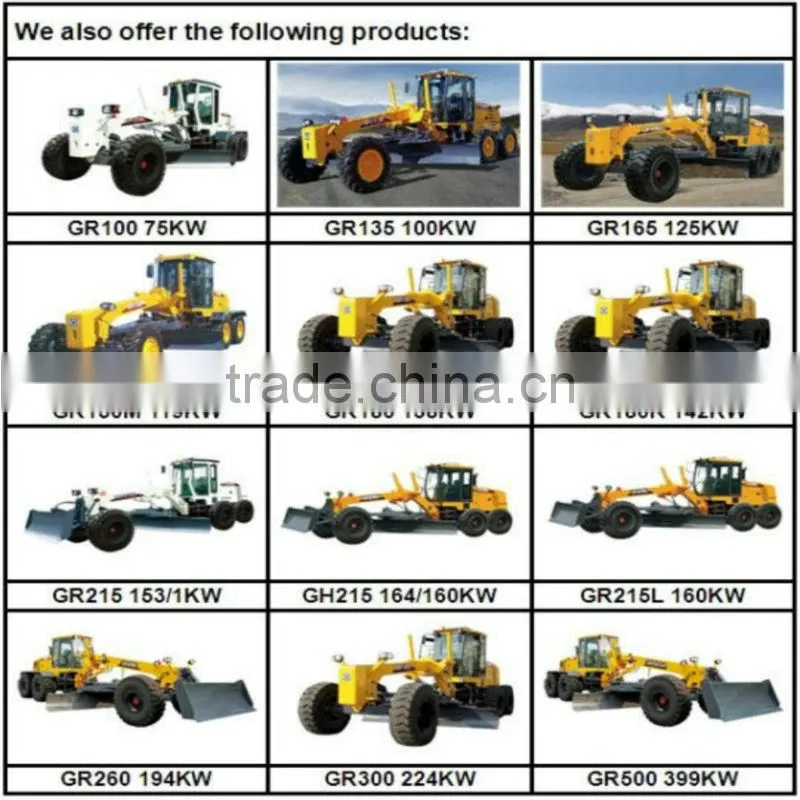

XCMG Series Motor Grader
Main Features
1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
2. Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
5. Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.
6. Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8. Dual diagonal appearance with whole metal hood 1m×1m distance.
9. Electro-hydraulically operated with entire instrumental monitoring system, Free
-maintenance OPTIMA Sweden batteries have.

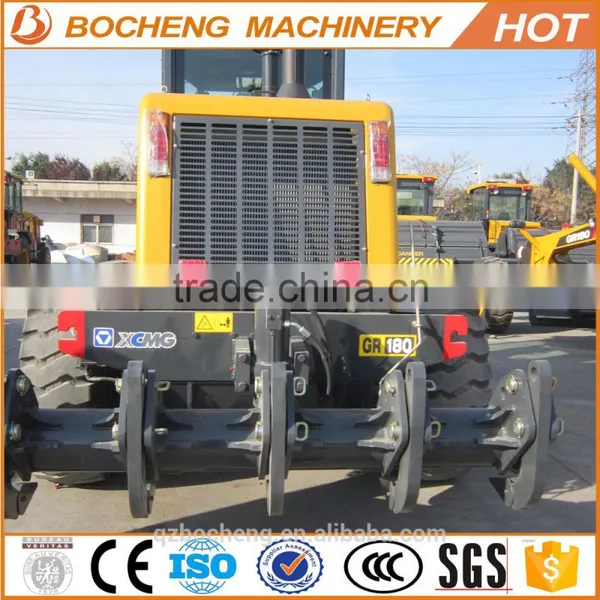

10. It is optional for front bulldozing plate and rear ripper
