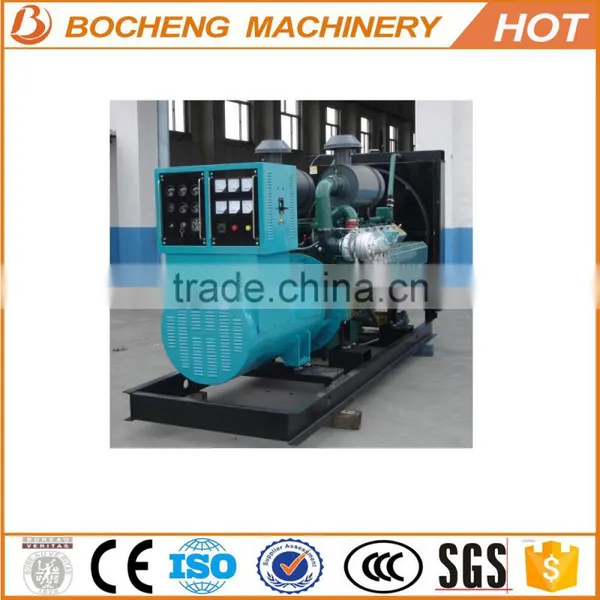

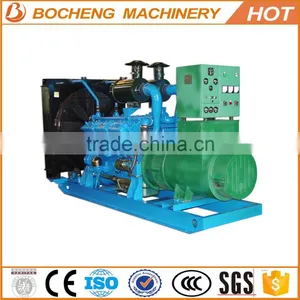

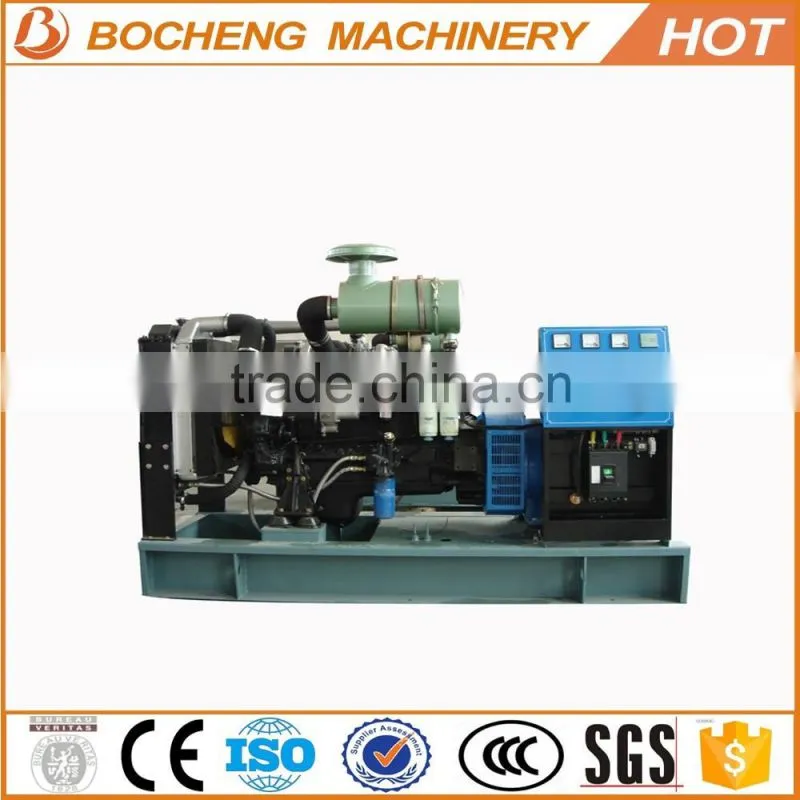

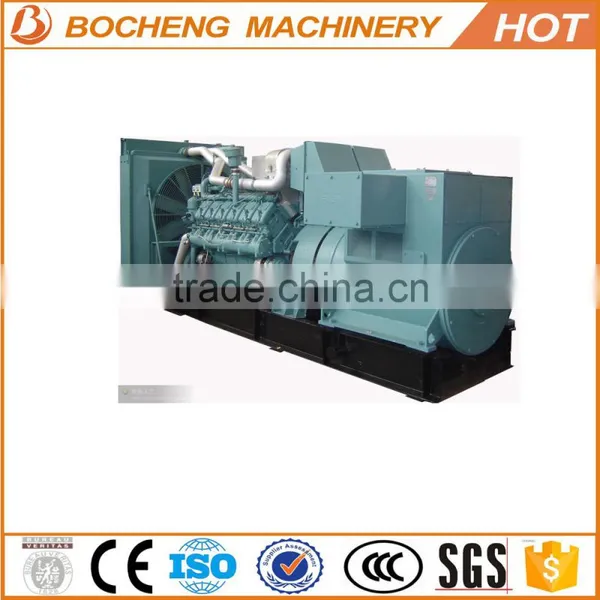

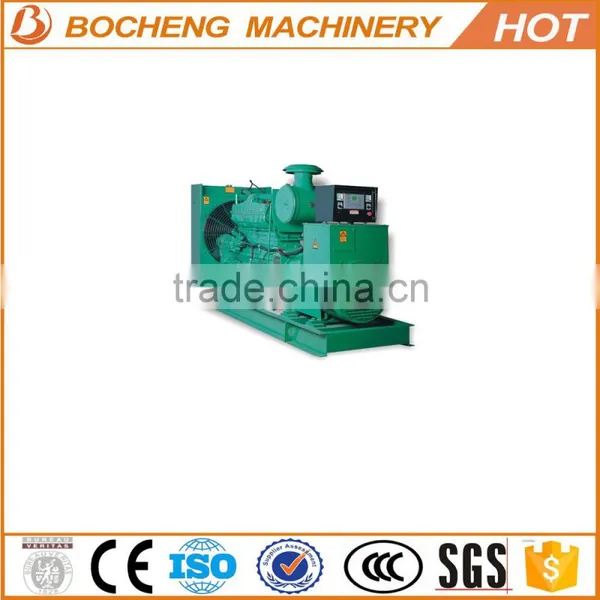

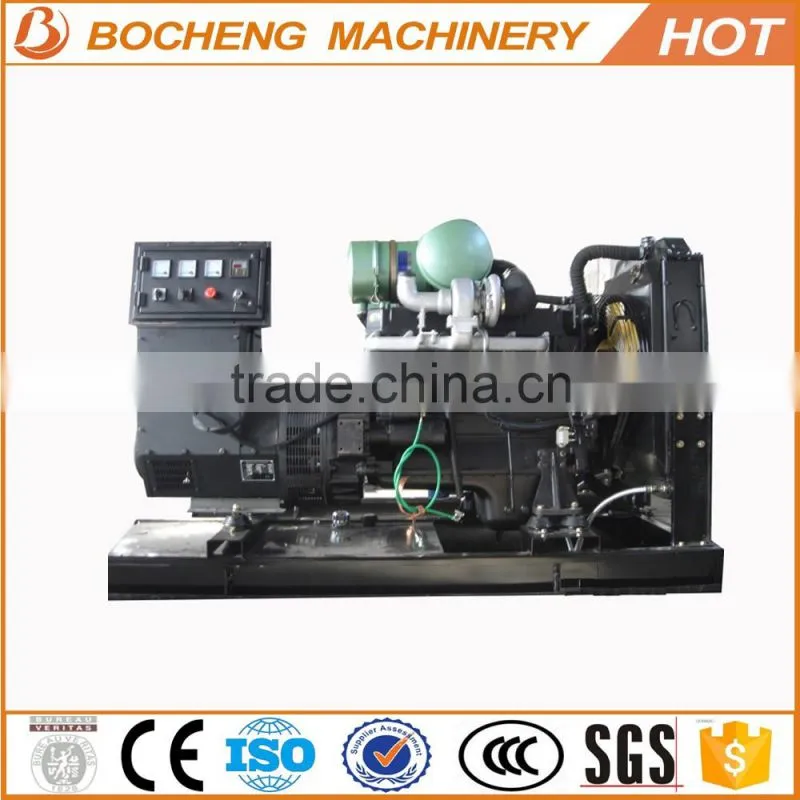

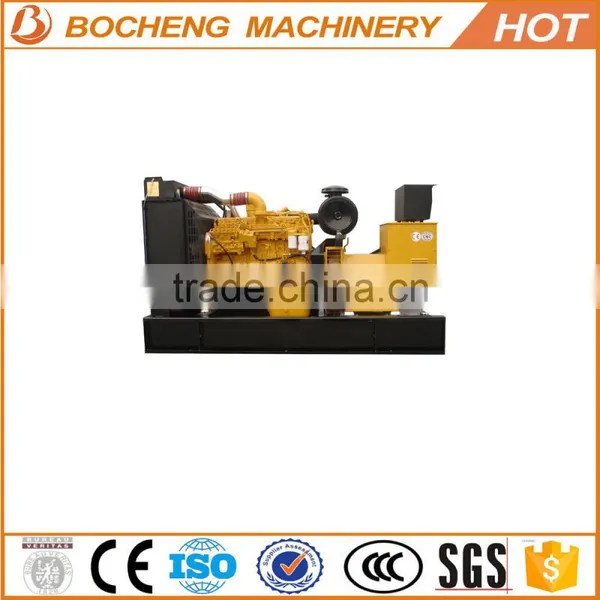

Shandong supplier weichai diesel generator sets
100kw Diesel Generator Set Main Technical Specifications:
| 100KW DIESEL GENERATOR SET | |||
| Model | 100GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 100/125 | Output Current(A) | 180 |
| Standby Power(KW/KVA) | 110/138 | Voltage(V) | 400/230 |
| Power Factor | 0.8 | Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 980 |
| Size(mm) | L | W | G |
| 2400 | 700 | 1490 | |
| Diesel Engine Data | |||
| Manufacturer | WEICHAI | Model | WP4D108E200 |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 110 |
| Cylinder No. | 4 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 105×120 | Displacement(L) | 6.75 |
| Intake Method | Turbocharged | Compression ratio | 15.5:01 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
| Oil Capacity(L) | 18 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 50℃,fans are driven by belt with safety guard. | ||
| Alternator Data | |||
| Manufacturer | China | Model | XN100 |
| Rated Power(KW/KVA) | 100/125 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP22 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
| Efficiency (%) | 94.8 | Voltage Control Method | AVR |
Nude Or Packaged By Container, according to customer's requirements.
One year warranty, orginal spare parts available, technical support,etc.
As the honest supplier of generator set, we supply diesel generator set(8kw~2000kw), gas generator (up to 1000kw). Generator types including open frame type, silent type, trailer type, canopy type,etc.
Diesel engine including all kinds of Chinese famous brand & Internation famous brands.
Also, our diesel generator set pass ISO, CE certificates.
Customer Visiting:
We take a series service & solution of the whole generator set.
Handle right machine to our custome, creat successful together.
Welcome your contact and visiting.
Looking forward our cooperation.
