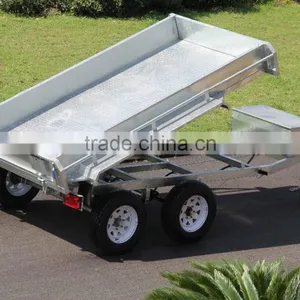

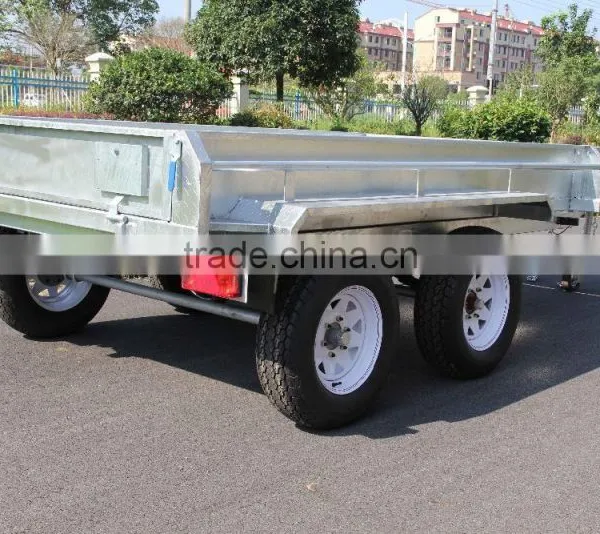

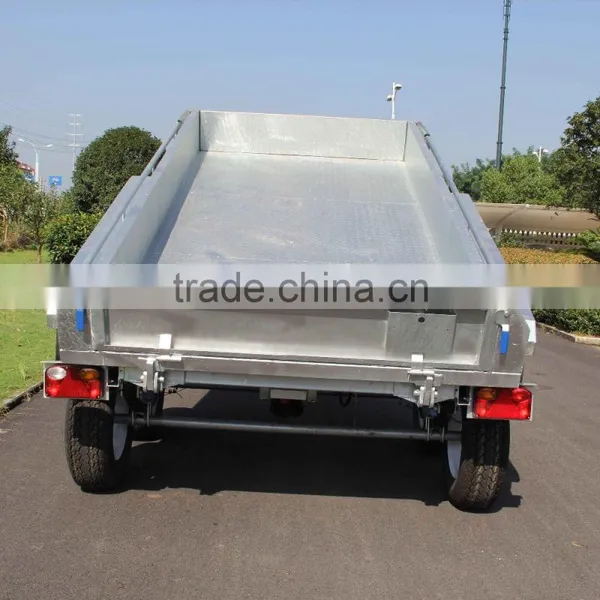

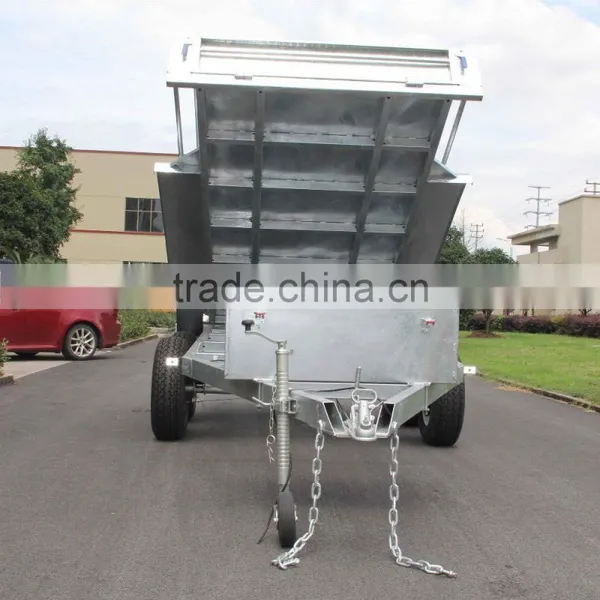

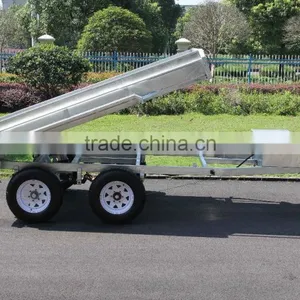

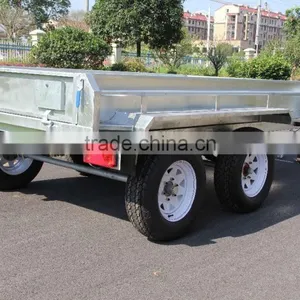

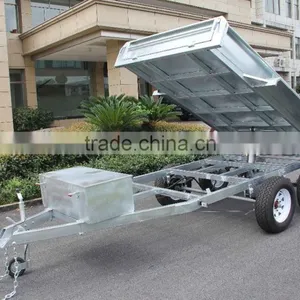

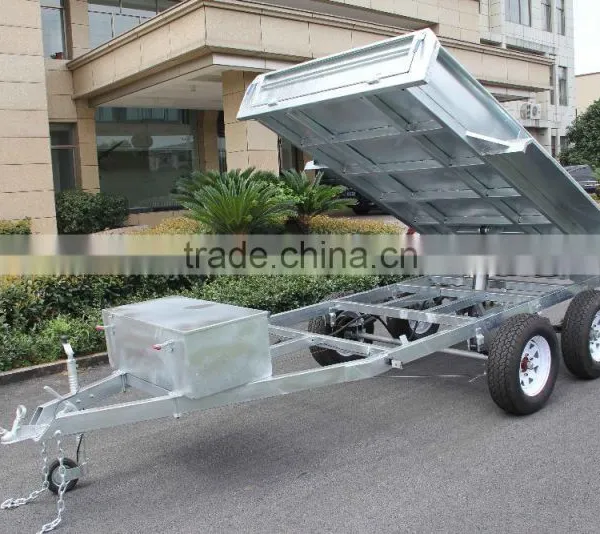

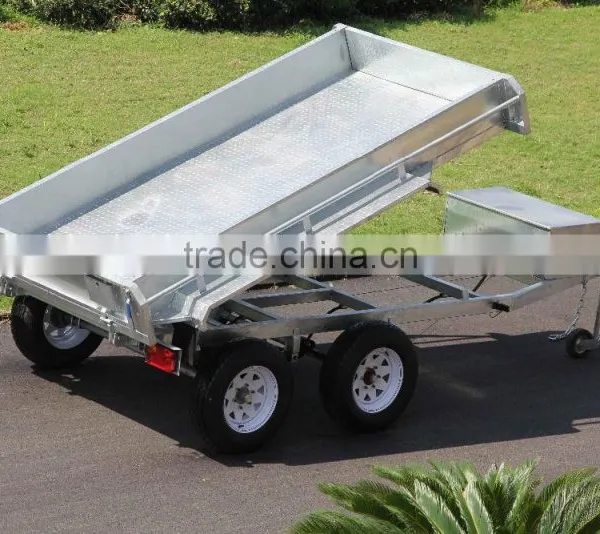

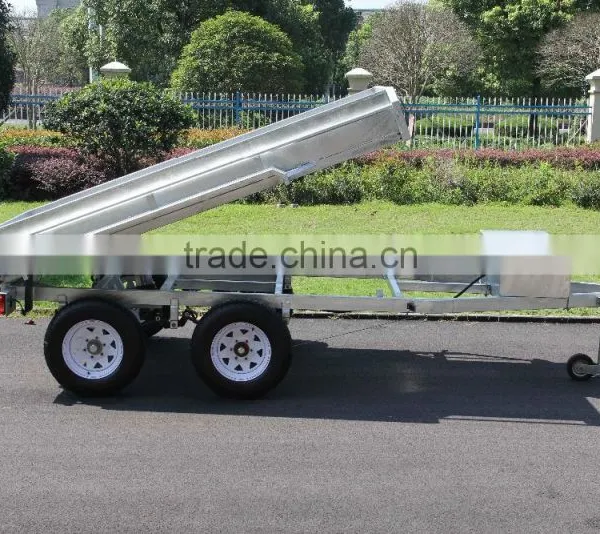

Heavy duty hydraulic tipping trailer (10x5)
- 3000 Piece / Pieces per Month
- ningbo
- T/T Credit Card
- inquiry for 3 Ton Flatbed Car Carrier,flatbed tow truck,China supplier with Cheap price
- Export semi-trailer European standard semi-trailer Price of 8-seater car
- Export container semi-trailer Skeleton semi-trailer 40 foot semi-trailer
- Aluminium coil and sheet for trailer body
- Export semi-trailer Trailer Exporting semi-trailers to Russia Car transport semi-trailer
- 40 foot container Container transport semi-trailer Export container semi-trailer
Product Details
OEM No.: | SZCT-2 | Max Payload: | 3000KG | Place of Origin: | Zhejiang, China |
Brand Name: | Yongqiang | Model Number: | YQ/T-AWA-105 TMD | Size: | 10x5x3.5 ft |
Product Description
Specifications
- Aggregate trailer mass (ATM): 3500kg
- Tare weight: 850kg
- Loading capacity (ATM less Tare): 2650kg
- Overall dimension: 5100 x 2100 x 1970mm
- Internal box dimension: 3000 x 1800 x 450mm
- Fully hot dipped galvanized
- 3-Stage Hydraulic Tipping Ram with 3000 KG Loading Capacity
- Solid Axles rated at 2000KG each
- 12” Dual Axle Electric Drum Brakes
- 100 x 50 x 3mm Box Section used on Drawbar and main Chassis
- Heavy Duty 2.5mm Checker Plate Floor and Guards all around
- 7 Leaf Heavy Duty Springs with Rocker Roller Suspension set-up
- 15 inch 6 stud brand new Sunraysia Light Truck Wheels (Land-cruiser⁄Patrol)
- 12V Automotive Battery come with the hydraulic system
- Come with Heavy Duty jockey wheel and manual parking brake
- Lockable tool box for hydraulic system
- Maintenance free LED indicators
- Opening front and rear tailgate
- Tie-down rails on both sides
1. OEM Manufacturing welcome:
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in Pallets.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of Bill of Lading.
Irrevocable L/C at sight.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
