China Color Sorter Machine /rice Color Sorter/ccd Color Sorter

China Color Sorter Machine /rice Color Sorter/ccd Color Sorter photo-1
China Color Sorter Machine /rice Color Sorter/ccd Color Sorter photo-2
China Color Sorter Machine /rice Color Sorter/ccd Color Sorter photo-3
China Color Sorter Machine /rice Color Sorter/ccd Color Sorter photo-4
China Color Sorter Machine /rice Color Sorter/ccd Color Sorter photo-5
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Dingxin
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hubei, China
Brand Name Dingxin
Model Number ZK4
Production Capacity 6-12 T/H
Voltage AC220V 50Hz
Power(W) 1.2-3.0 KW
Weight 750 KG
Dimension(L*W*H) 1808 x 1550 x1840 MM
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

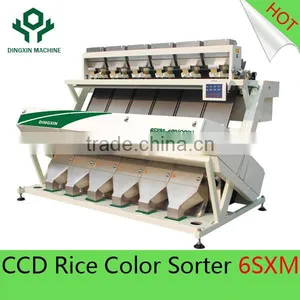

CCD Rice Color Sorter
1.High-accuracy sorting
2.High capacity
3.High-brightness LED lamp
4.Competitive price

2012 Top Rated CCD Rice Color Sorter ZK4

 china color sorter machine /rice color sorter/ccd color sorter

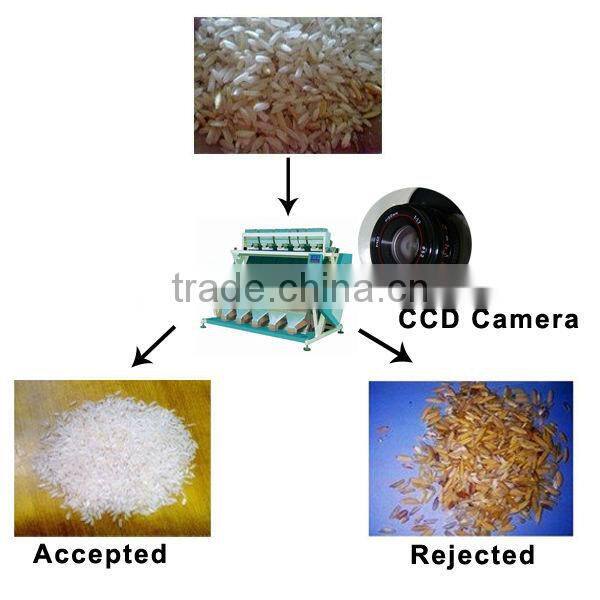

ZK series CCD rice color sorter has excellent color sorting performance. They are always used for sorting different grains like rice and millet according to color difference.

  • 2048 pixels CCD camera
  • 128/192/256/320 channels
  • High-brightness stable LED light source
  • Advanced optical sorting chamber
  • High-speed durable ejector
  • High-speed video identification control algorithm

Application

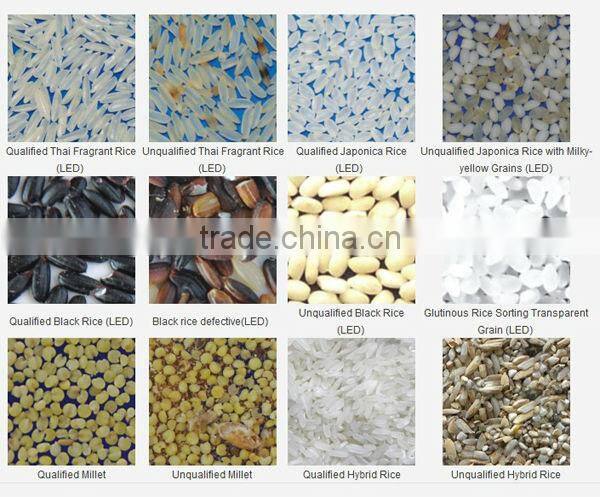

White rice (various type), millet, glutinous rice, black rice, wheat and other grains color sorting.

china color sorter machine /rice color sorter/ccd color sorter



Features



1. Adopting 2048 pixels high-accuracy linear CCD camera, professional images acquisition and processing system can process images' parameters at high speed.


2. Bus structure ensures high consistency of signal, strong anti-interference capability, better stability and more simplified structure.


3. Minimum discolor area of 0.08 mmcan be accurately identified,  and the checking area is adjustable according to sorting requirement.

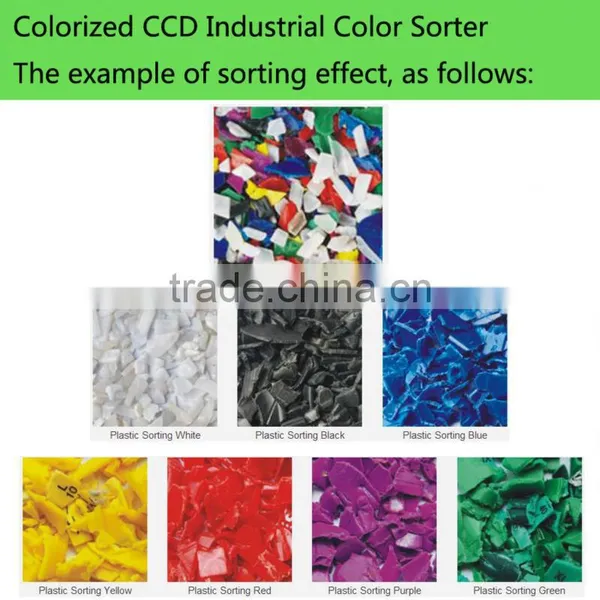

4. Both flat type and channels type U-shaped chutes are available, hence the color sorter can sort many other grains and granules.



5. Embeded operation system, user-friendly interface, convenient operation.



Parameters



Model

ZK2

ZK3

ZK4

ZK5

Channel No.

128

192

256

320

Primary Channel : Secondary Channel

64:64

128:64

192:64

256:64

Capacity (T/H)

3-6

4-8

6-12

7.5-15

Sorting Accuracy

>99.99%

Carryover (Bad:Good)

≥8:1

Voltage

220V±10% 50 Hz

Power (KW)

0.6-1.8

1.0-2.7

1.2-3.0

1.5-3.5

Air Pressure (MPa)

≥0.6

Air consumption (L/MIN)

600-1200

1000-1800

1200-2500

1500-3000

Carryover (Bad:Good)

≥8:1

Net Weight (KG)

600

635

750

950

Dimensions (MM)

1204×1550×1840

1506×1550×1840

1808×1550×1840

2110×1550×1840

Notes:
The parameters listed above are based on standard polished round-shaped rice (impurities contained 2%), and specific data will vary with material type and impurities content.
