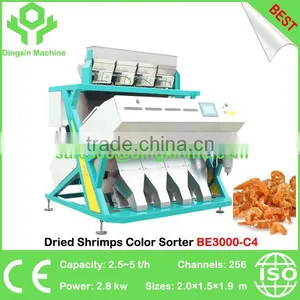

Help CenterCCD Dried Shrimps Color Sorter/Color Sorting Machine/Color Selector/Color Grader
Related Products
-
CCD Chinese Wolfberry Color Sorter/Color Sorting Machine/Color Selector/Color GraderUS$ 23,000 - 35,500MOQ: 1 Set -
CCD Cashew Color Sorter/Color Sorting Machine/Color Selector/Color GraderUS$ 23,800 - 35,500MOQ: 1 Set
-
CCD Almond Color Sorter/Color Sorting Machine/Color Selector/Color GraderUS$ 23,700 - 35,500MOQ: 1 Set
-
CCD Watermelon Seed Color Sorter/Color Sorting Machine/Color Selector/Color GraderUS$ 23,600 - 35,500MOQ: 1 Set
-
CCD Shelled Pine Nut Color Sorter/Color Sorting Machine/Color Selector/Color GraderUS$ 23,400 - 35,500MOQ: 1 Set
BE Series CCD Color Sorter Color Selector
Sortable grains:
Sesame seeds, sunflower seeds, soybeans, corn, peaunts, wheat, broad bean, mung beans, raisin, barley, oats, buckwheat, millet, red beans, black beans, kidney beans etc.
Features:
1. The color sorter uses 2048 high performances CCD sensors with resolution up to 0.02mm².
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of rice.
3. The high speed DSP technology provides the sorter with fast detection and high identification rate.The special coarse cereal detection algorithm is designed.
4. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
5. Overall unit adopts intelligent closed-loop control.
6. The operation interface adopts industrial grade 7-inch TFT contact screen and features simple parameters setting and easy operation.
7. High speed air valve is used to ensure quick response, low power consumption and long service life.
8. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair.
Technical data:
| Model | BE3000-C1 | BE3000-C2 | BE3000-C3 | BE3000-C4 | BE3000-C5 | BE3000-C6 |
| Output(t/h) | 0.5~1.5 | 1.5~3.0 | 2.0~4.5 | 3.5~7 | 4.5~8 | 5~10 |
| Power(kw) | 1.5 | 2.0 | 2.5 | 2.5 | 2.8 | 3.1 |
| Voltage | 220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ | 220V 50HZ | 220V 50HZ |
| Air Pressure(Mpa) | ≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 | ≥0.6 | ≥0.6 |
| Air Consumption(L/min) | 500~1200 | 800~1800 | 1000~2500 | 1200~3000 | 1600~3500 | 1800~3800 |
| Sorting Accuracy | >99.98% |
>99.98% |
>99.98% |
>99.98% | >99.98% | >99.98% |
| Net Weight(kg) | 500 | 700 | 800 | 1000 | 1200 | 1400 |
| Dimensions(mm) | 825×1590×1840 | 1125×1590×1840 | 1425×1590×1840 | 1700×1600×1800 | 2000×1600×1800 | 2300×1600×1800 |
Welcome to contact with me anytime, my friend!
