Automatic drip Irrigation System, farm spray machine

Specifications

Reel irrigation system
1.galvanized steel frame
2.flexible to move and storage
3.0.5-0.8Mpa pressure
4.turbine recover

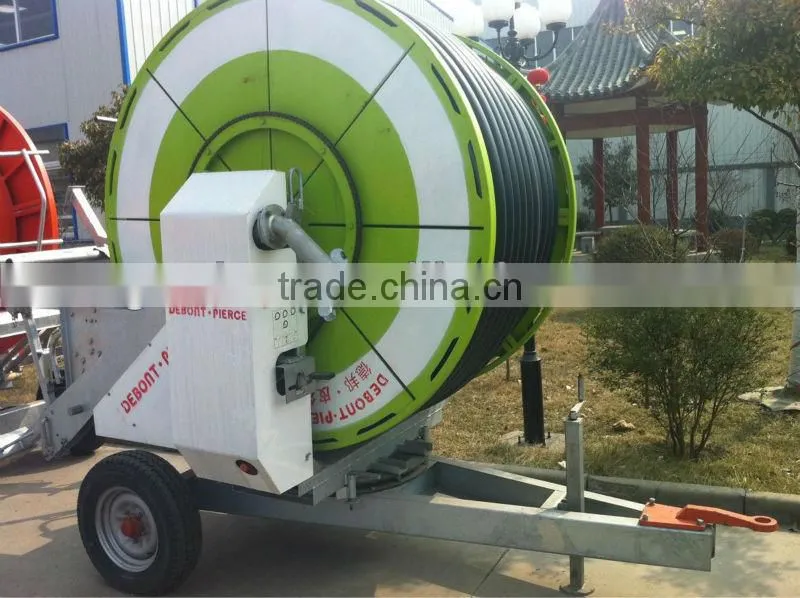

Hose reel irrigation system for watering farm land





Description



Hose reel irrigationsystem is mainly make up of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation

device and water composition.



The key components of water turbines, gearboxes, PE pipe and structural piece are in good or bad quality of the processing technology directly affects the effectiveness and use of the whole operational life.





Features



1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.



2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.



3.High Efficiency and Large Irrigation Area. The Sprinkler  can spray water in all directions.



4.Good irrigation quality and uniformity can be up to 85% above.



5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.

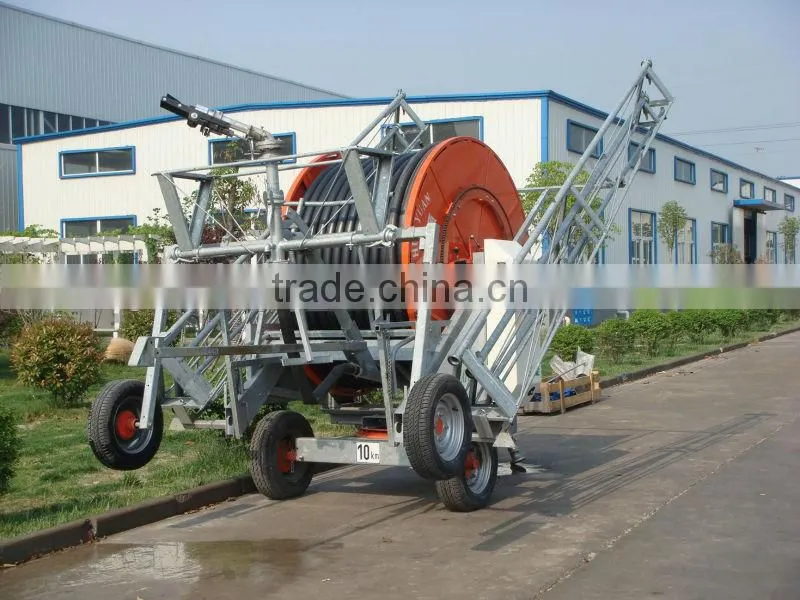

Hose Reel Irrigation System with Boom Technical Parameter:

Basic Unit	Model	PE-Pipe dia. mm	PE-pipeLength m	Max. strip width	Water flow m3/h	Connection pressure bar	Nozzle No. *Dia. mm
65TX	JP65-220	65	220	36	11.41-38.3	3.0-7.0	13*4.4-7.5
	JP65-250	65	250	36	11.41-38.3	3.0-7.0
75TX	65-340TX	65	340	36	11.41-38.3	3.0-7.0
	75-300TX	75	300	36	11.41-38.3	3.0-7.0
85TX	75-350TX	75	350	36	11.41-38.3	3.0-7.0
	75-400TX	75	400	36	11.41-38.3	3.0-8.0
	90-250TX	90	250	36	11.41-38.3	3.0-8.0
	90-300TX	90	300	36	11.41-38.3	3.0-8.0









































 Boom Parameters:

Boom length	26m
Covering width	36m
Water flow	13-60m3/h
Pressure	0.3-1.00Mpa
Nozzle dia.	4.4-7.5mm
Working pressure	0.10-0.20Mpa
Sprinkling range	1.0-5.5m
Rainfall	8-50mm





















The boom adopts stainless steel pipe, length is 26m.
Can use the AS26m boom cantilever type if the plant request small rainfall.

With the advantage of lower pressure, smaller water-drop, higher water distribution uniformity, small influence for wind.

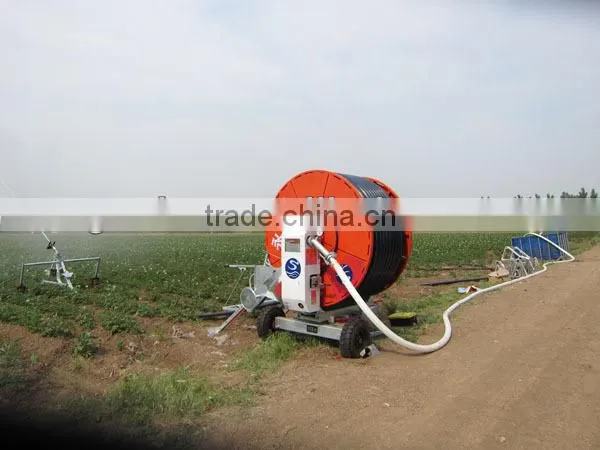

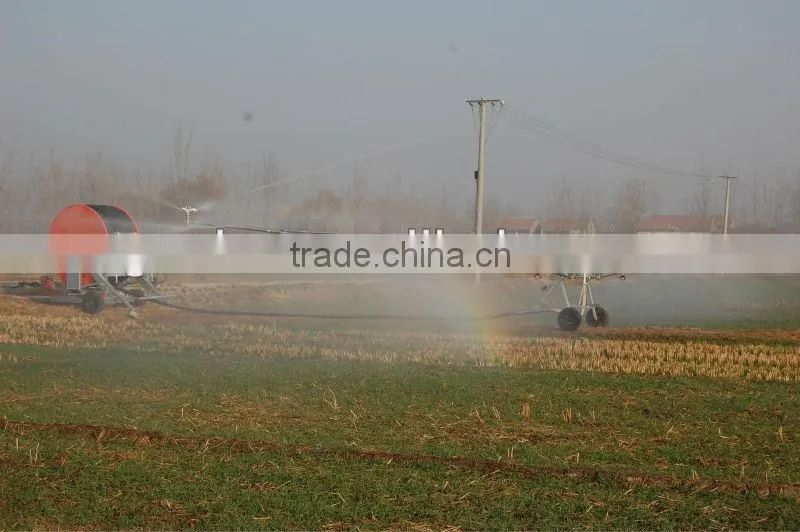

Working photos:

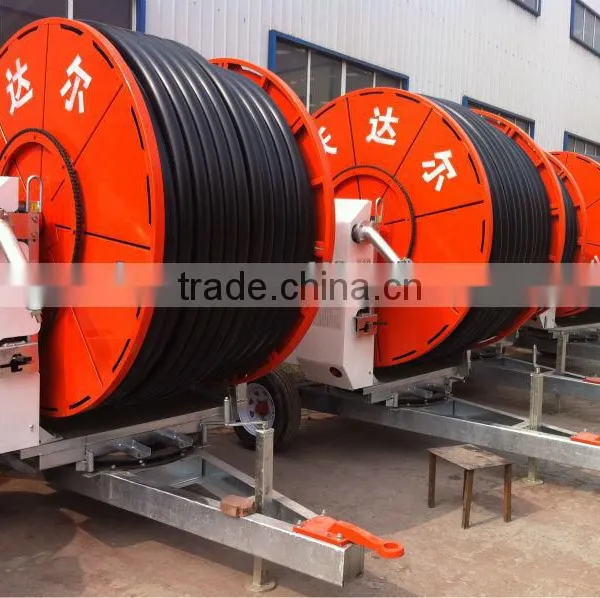

Production photo:



 JP50-150, JP65-200, JP65-300, JP75-300m, 75-400m, 90-300m are hot-selling now!

Welcome to visit our factory!

Contact us immediately for working video and quotation!
