Hose Reel Irrigation System
Hose reel irrigation system is turbine-driven machines designed for fully mechanized and labor-saving irrigation system.
Frame and water spray car all use galvanized steel parts, provides best anticorrosion protection for metal parts with long service life.
Working principle
Water comes into water turbine from water source by pressure, which produced when going through pump.
Pull PE pipe and realize sprinkler wagon uniform recycling.
Meanwhile water in the PE pipe run to spray gun by pressure, and realize irrigation.
The hose reel irrigation system is used in different areas of water saving irrigation projects.
Advantages
1. Simple structure and easy operation, just need by 1-2 persons.
2. High efficiency, sprinkling covering 360°.
3. Highly automatic, irrigation and pipe rewind both by itself.
4. Irrigate uniform, good effect.
5. Atomization, not hurt seedling, flower and fruits.
Technical parameter
Basic Unit |
Model |
PE-Pipe dia. |
PE-pipe Length |
Max. strip length |
Water flow (m3/h) |
Nozzle Dia(mm) |
Connection pressure |
50TX |
50-150Tx |
50 |
150m |
2×180m |
7 - 16 |
11-14 |
3.5 - 7.6 |
65TX |
65-220Tx |
65 |
220m |
2×260m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
65-250Tx |
65 |
250m |
2×290m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
|
75TX |
65-340TX |
65 |
340m |
2×380m |
13 - 28 |
14 - 22 |
3.5 - 10.0 |
75-300TX |
75 |
300m |
2×345m |
13 - 38 |
14 - 26 |
3.5 - 10.0 |
|
85TX |
75-350TX |
75 |
350m |
2×390m |
13 - 38 |
14 - 22 |
3.5 - 10.0 |
75-400TX |
75 |
400m |
2×435m |
13 - 30 |
14 - 20 |
3.5 - 10.0 |
|
90-250TX |
90 |
250m |
2×300m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |
|
90-300TX |
90 |
300m |
2×350m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |

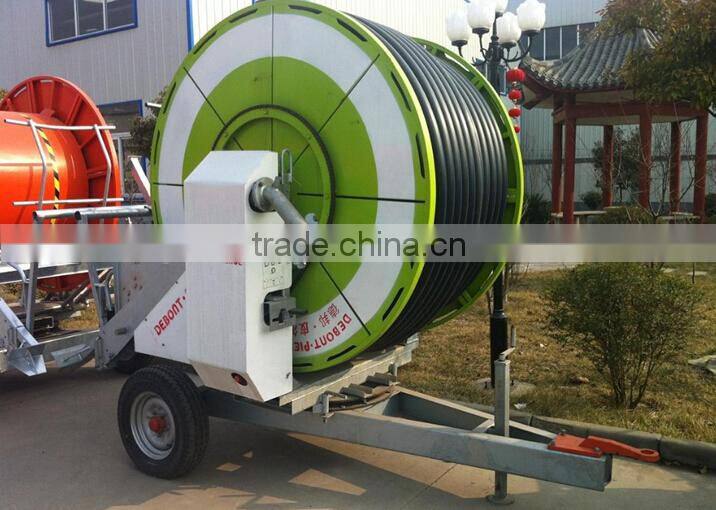

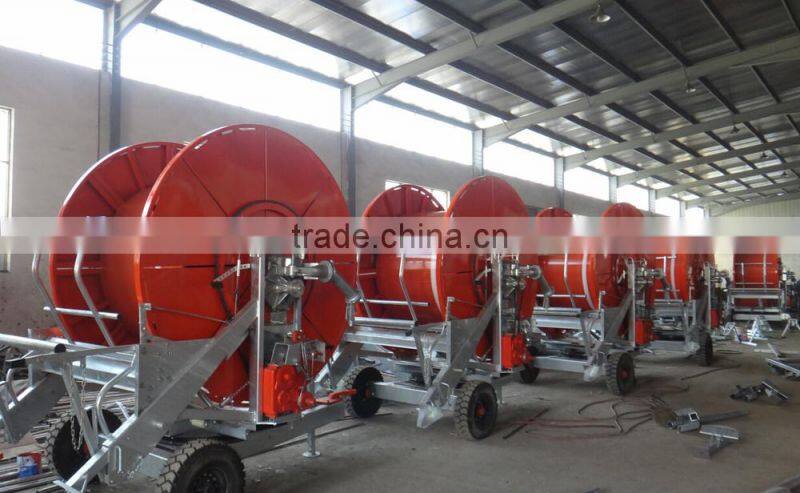

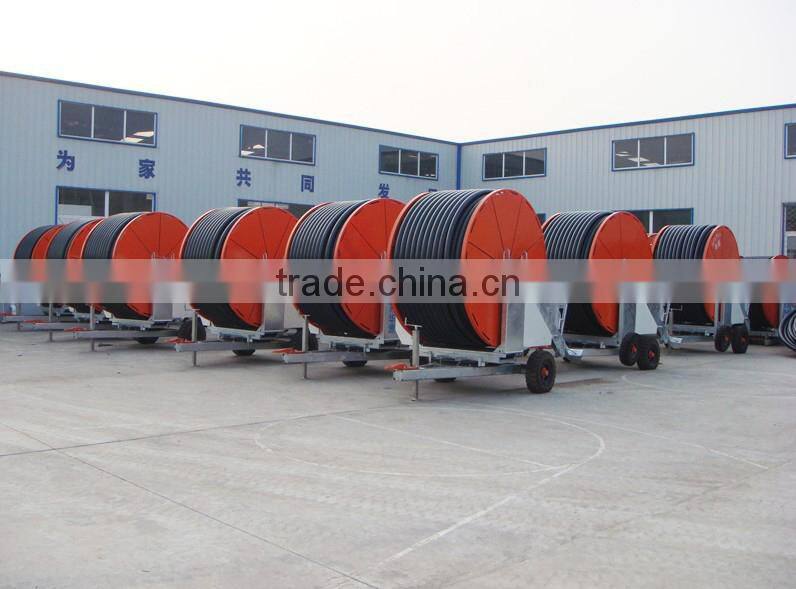

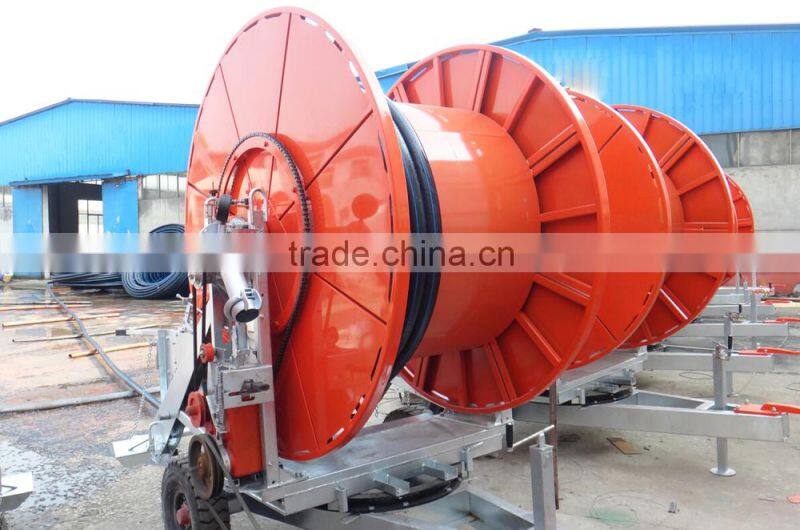

Machine pictures
1. All machine warranty: one year.
2. help to design the irrigate program.
3. Engineer overseas service available, guiding installation, testing, training workers.
4. English installation and use manual, video will delivery with machine.
5. Supply spare parts for free when warranty time.
6. Supply technical support at any time.
