Specifications
Reel irrigation system1.galvanized steel frame
2.flexible to move and storage
3.0.5-0.8Mpa pressure
4.turbine recover

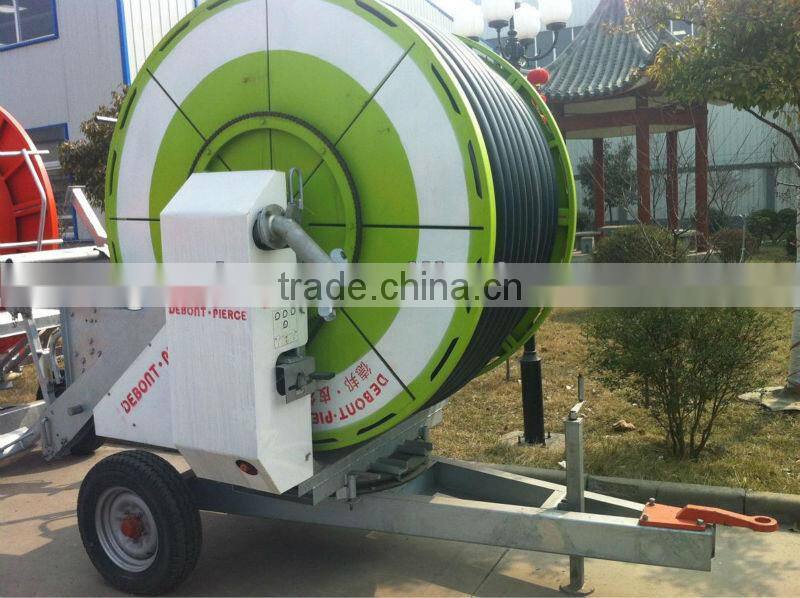

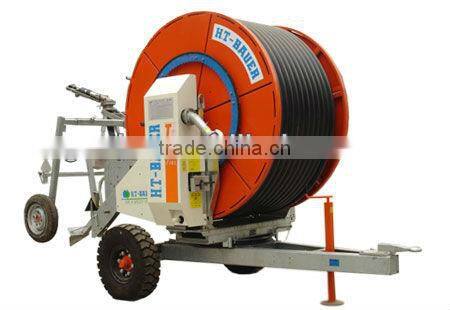

Hose reel irrigation system for watering farm land
Description
Hose reel irrigationsystem is mainly make up of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation
device and water composition.
The key components of water turbines, gearboxes, PE pipe and structural piece are in good or bad quality of the processing technology directly affects the effectiveness and use of the whole operational life.
Features
1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.
3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.
Hose Reel Irrigation System with Boom Technical Parameter:
Basic Unit |
Model |
PE-Pipe dia. |
PE-pipeLength |
Max. strip (width) |
Water flow |
Connection Pressure bar |
Nozzle No. *Dia. |
65TX |
JP65-220 |
65 |
220 |
36 |
11.41-38.3 |
3.0-7.0 |
13*4.4-7.5 |
JP65-250 |
65 |
250 |
36 |
11.41-38.3 |
3.0-7.0 |
||
75TX |
65-340TX |
65 |
340 |
36 |
11.41-38.3 |
3.0-7.0 |
|
75-300TX |
75 |
300 |
36 |
11.41-38.3 |
3.0-7.0 |
||
85TX |
75-350TX |
75 |
350 |
36 |
11.41-38.3 |
3.0-7.0 |
|
75-400TX |
75 |
400 |
36 |
11.41-38.3 |
3.0-8.0 |
||
90-250TX |
90 |
250 |
36 |
11.41-38.3 |
3.0-8.0 |
||
90-300TX |
90 |
300 |
36 |
11.41-38.3 |
3.0-8.0 |

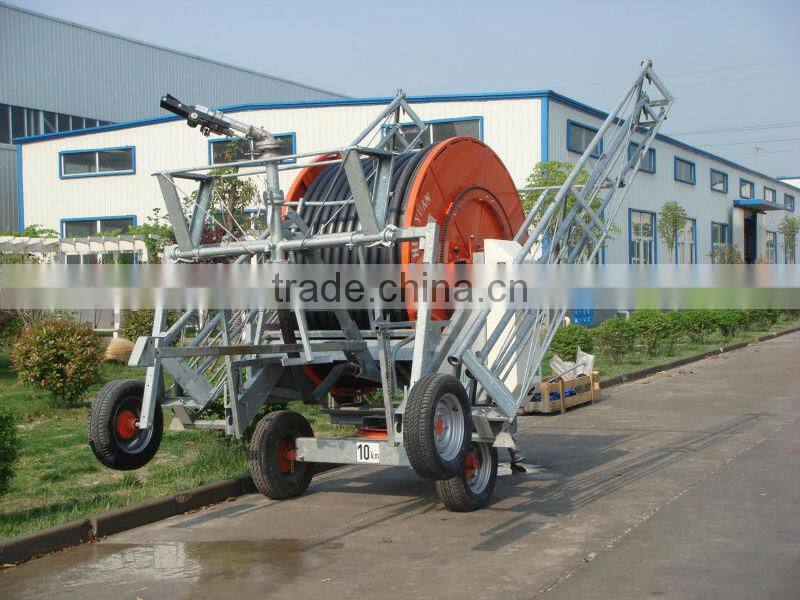

Boom Parameters:
Boom length |
26m |
Covering width |
36m |
Water flow |
13-60m3/h |
Pressure |
0.3-1.00Mpa |
Nozzle dia. |
4.4-7.5mm |
Working pressure |
0.10-0.20Mpa |
Sprinkling range |
1.0-5.5m |
Rainfall |
8-50mm |
The boom adopts stainless steel pipe, length is 26m.
Can use the AS26m boom cantilever type if the plant request small rainfall.
With the advantage of lower pressure, smaller water-drop, higher water distribution uniformity, small influence for wind.

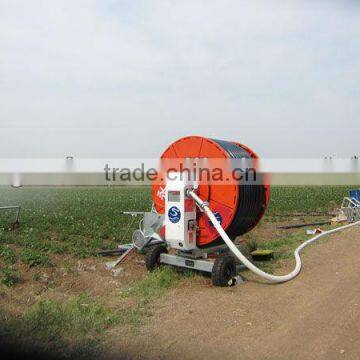

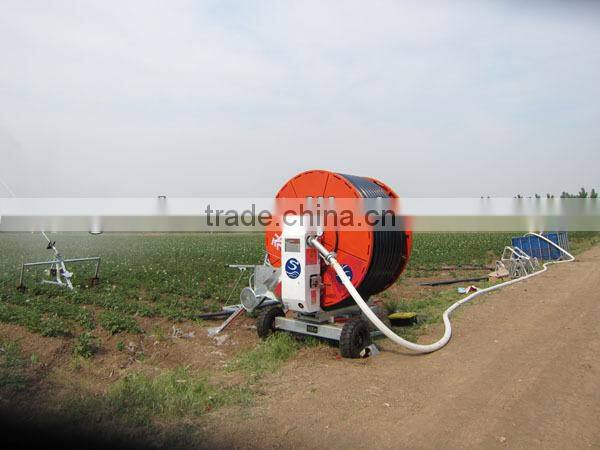

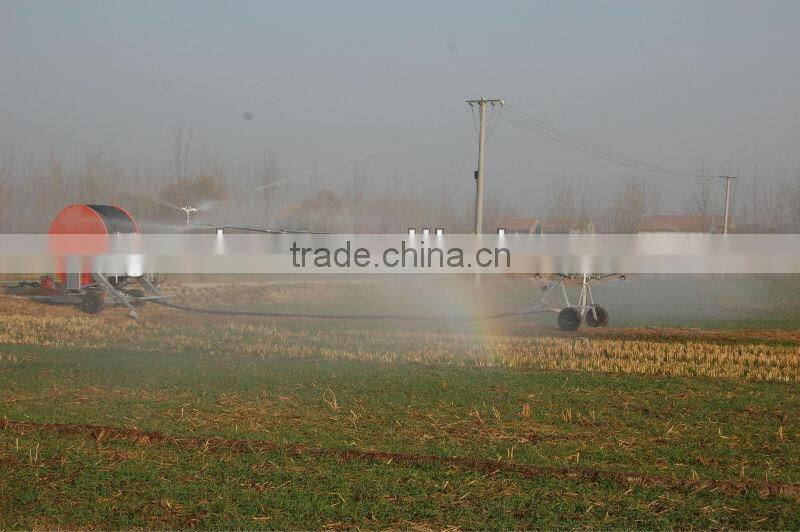

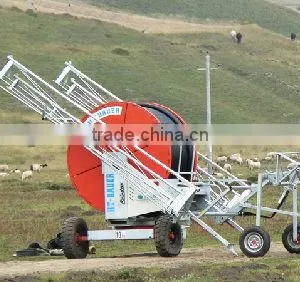

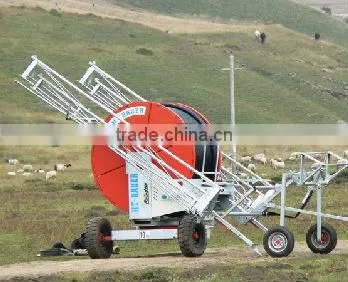

Working photos:

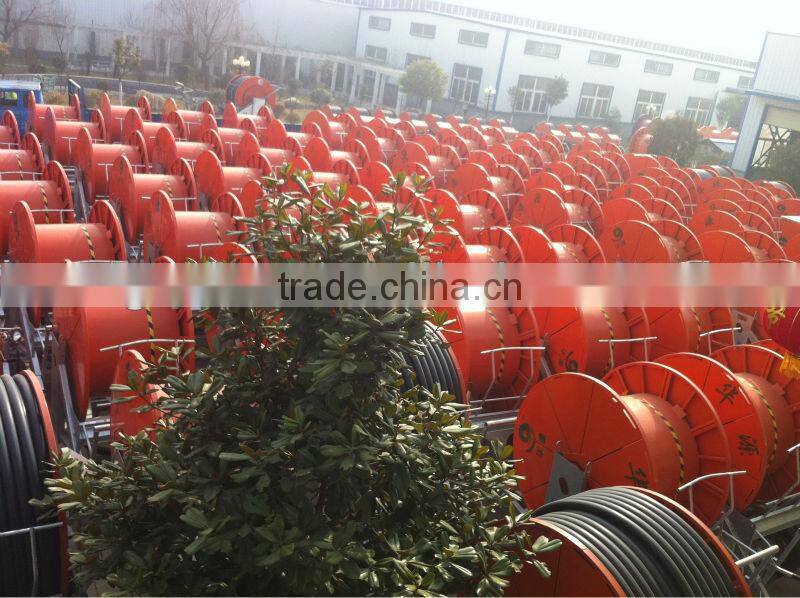

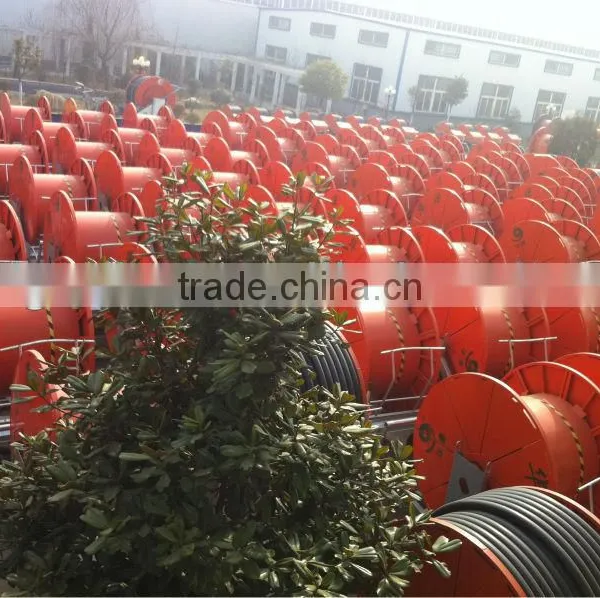

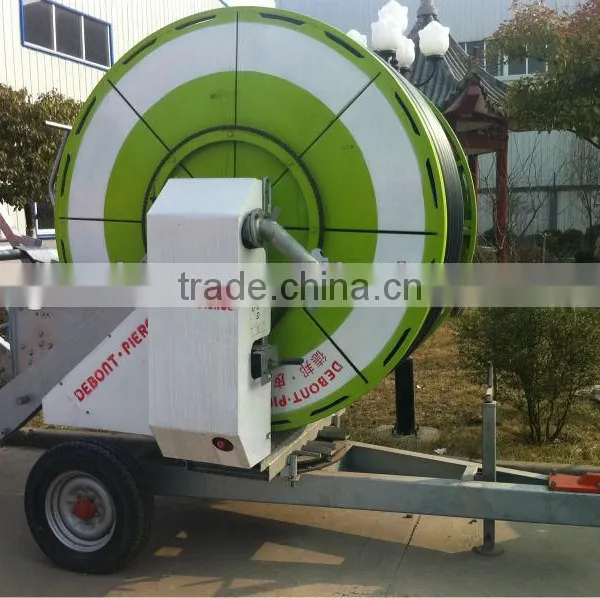

Production photo:
JP50-150, JP65-200, JP65-300, JP75-300m, 75-400m, 90-300m are hot-selling now!
Welcome to visit our factory!
Contact us immediately for working video and quotation!
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
