China New Middle Farm Tractor, 50/55/60HP 4WD With ROPS, Sunshade

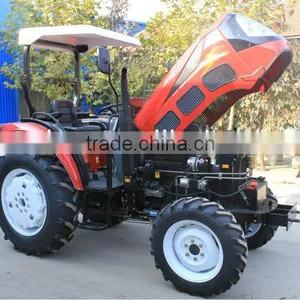

China New Middle Farm Tractor, 50/55/60HP 4WD With ROPS, Sunshade thumbnail-1

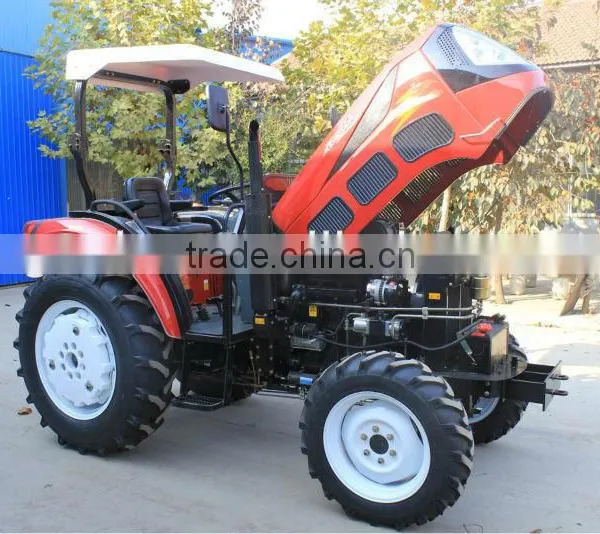

China New Middle Farm Tractor, 50/55/60HP 4WD With ROPS, Sunshade photo-1
US$ 2,100 - 8,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Gooler International Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate EPA
Brand Name HS brand
Model Number HS554/HS504/HS604
Place of Origin Shandong, China

Specifications

1.farm tractor,4WD tractor
2.8F+8R
3.rops,sunshade
4.Dual stage cluth,Shuttle gear
5.plough,harrow,loader,backhoe etc

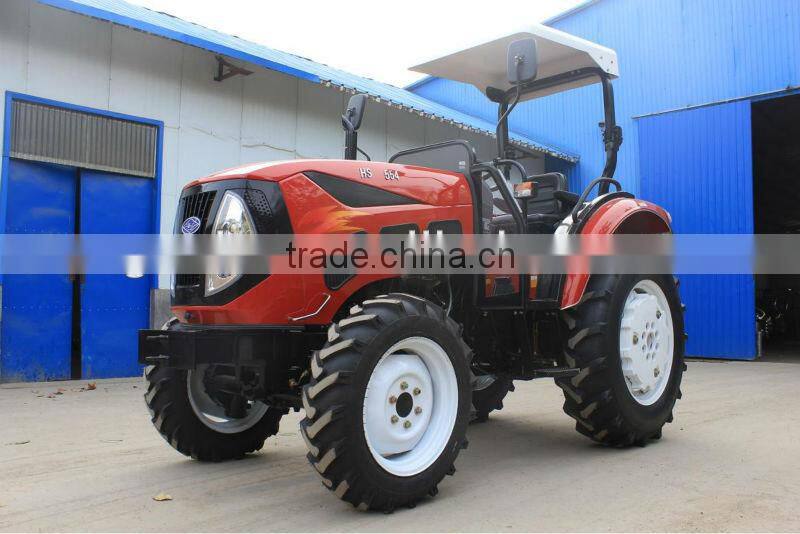

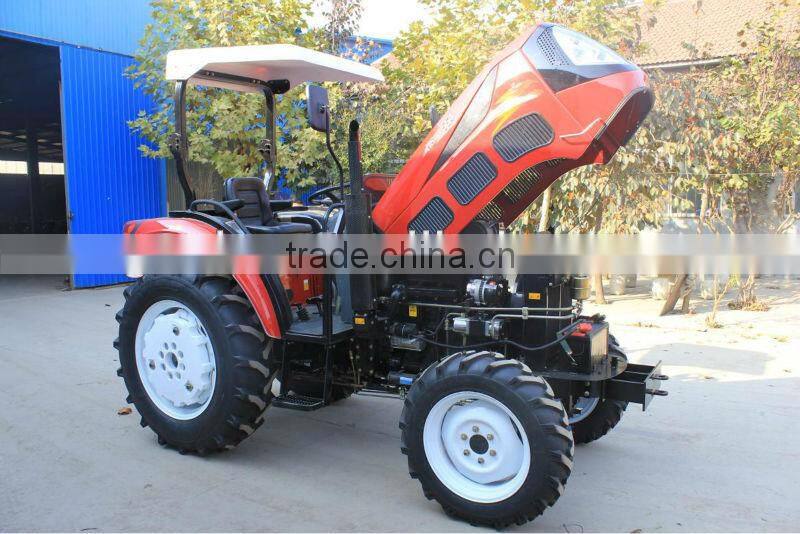

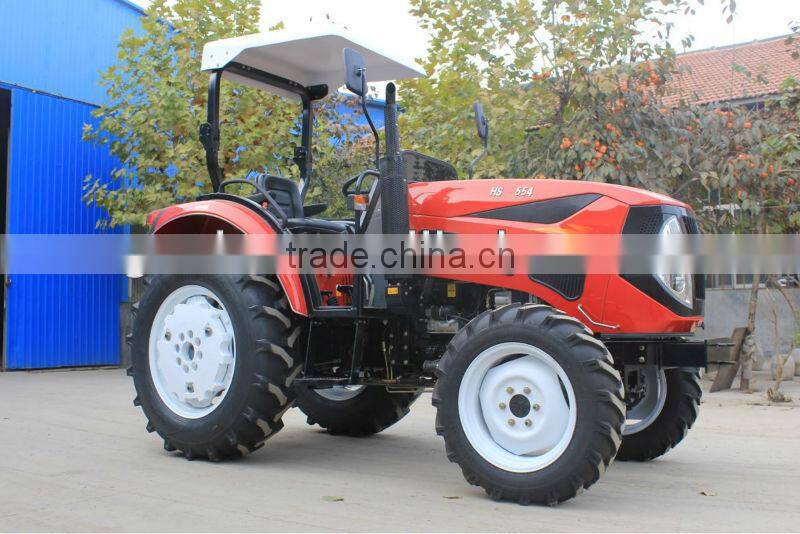

Introduction of High quality Farm tractor,HS554, 55HP, 4WD with rops, sunshade



Advantages and Characteristics of 50/55/60 series tractor:

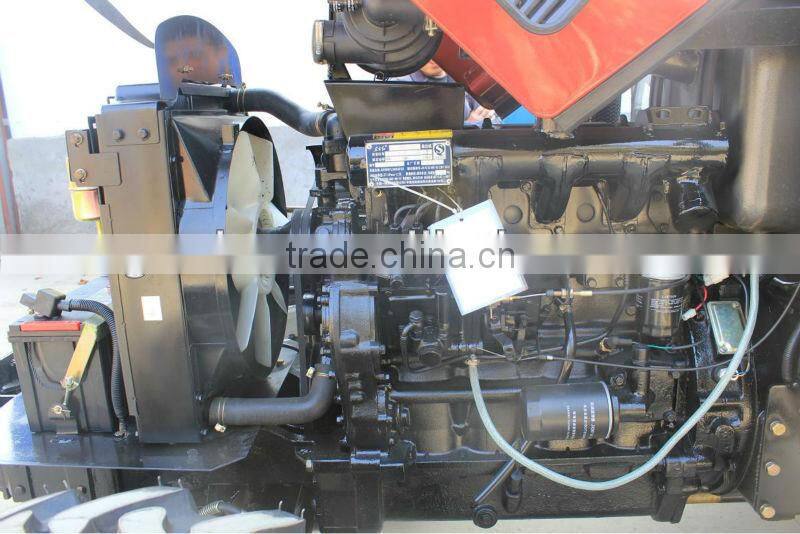

1. Equipped with famous brand engine, with good performance, low fuel consumption and high economic efficiency.



2. Streamlined appearance with novel design.

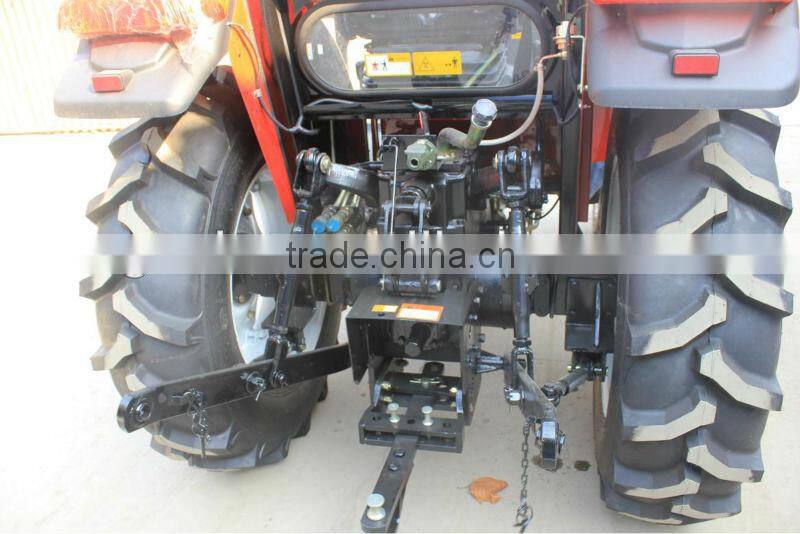

3. 6 or 8 spline PTO( Power Take Off).



4. Rotation speed of PTO: 540/1000r/min.



5. Can be equipped with ROPS, canopy, cabin, front/rear ballast, loader, and so on;



6. Tire size: front tire 8.3-20, rear tire 13.6-28.

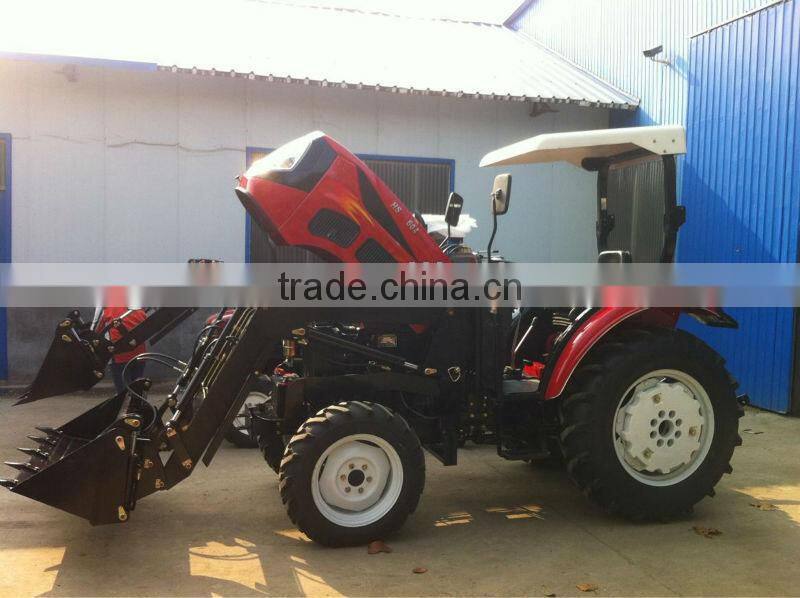

7.Can match implements such as Front end loader, Backhoe, Plough, Harrow, Trailer, snow blower, and so on.



China new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshadeChina new middle farm tractor, 50/55/60HP 4WD with ROPS, sunshade



Main Technical Data of Farm Tractor HS554



      Item

Unit

Design value

Overall unit

Brand

/

Haishan

Model

/

HS554

Type

/

4*4 4WD

Overall dimensions W*D*H

mm

3850×1650×2325

Wheelbase

mm

2040

Tire tread (front/rear wheel) adjustment way

/

Non-tunable/overturn plate

Minimum ground clearance (position from the site)

mm

325 (Steering tie rod)

Min service mass

kg

2280

Front / rear axle weight

kg

1030/1250

Weight distribution (front/rear, max)

kg

150/200

Gear number (forward/reverse/crawling)

/

8/8/0

Theoretical velocity of each gear

Low 1

Low reverse1

km/h

2.57

2.30

Low 2

Low reverse2

3.73

3.33

Low 3

Low reverse3

5.09

4.54

Low 4

Low reverse4

8.14

7.27

High 1

High reverse1

13.00

11.61

High 2

High reverse2

16.62

14.84

High 3

High reverse3

25.88

23.11

High 4

High reverse4

36.32

32.43

Connection way of engine and clutch

/

Direct connection

Start-up way

/

Electrical start-up

The output power of PTO shaft

KW

36.5

Maximum traction force

KN

9.98

Cab or safety

frame

Model

/

/

Type

/

/

Engine

Brand

/

YTO
