Home > Products > Front End Loader > 40HP/55HP Tractor with front end loader, 4in1 bucket

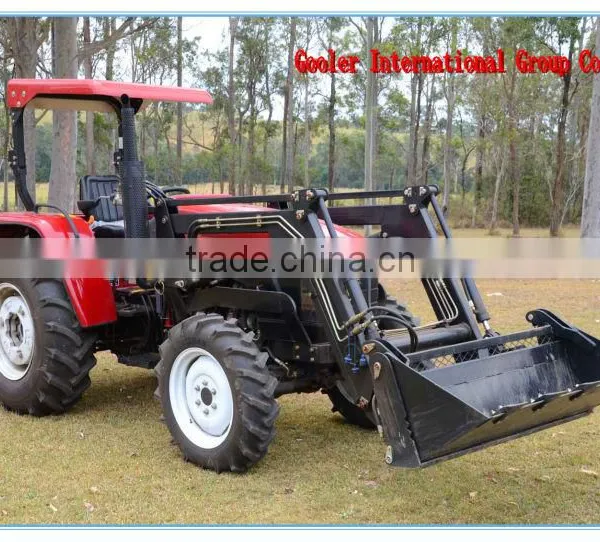

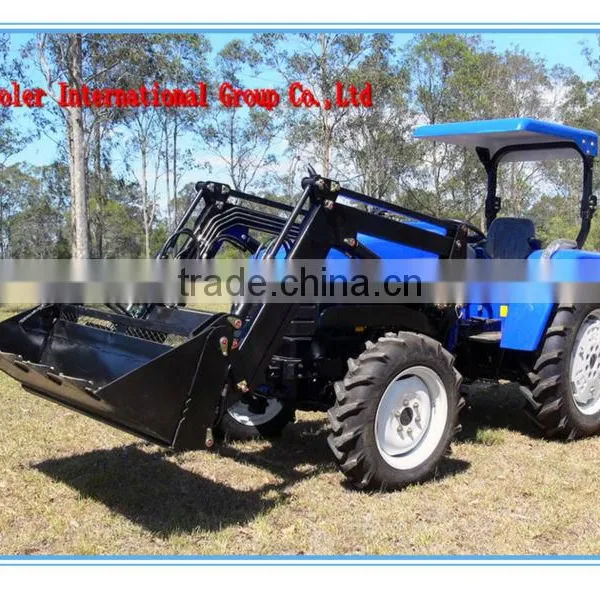

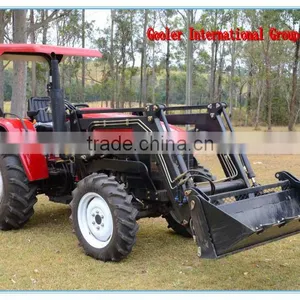

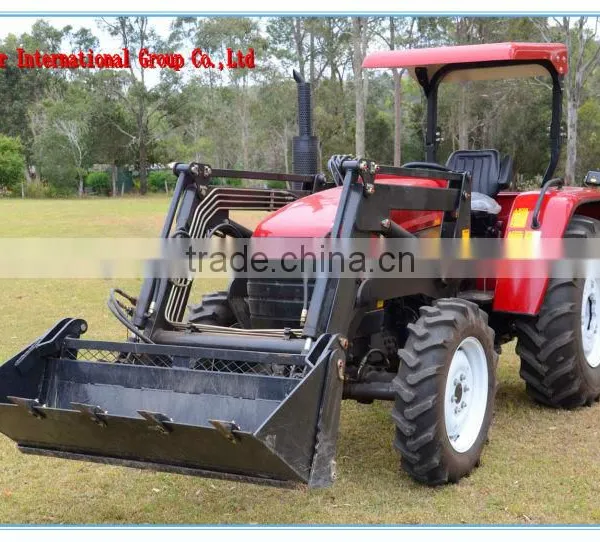

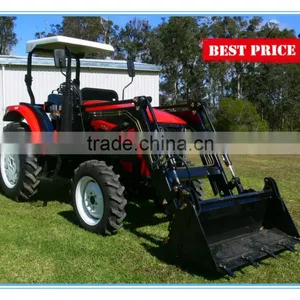

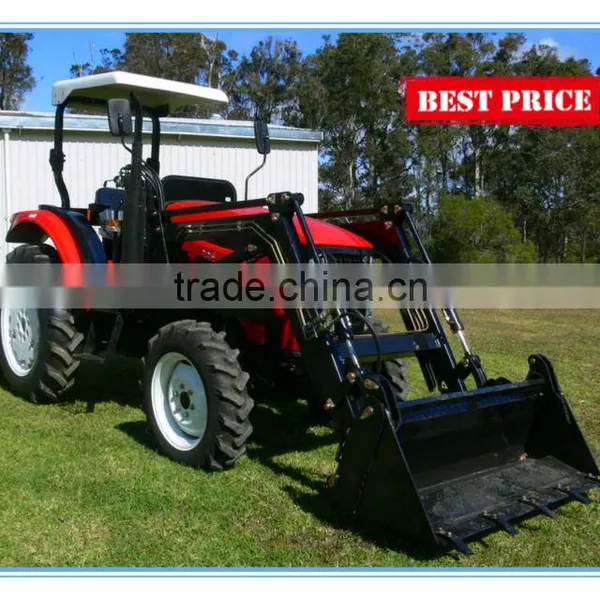

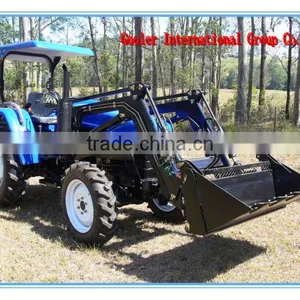

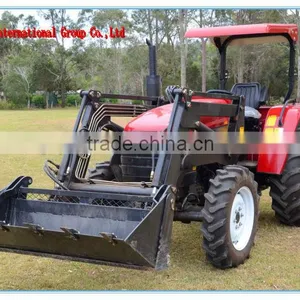

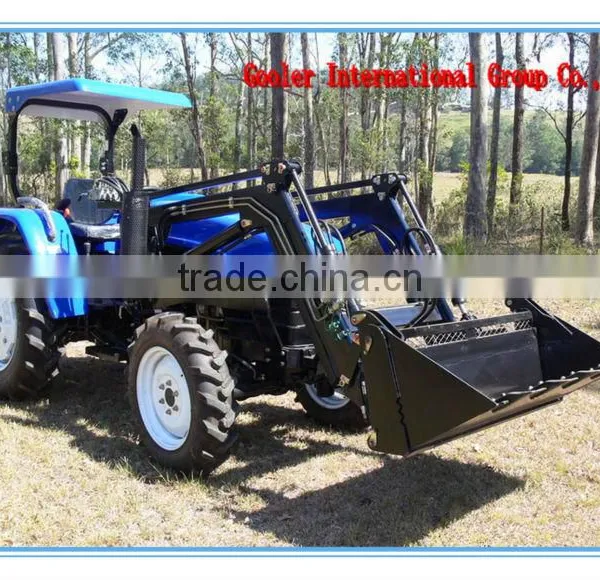

40HP/55HP Tractor with front end loader, 4in1 bucket
- 3 Unit / Units per Month
- Qingdao/Shanghai port
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 36.9kw |
Certificate: | CE | Brand Name: | LZ brand | Model Number: | LZ404/LZ554 |
Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. TZ04D loader Matching power 40HP-55HP2. 1500mm width assembled bucket
3. Rated lift capacity 600kg
5. Capacity 0.35CBM
LZ404/LZ454 4x4 compact tractor with front end loader, excavator
1. Front end loader:
Specifications:
front end loader for tractor
Matching power 16hp-150hp
1.2-2.1m width Bucket
Assembled bucket
3 linkage control
TZ series front end loader for tractor 16hp - 150hp
-Standard level lift.
-Perfect painting and finishing in details.
-Special requests on the the size of bucket are available
-Quick release bracket and it is very easy for installation.
-Quick release attachment which can work with others Extensive implements
-4 in 1 Bucket, Pallet Fork , Bale Clamp and Wood Grapple are available on it.
-Adopt Germany technical and with CE certificate
Front end loader Main Characters Summary
-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.
-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
Model | TZ03D | TZ04D | TZ06D | TZ08D | TZ10D |
Tractor model | 254/284/304/354 | 404/454/504/554 | 604/654/754 | 804/854/904/954 | 1004/1104/1204 |
Height-measured at arm pivot point (mm) | 2700 | 2800 | 3100 | 3080 | 3160 |
Max. dump height (mm) | 2000 | 2100 | 2300 | 2350 | 2500 |
Dump distance (Max. dump height) (mm) | 800 | 900 | 1100 | 1100 | 1150 |
Dump angle (°) (Max. dump height) (mm) | 42~45 | 42~45 | 42~45 | 42~45 | 42~45 |
Distance to the centre of front-wheel (mm) | 1900 | 1900 | 2300 | 2400 | 2450 |
Rollback angle on ground (°) | 32 | 32 | 34 | 34 | 35 |
Max. digging depth (mm) | 140 | 140 | 140 | 180 | 200 |
Bucket width (mm) | 1400 | 1500 | 1600 | 1700 | 1800 |
Bucket capacity (m3) | 0.21 | 0.35 | 0.43 | 0.48 | 1 |
Rated lift capacity (Kg) | 350 | 600 | 700 | 1000 | 1200 |
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
