Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > Front End Loader for Tractor

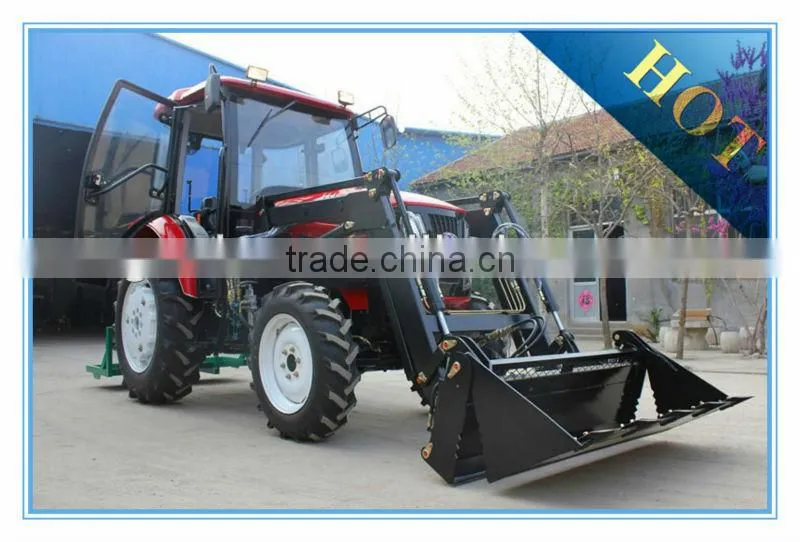

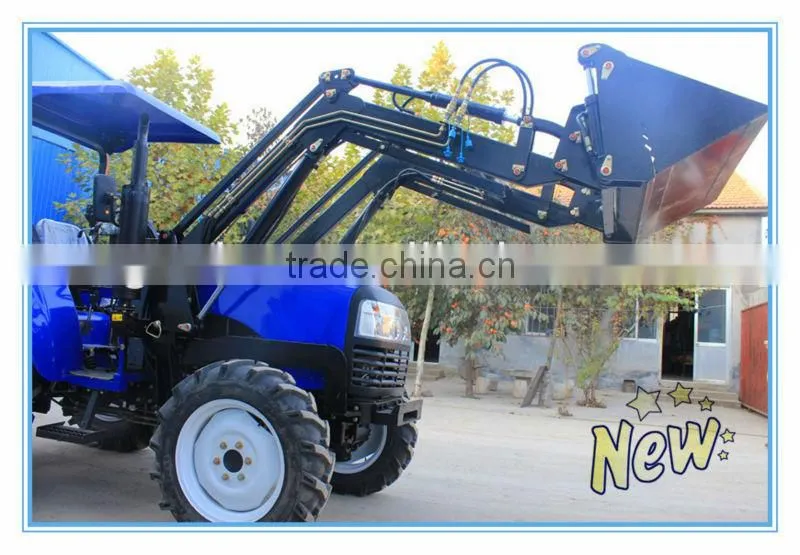

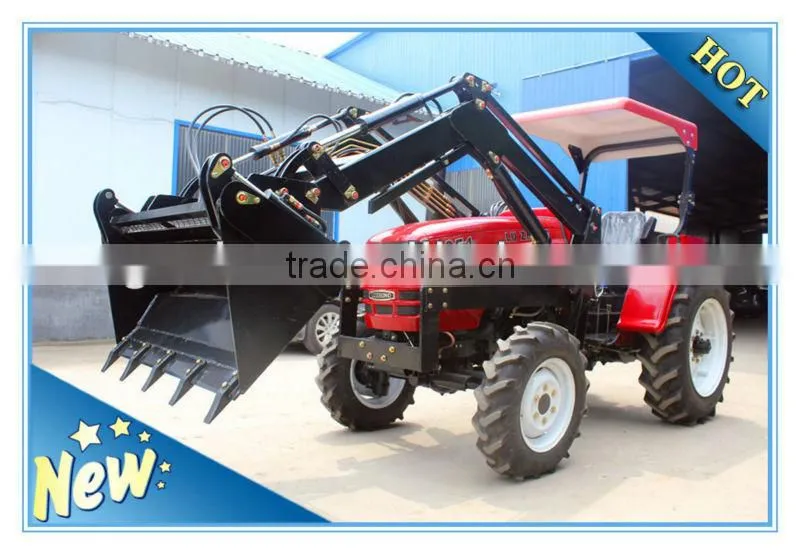

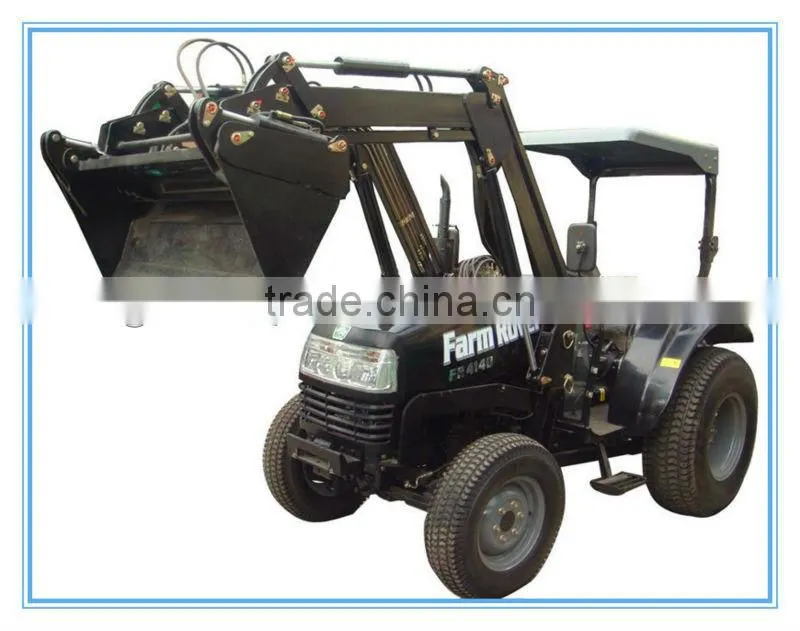

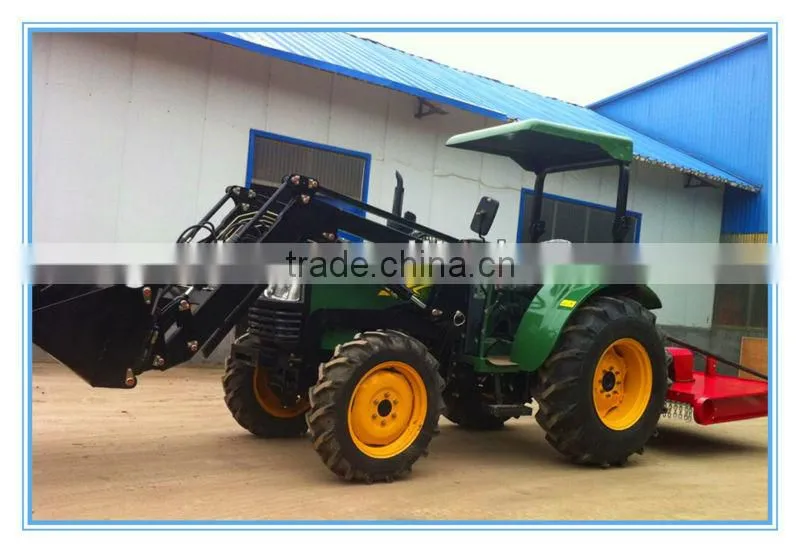

Front End Loader for Tractor

US$ 1,900 - 3,200 MOQ: 1 Unit

Key Specifications

Get Latest Price

Type:

Tractor implements

Use:

Certification:

Contact Supplier Request Quote Chat Now

Gooler International Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao / Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Tractor implements

Use loading

Certification CE

Place of Origin Shandong, China

Brand Name TS

Model Number TZ

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.16-150HP, 4WD tractor
2.1.2-2.1m width Bucket
3.Quick release
4.Assembled loader, pallet fork, log grapple, bale clamp

Specifications:

Front end loader for tractor

Matching power 16hp-150hp

1.2-2.1m width Bucket

Assembled bucket

3 linkage control

TZ series front end loader for tractor 16hp - 150hp advantage:

-Standard level lift.

-Perfect painting and finishing in details.

-Special requests on the the size of bucket are available

-Quick release bracket and it is very easy for installation.

-Quick release attachment which can work with others Extensive implements

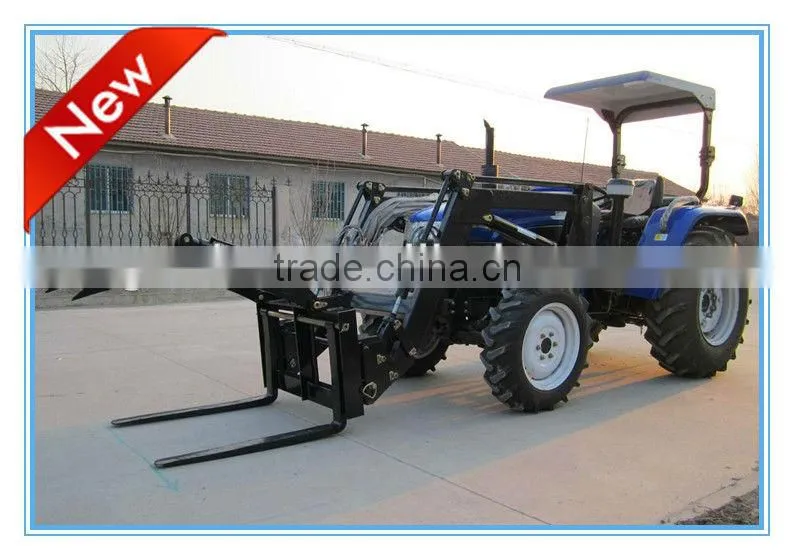

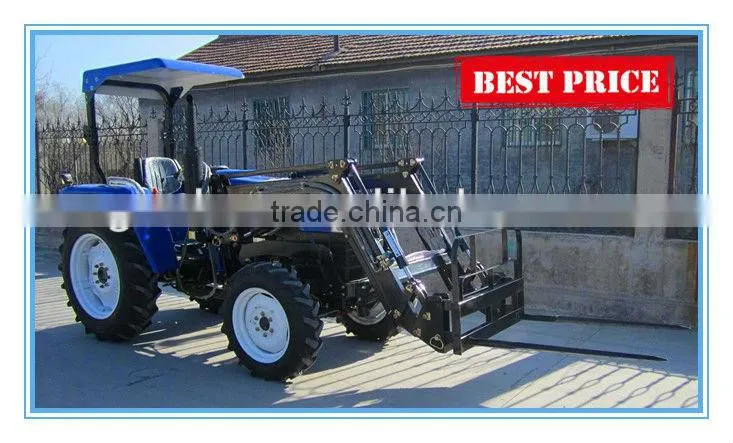

-4 in 1 Bucket, Pallet Fork , Bale Clamp and Wood Grapple are available on it.

-Adopt Germany technical and with CE certificate

Front end loader Main Characters Summary

-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.

-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil

commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.

-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork,

etc, so as to accomplish different kinds of work successfully.

Tractor Front end loader Specifications

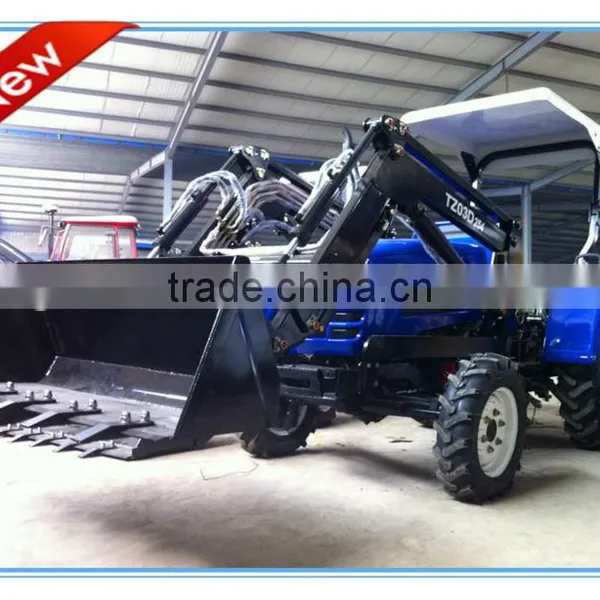

Model	TZ03D	TZ04D	TZ06D	TZ08D	TZ10D
Tractor model	254/284/304/354	404/454/504/554	604/654/754	804/854/904/954	1004/1104/1204
Height-measured at arm pivot point (mm)	2700	2800	3100	3080	3160
Max. dump height (mm)	2000	2100	2300	2350	2500
Dump distance (Max. dump height) (mm)	800	900	1100	1100	1150
Dump angle (°) (Max. dump height) (mm)	42-45	42~45	42~45	42~45	42~45
Distance to the centre of front-wheel (mm)	1900	1900	2300	2400	2450
Rollback angle on ground (°)	32	32	34	34	35
Max. digging depth (mm)	140	140	140	180	200
Bucket width (mm)	1400	1500	1600	1700	1800
Bucket capacity (m3)	0.21	0.35	0.43	0.48	1
Rated lift capacity (Kg)	350	600	700	1000	1200
