China High Pressure Belt Driven Water Pump

Weifang CP Machinery Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Model Number:

3ZB44-5ZB175

Theory:

Reciprocating Pump

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Brand Name CP

Model Number 3ZB44-5ZB175

Theory Reciprocating Pump

Structure Piston Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Maritime

Specifications

high pressure belt driven water pump
1.the pressure from 8 MPa to 45MPa,
2.the flow from 49.8L/min to 1666L/min,
3.the model

triplex plunger high pressure belt driven water pump main specifications

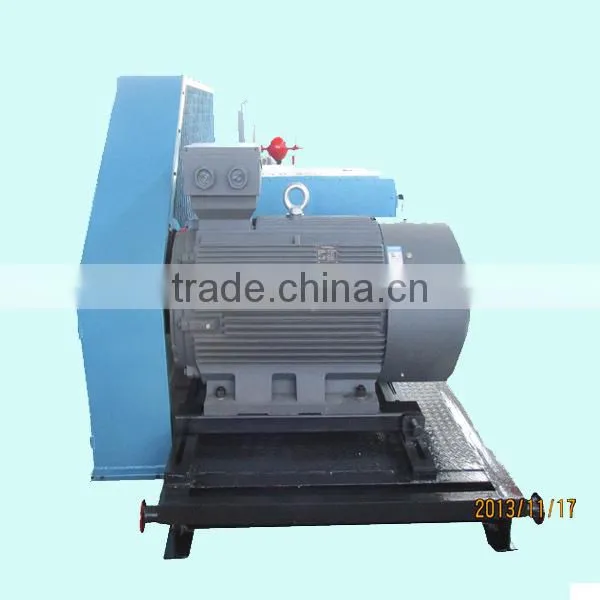

The pump is main made up of the Fluid end and Power end and Moter.

The whole pump is a skid-mounted structure it is used for easy mobile operations.

The pressure from 8MPa to 45MPa.

The flow from 51L/min to 1666L/min.

Now we produce the 3ZB44series, 3ZB75series, 3ZB127series ,5ZB127series,5ZB175series and so on.

We can be customized according to customer requirements for the high pressure pump.

Technical Parameters:

3ZB44 series high pressure plunger water injection pump main specifications



Input media		clean water,sewage
Medium temperature(°C)		<80°C
Suction pressure(Mpa)		0.3-1.0
Rated discharge pressure	Mpa	10	11	13	17	20
	Bar	100	110	130	170	200
Rated flow	m³/h	6.3	5.6	4.8	3.5	3.1
	l/min	105	93.3	80	58.3	51.6
Theoretical flow	m³/h	7.5	6.7	5.7	4.2	3.7
	l/min	125	111	95	70	61.6
Plunger diameter(mm)		40	38	35	30	28
Stroke length (mm)		44
Pump speed (r/min)		750
Pump efficiency %		>89
Moter	Type	Y2-280S-8
	Power	37kw
	Speed	750r/min
	Voltage	380v
Entrance diameter(mm)		φ48×4
Outlet diameter(mm)		φ46×8
Overall dimension(mm)		2000×600×700
Overall weight(kg)		1300

3ZB127 series high pressure plunger water injection pump main specifications



Input media		Clean water,sewage
Medium temperature(°C)		<80°C
Suction pressure(Mpa)		0.3-1.0
Rated discharge pressure	Mpa	40	34	27	22	16
	Bar	400	340	270	220	160
Rated flow	m³/h	8.2	9.6	12.1	15	19.5
	l/min	136.7	159.3	200.8	249	323.7
Theoretical flow	m³/h	9.1	10.6	13.5	16.6	21.6
	l/min	151.7	175.9	224.1	275.5	358.5
Plunger diameter(mm)		37	40	45	50	57
Stroke length (mm)		127
Pump speed (r/min)		370
Pump efficiency %		>89
Moter	Type	YF2-315S-4
	Power	110kw
	Speed	1480r/min
	Voltage	380v
Entrance diameter(mm)		φ114×4
Outlet diameter(mm)		φ61×11
Overall dimension(mm)		3460×1886×1760
Overall weight(kg)		4500

5ZB175 series high pressure plunger water injection pump main specifications



Input media		Clean water,sewage
Medium temperature(°C)		<80°C
Suction pressure(Mpa)		0.3-1.5
Rated discharge pressure	Mpa	45	36	30	23	15
Rated discharge pressure	Bar	450	360	300	230	150
Rated flow	m³/h	20.2	24.9	31.2	39.5	60.5
Rated flow	l/min	336.7	415	520	658.3	1004.3
Theoretical flow	m³/h	23.7	29.3	36.7	46.5	71.2
Theoretical flow	l/min	395	488.3	611.7	775	1182.7
Plunger diameter(mm)		45	50	56	63	78
