PCD Diamond Wire Drawing Dies

PCD Diamond Wire Drawing Dies thumbnail-1
PCD Diamond Wire Drawing Dies thumbnail-2
PCD Diamond Wire Drawing Dies photo-1

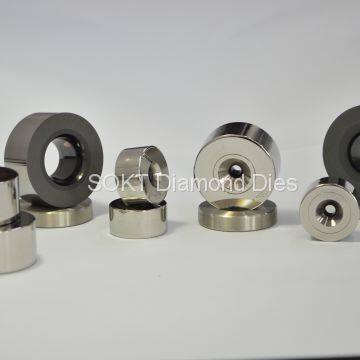

PCD Diamond Wire Drawing Dies photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2000
Factory Size:
50,000-100,000 square meters
Contact Supplier Request Quote Chat Now
SOKT Diamond Dies
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Introduction:

PCD dies can be applied in almost any wire drawing operation from rod size to fine size wire with long span life and good quality. The randomly oriented sintered diamond crystal structure makes these nib types stay round during use and its longevity is known to outperform both natural and synthetic single crystal diamond dies.

Benefiting from strong R&D capabilities, PCD dies that SOKT produce featured with longer life span, more accurate roundness, and excellent surface finish, which are highly recognized by our customers both at home and abroad.

Application:

Soft wire: Copper wire, aluminum wire, brass wire, gold wire, etc

Hard wire: Stainless steel wire, coated steel wire, EDM wire, tungsten wire, molybdenum wire, etc

Size Range:

0.1-25.7mm (0.0039-1.0118 inch)

Types

Applicable   size range

Standard   tolerance

Standard   cases

ND&SSCD Dies

0.012-0.030

0.0002

25×8

0.031-0.059

0.0005

25×8

0.060-0.199

0.0010

25×8

0.200-0.399

0.0020

25×8

0.400-0.899

0.0020

25×10

≥0.9

0.0030

25×10

PCD Dies

D6

0.100-0.500

0.001

25/28×10

D12

0.300-1.000

0.001

25/28×10

D15

0.600-1.500

0.002

25/28×12

D18

1.000-2.000

0.003

25/28×12

D21

1.300-3.100

0.004

25/28×12

D24

2.000-4.400

0.005

25/28×12

D27

3.300-5.800

0.007

38×22

D30

4.100-7.600

0.009

38×22

D33

6.600-12.000

0.020

51×28

D36

8.000-25.700

0.020

76×51



Product Tags: Diamond dies , wire drawing dies , PCD Dies
