Marine Power Cable/ship Power Cable

Name: Marine Power Cable/ship Power Cable
Brand: ZJNM
SKU: 138990265
Availability: InStock

US$ 1 - 50 MOQ: 100 Meters

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ZJNM

Insulation Material:

Other, EP-rubber ,XLPE ,PVC,NR/SBR

Zhenjiang Norman Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ZJNM

Insulation Material Other, EP-rubber ,XLPE ,PVC,NR/SBR

Application Marine

Conductor Material Copper

Jacket Other, pvc,polyolefin

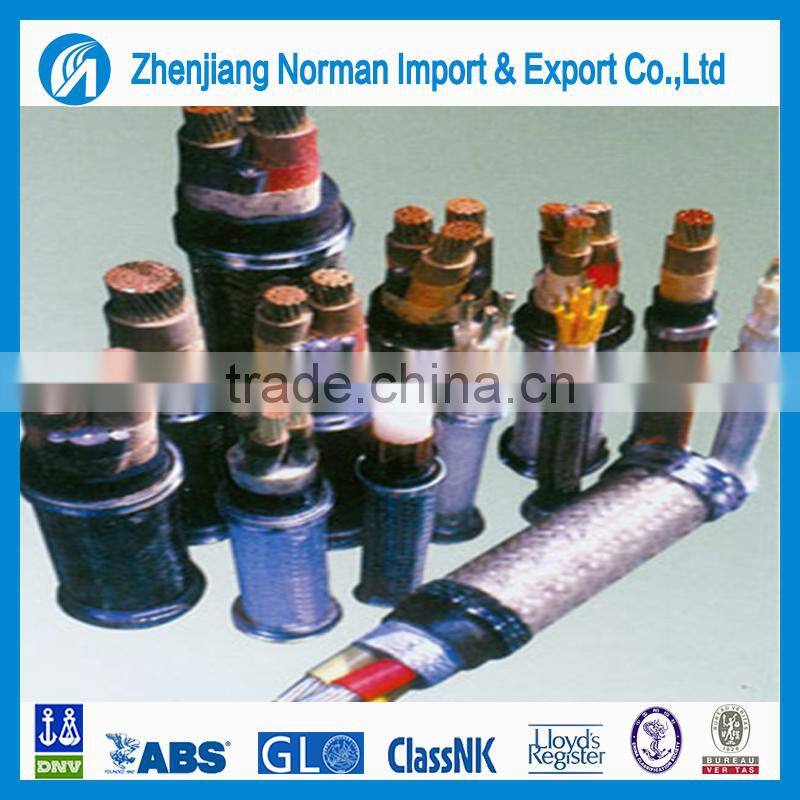

Marine power cable/ship power cable

Specification:

1.Standards implemented:IEC60092-350,IEC60092-353 or GB9331-88

2.This product is use on ships and petroleum platforms and other buildings on the sea.

Models	Combustion	Core number	(mm²) Nominal sectional area	(KV) Rated Voltage	Temp.℃
CEF,CEF80,CEF82,CE8F,CEF90,CEF92,CEFR CEH,CEH80,CEH90,CEH82,CEH92,CEHR CEV,CEV80,CEV90,CEV82,CEV92,CEVR CE8F,CE8F80,CE8F90,CE8F82,CE8F92,CE8H,CE8H80 CE8H80,CE8H90,CE8H82,CE8F92,CE82,CE8290	DA SA NA	1 2 3	1-400 2-120 3-185	0.6/1	E:85 J:85 V:80
CEPF,CEPF80,CE96,CEPF90,CEPF86,CEPF96 CEPJ,CEPJ80,CE85,CEPJ90,CEPJ85,CEPJ95	SC	4-48	1-2.5
CEF(HV)P,CEF(HV)P80,CEF(HV)P90 CEF(HV)P82,CEF(HV)P92 CJVP,CJVP80,CJVP90,CJVP82,CJVP92 CVVP,CVVP80,CVVP90,CVVP82,CVVP92	DA SA	4-48	1-2.5
CJV,CJV80,CJV90,CJV82,CJV92	DA,SA NA	1 2 3 4-48	1-130 2-120 3-185 1-2.5	-	85
CJPF,CJPF80,CJPF90,CJPF86,CJPF96,CJPJ,CJPJ80 CJPJ90,CJPJ85,CJPJ95,CYJ85,CYJ86,CYJ95,CYJ96 CYX,CYX8X,CY8X,CYX80,CYX9X	SC,NSC	1 2 3 4-48	1-130 2-120 3-185 1-2.5	-
CJPJP,CJPJP80,CJPJP90,CJPJP85,CJPJP95 CJPFP,CJPFP80,CJPFP90,CJPFP86,CJPFP96	SC,NSC	2-37	1-2.5	0.6/1
CXF,CXF80,CXF82,CXF90,CXF92,CXFR CXV,CXV80,CXV90,CXV82,CXV92	DA,SA	1 2 3 4-37	1-300 2-120 3-185 1-2.5	0.6/1	70
CVV,CVV80,CVV82,CVV90,CVV92	DA SA	1 2 3 4-37	1-300 2-120 3-185 1-2.5	0.6/1
CBV,CBVR	DA	1	0.35-0.75	0.25
CBV,CBVR	DA	1	1-95	0.6/1
CBPF,CBPJ,CBPFR,CBPJR,CBYJ,CBYJR	SC,DC	1	1-95	0.6/1	85

Product descriptions and Codes

Codes	Definition	Codes	Definition
D	Combustion for single cable	A	have smoke acidity and toxicity
S	Combustion for bunched cable	B	low smokelow aciditylow toxicity
N	Fire-proof(Combustion for single cable)	C	Halogen freelow smokelow toxicity

Codes	Insulation	Codes	Inner sheath	Codes	Armoring	Codes	Outer sheath	Codes	Charac-teristic
E	EP-rubber insulated	F	Chlorosu-lconation sheath	8	Tinned Cu wire woven	0	NO-Outer sheath	P	Line core screen
JYJ	XLPE Insulation	H	Chlorosu- lfonated polyethylene sheath	9	Galvanizes Steel wire woven	2	Polyvinyl chloride sheath	R	Soft
V	PVC Insulation	V	Polyvinyl -chloride sheath	-	-	5	Cross -linked polyolefin sheath	-	-
X	NR/SBR insulated	PF	Thermos-plasticity polyolefin sheath	-	-	6	Thermos-plasticity polyolefin sheath	-	-
-	-	PJ	Cross -linked polyolefin sheath	-	-	-	-	-	-
